Proton Products InteliSENS PD30 Instruction Manual (Issue 1a)
INTERFACE
AOP 1, 2, 3 function
Select the analogue output 1, 2, 3 function from options:
Average;
Average error.
AOP 1, 2, 3 full scale
Set the maximum measured diameter or most positive error for a +10V output voltage.
 For unipolar outputs, a zero measured diameter corresponds to a 0V output voltage.
 For bipolar outputs, the most negative measured error corresponds to a -10V output voltage.
AOP response: Instant; Average.
Instant: Analogue output voltage represents the value of each individual measurement.
Average: Analogue output voltage represents the time averaged measured value.

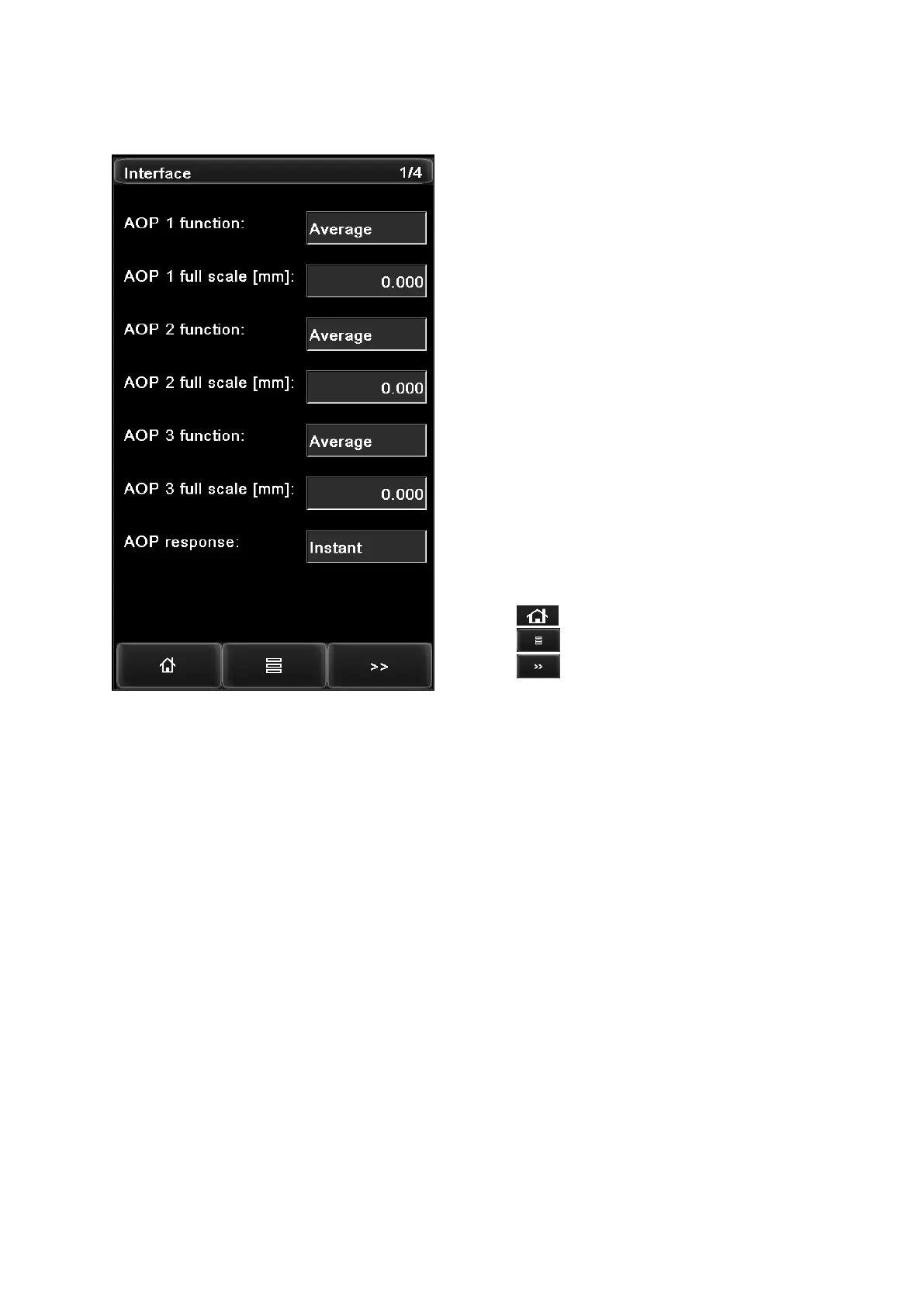

Press the Interface icon on the function menu page to
access the Interface page 1.
- Select the analogue output 1 function.
- Set the analogue output 1 full scale.
- Select the analogue output 2 function.
- Set the analogue output 2 full scale.
- Select the analogue output 3 function.
- Set the analogue output 3 full scale.
- Select the analogue output response .
Press the button to return to the home page.
Press the button to access the function menu page.
Press the button to advance to the next page.
