Proton Products InteliSENS PD30 Instruction Manual (Issue 1a)
PROFINET communications
This communications interface operates independently of the other communications interfaces and
may be used at the same time as them.
PROFINET interface

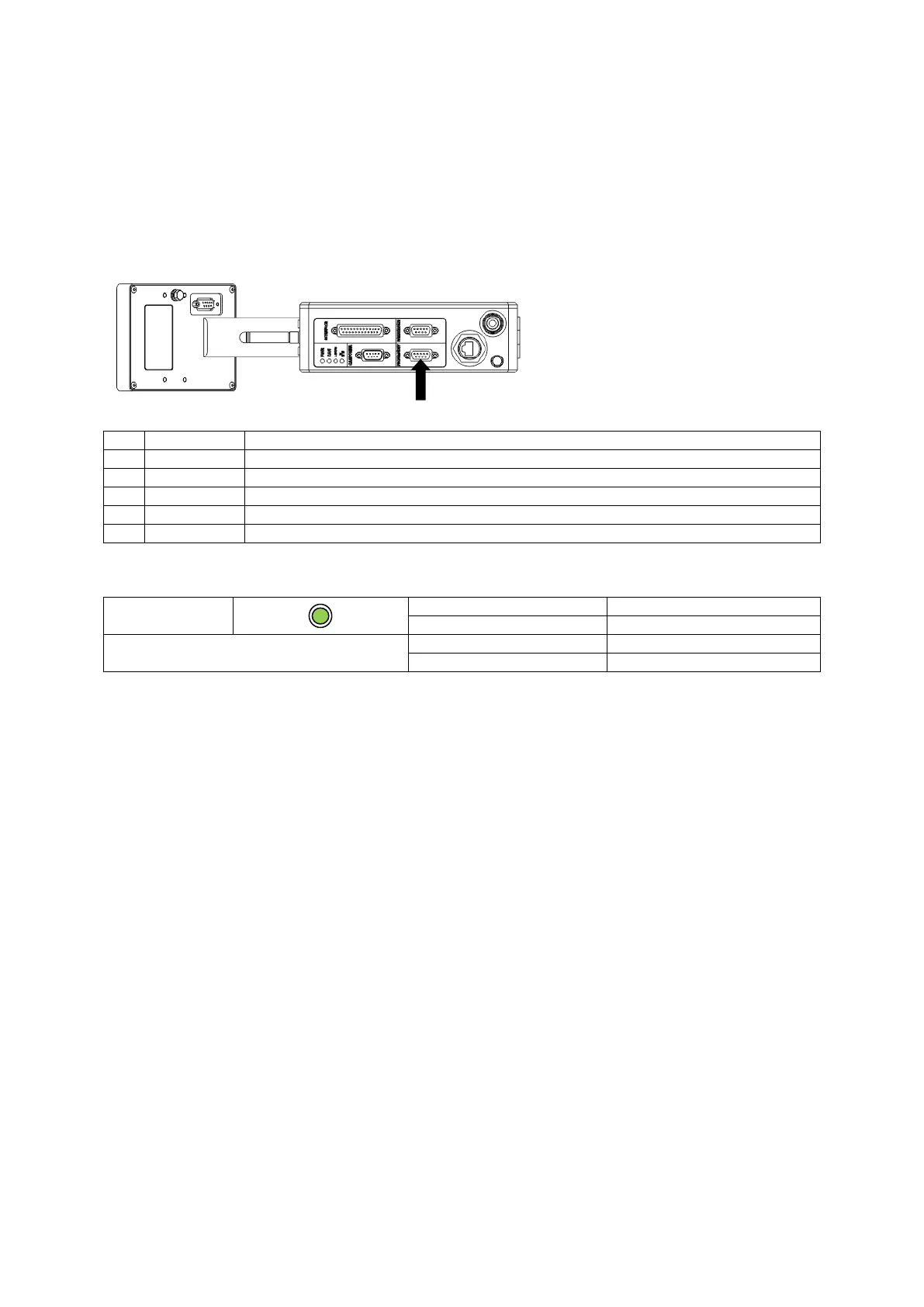

The PROFINET interface may be accessed through the “PROFI/EIP/DEV” connector.
Connector type: DB9 female (socket)
Pin
PROFINET
Comments
1
LAN TX-
2
LAN TX+
7
LAN RX-
9
LAN RX+
S
Shield
Ensure that the cable shield is connected to this via the plug shield connection.
PROFINET LED indicator
i-BUS
LED status
Indication
Continuous green
Online
PROFINET communications
Continuous red
Communication error
Extinguished
No communication
