-122 -
2
1
3
4
6
5
8
15
14
13
16
17
7
9
10
11
12
ET
-Nr.:Benennung /Designation
24150-04
-01Mitlaufende Körnerspitze /Rotating centre
24150-04
-02Pinole /Sleeve
24150-04
-03Spindel /Spindle
24150-04
-04Rändelschraube /Screw
24150-04
-05Reitstockkörper /Tailstock body
24150-04
-06Gewindestift /Set screw
24150-04
-07Scheibe /Washer
24150-04
-08Skalenring /Scale ring with spring
24150-04
-09Handrad /35mmhandwheel
24150-04
-10Griff /Grip
24150-0
4-11Hülse /Bushing
24150-04 -12Schraube /Screw
24150-04 -13Hutmutter /Cap nut
24150-04 -14Feder /Spring
24150-04 -15Gewindestift /Set screw
24150-04 -16Mutter /Nut
24150-04 -17Knebelgriff /Clamp handle

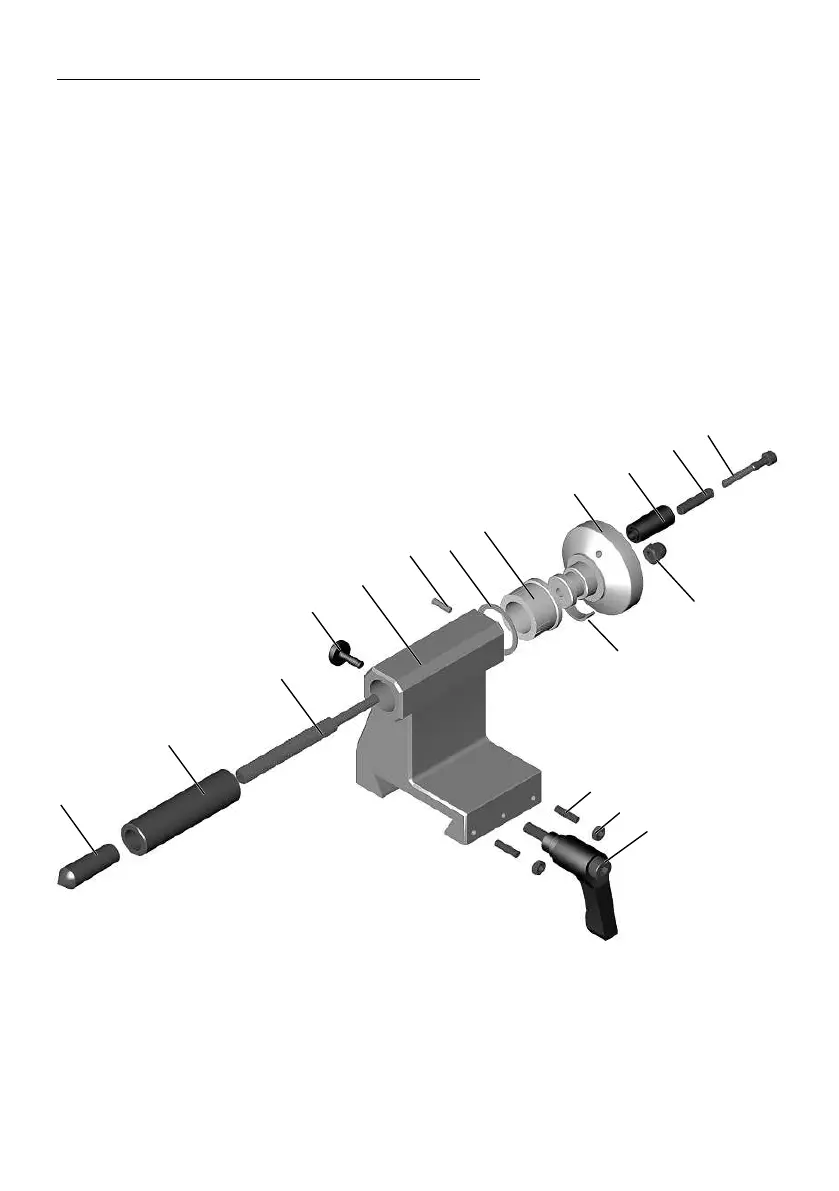

Baugruppe 04: Reitstock
