Installation and Operating Instructions
SDC 204 1316BED035-10B-E Date 12/06
- 20 -

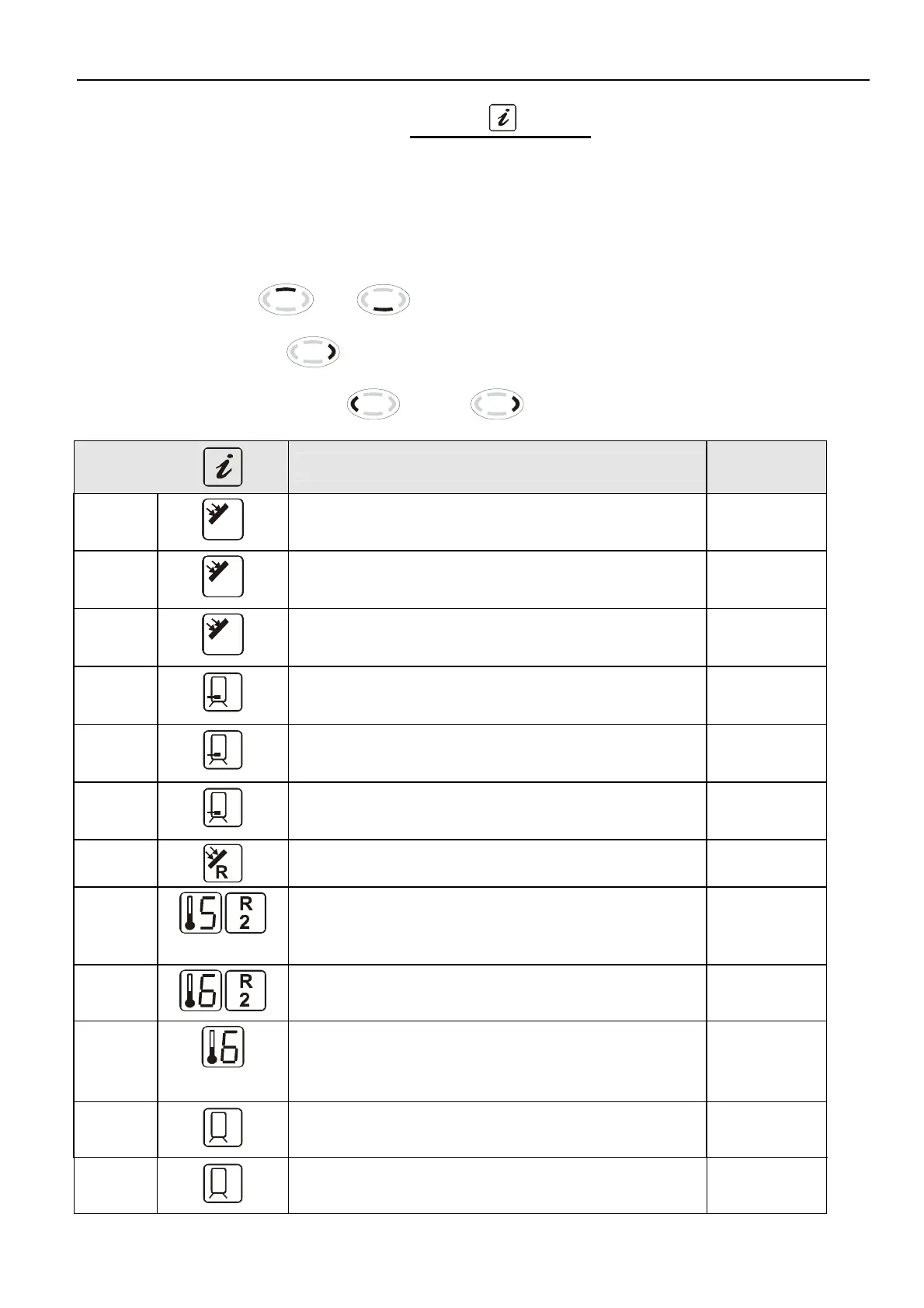

8.2 “Info” menu
In this operating mode, all measured values and operating states are displayed.
i
Only the configuration-specific symbols are displayed.
Resettable values such as minimum and maximum temperatures, daily yield and overall yield
can be reset as follows:
Select value using and buttons
Reset value using the button
Confirm “OK?” message with = no or = yes
Display
e.g.
Description
Resetable
75 °C
Current collector(1/2) temperature no
min
12 °C
Minimum collector(1/2) temperature
Resetable to the current temperature
yes
max
105 °C
Maximum collector(1/2) temperature
Resetable to the current temperature
yes
52 °C
Current storage(1/2) temperature no
min
40 °C
Minimum storage(1/2) temperature
Resetable to the current temperature
yes
max
67 °C
Maximum storage(1/2) temperature
Resetable to the current temperature
yes
60 °C
Current collector-return line temperature no
60 °C
Heating, cooling, temperature differential controller
heat source
Sensor T1...T6
no
35 °C
Temperature differential controller heat target
no
25 °C
Frost protection sensor (T1...T6)
Displays the measuring point (T6)
(not visible if not connected)
no
1234 h
Operating hours storage load
Resetable to 0 h
yes
927
kWh
Yield storage
Resetable to 0 kWh
yes
