Page | 53
Connectors of Extended temperature range battery pack:
Device - provides power connection between Monitoring Pen and the battery. This connection is necessary for Pen operation and data
download.
Serial - enables communication between Monitoring Pen and the PC for control and data transfer.
Replacement of the battery:
Follow these steps to replace the battery:

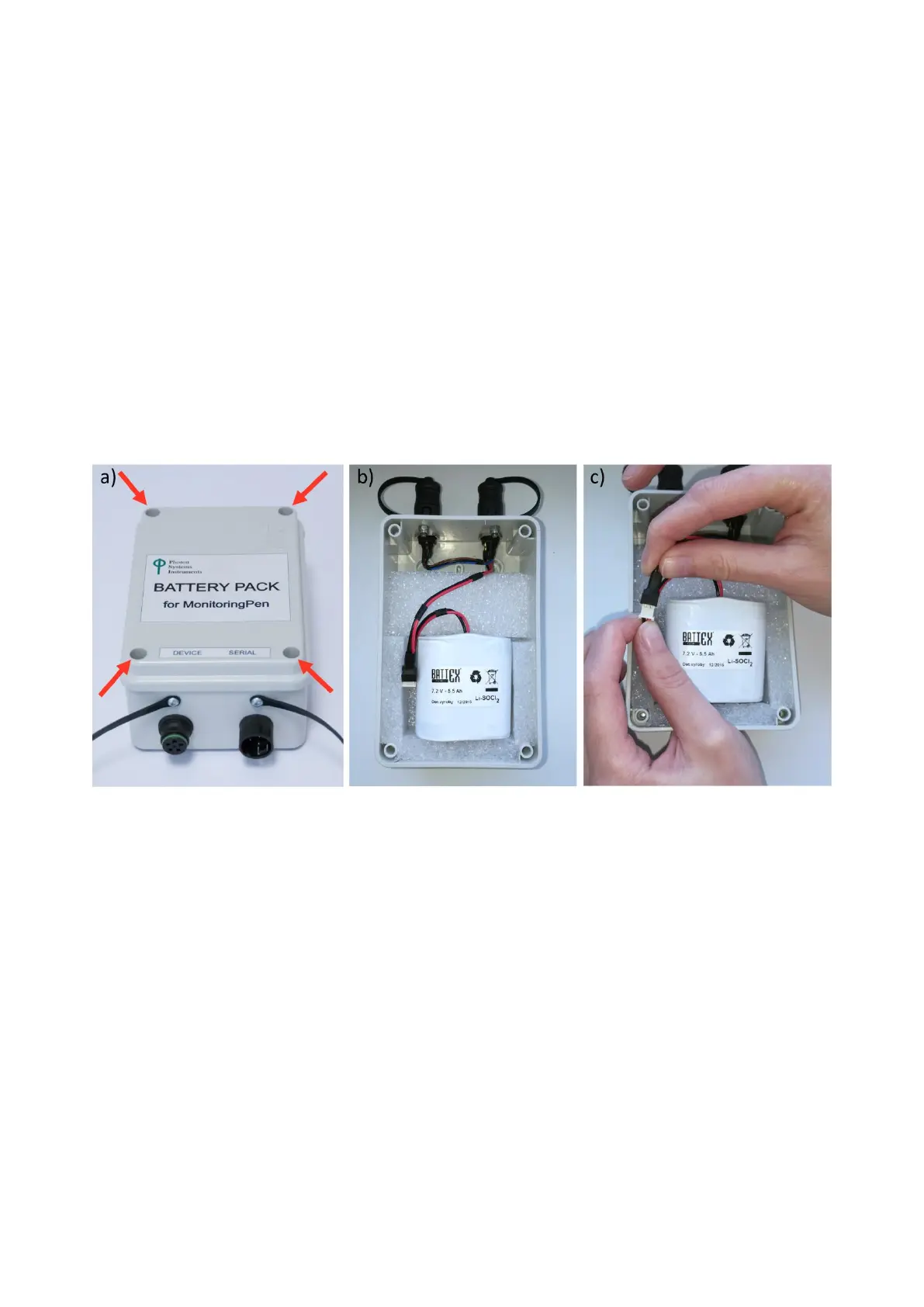

1. Remove 4 screws in the corner of the case and remove the battery pack cover (Fig. 41 a, b).
2. Disconnect the internal battery from the cable (Fig. 41 c).
3. Place the new battery inside the casing, connect it with the cable and replace the cover.
Fig. 41 Extended temperature range battery pack: battery replacement.
13.2 INSTALLATION AND OPERATION OF THE MONITORING PEN MP 100-A/B
13.2.1 DEVICE CONTROL
To turn on the device connect the serial cable to the battery pack and pc.
The device stays on when the serial cable is connected.
The Monitoring Pen automatically turn off after serial cable disconnection.
Protocol setting is possible only using Online control in the FluorPen software.
Multiprotocol serves for automated measurement of the predefined protocols in the predefined time interval. After setting and starting
of the Multiprotocol, the serial cable can be disconnected. The device switches off during the measurements automatically in order to
save the battery. The Multiprotocol measures continuously (regardless of the set Multi repeats) until the battery is discharged or the
protocol is stopped manually. More information about the Multiprotocol can be found in chapter 9.2.3.
Online control enables checking of battery status (Fig. 42). The current battery voltage is shown as measured data in FluorPen software
(Fig. 43).
