Front and Rear Features
27
Four-Port MPS1000
Figure 3-4, “Rear View 4-Port MPS1000,” shows an example of the back of a 4-port MPS1000.
The 4-port MPS1000 contains a single 4-port RTM358 in the rear of the chassis. The 4-port
RTM front panel takes up two CPCI slots (double wide).

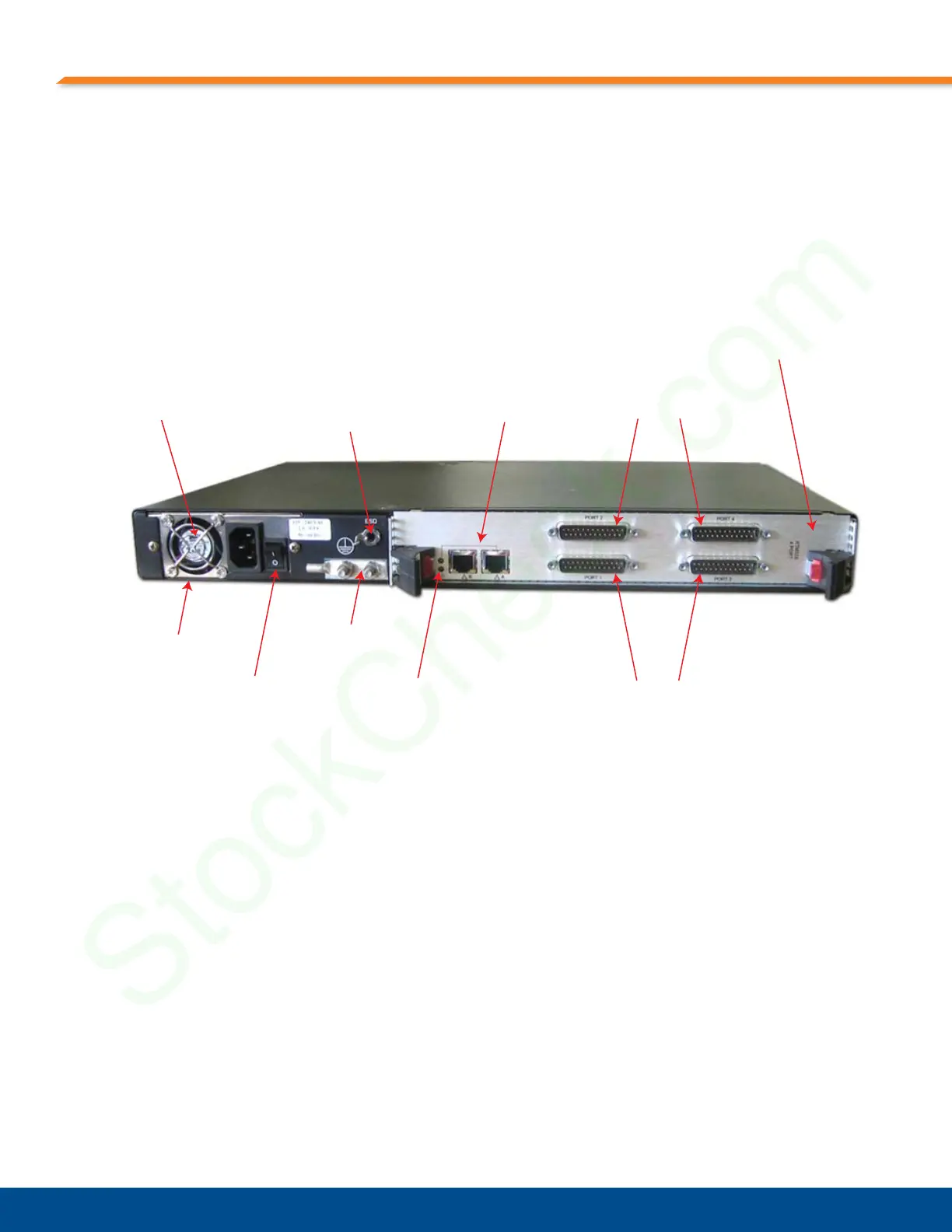

Figure 3-4: Rear View 4-Port MPS1000
Power Cord
Connector
4-Port RTM358 (Rear I/O) with
Double-wide CPCI 6UX8HP
Front Panel
ESD Jack
Power Supply
Fan (Exhaust)
Grounding
Lug
RJ45 Ethernet
Ports A & B
DB25 Connectors
Power Switch
DB25 Connectors
Ethernet
LEDs
