Pulsar 200 NS - Side Cover Access; Side Cover Removal and Fitment

Removal & Fitment of Side Cover LH / RH
E
F
G
A
B

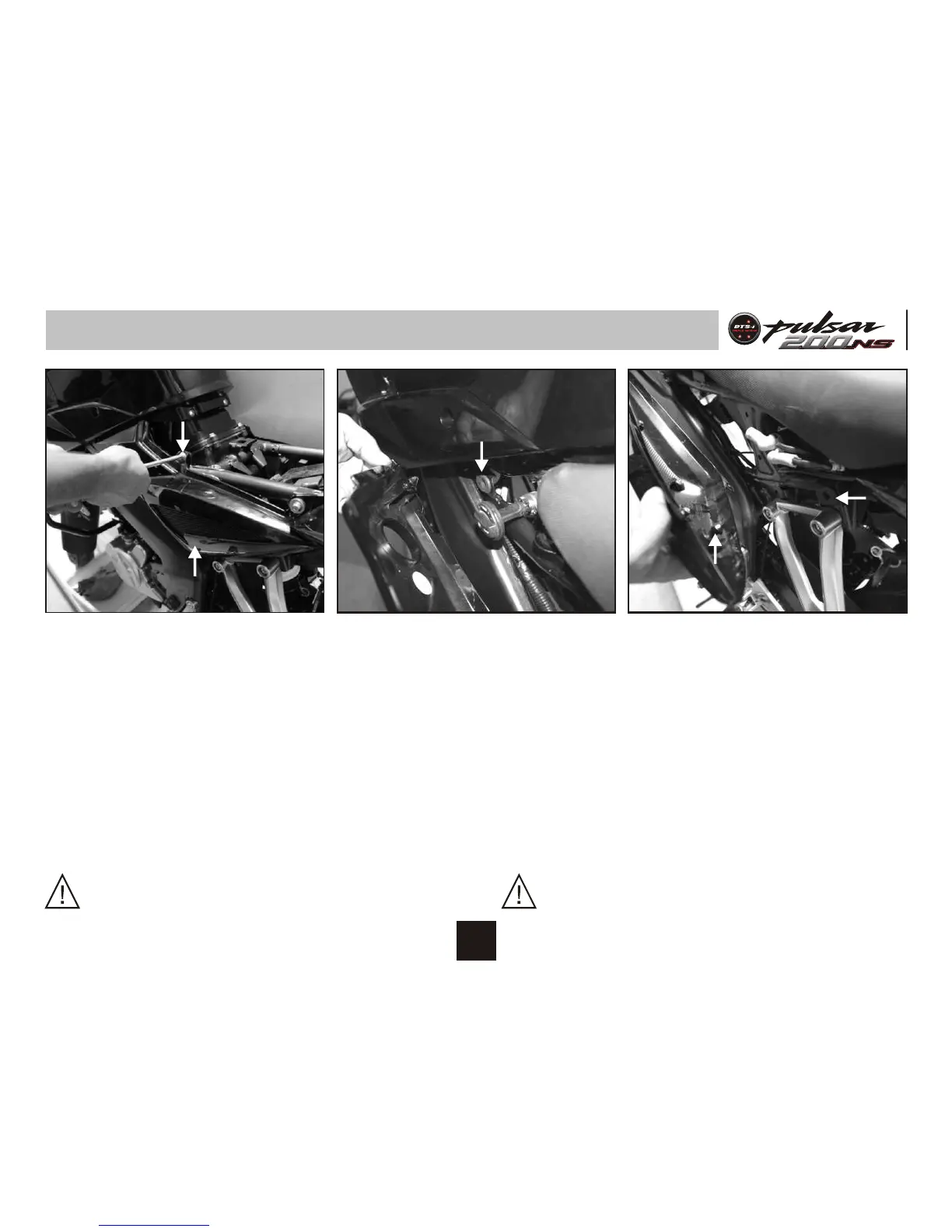

Removal of Side Cover LH or RH
• Remove pillion & rider seat first.
• Remove screw (A) upper & (B) lower of side
cover mounting.
• Pull front portion of ‘Side Cover’ to release
its lug from hole (C) provided on ‘Fuel Tank’.
• Pull rear portion of ‘Side Cover’ to release
its Lug from hole provided on ‘Chassis’.
• Take out side cover.
CAUTION : Remove cover as described
above, Otherwise the lugs may break.
Fitment of Side Cover LH or RH
• Match Lug (D) provided on front portion of
‘Side Cover’ with hole (E) provided on
‘Chassis’ and press ‘Side Cover’ inside.
• Match Lug (F) provided on rear portion of
‘Side Cover’ with hole (G) provided on
‘Chassis’ and press ‘Side Cover’ inside.
• Tighten the upper (A) & lower (B) screw with
screw driver.
• Fit pillion & rider seat.
CAUTION : Fit cover as described above
to ensure proper fitment.
