Pulsar 200 NS - Instrument Cluster Details; Speedometer Indicators and Controls

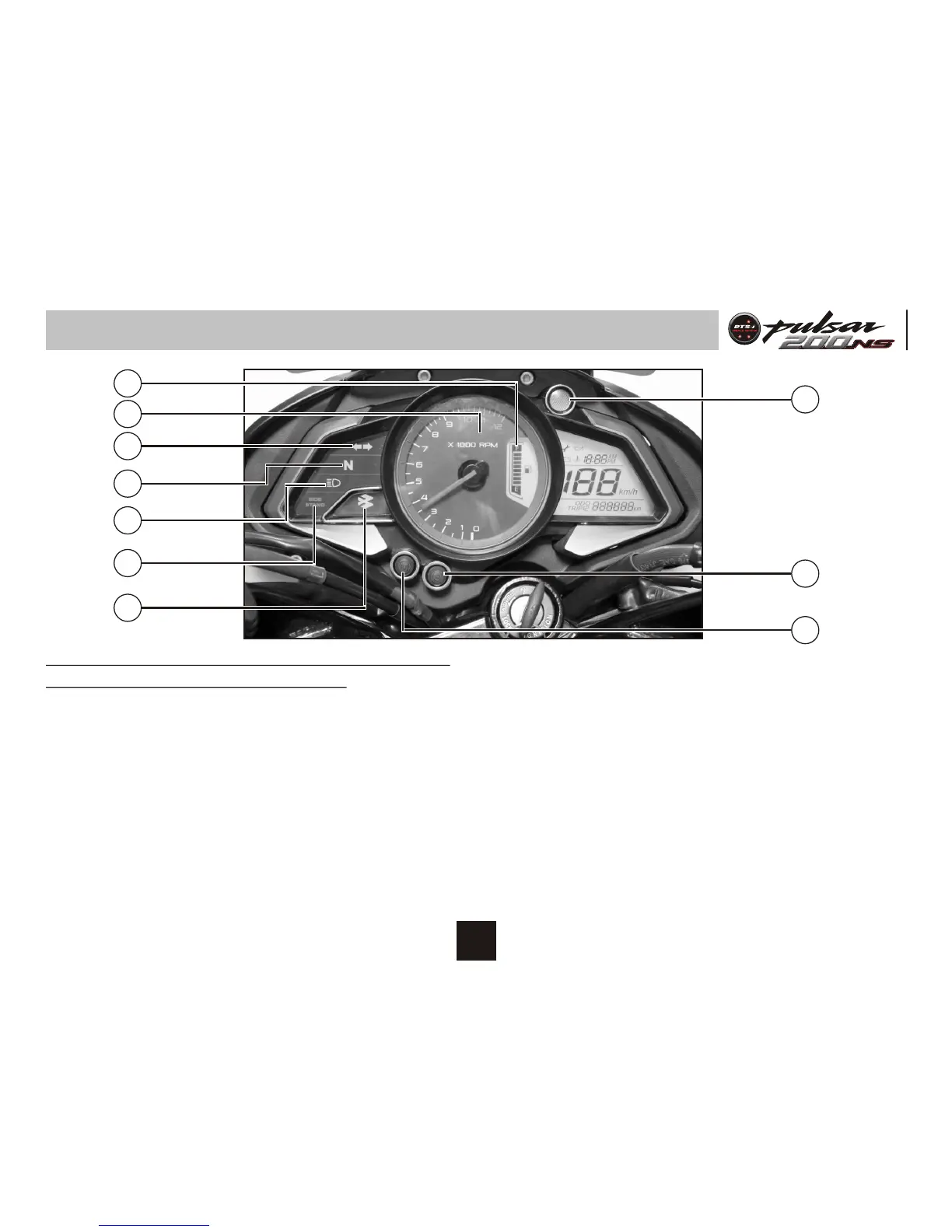

Speedometer Details
Speedometer display will work when both Ignition
switch & kill switch are in ‘ON’ position.
1. Fuel Level Indicator: It shows fuel level in fuel tank.
2. Tachometer Dial: It shows engine speed in RPM.
3. Turn Signal Indicator (LH & RH): When Turn signal
switch is turned to Left or Right, Turn pilot Indicator -
LH or RH will flash.
4. Neutral Indicator: When the transmission is in
Neutral, Neutral indicator will glow.
5. Hi Beam Indicator: When Headlight is ‘ON’ & Hi
beam is selected with engine running, Hi beam
indicator will glow.
6. Side Stand Indicator : When Side stand is ‘ON’, the
Side stand indicator will lit.
7. Bajaj Logo : Bajaj logo flying ‘B’ continuously glow.
8. Mode Button : Mode button used for changing the
mode while selecting & setting Trip1, Trip2, ODO,
Clock & Service reminder.
9. Set Button : Set button used for setting Clock &
Service reminder.
10. Reserve/Engine Rev Indicator : It glows
continuously when petrol level in tank reaches
reserve level. It also blinks when engine RPM cross
10000 RPM mark.
