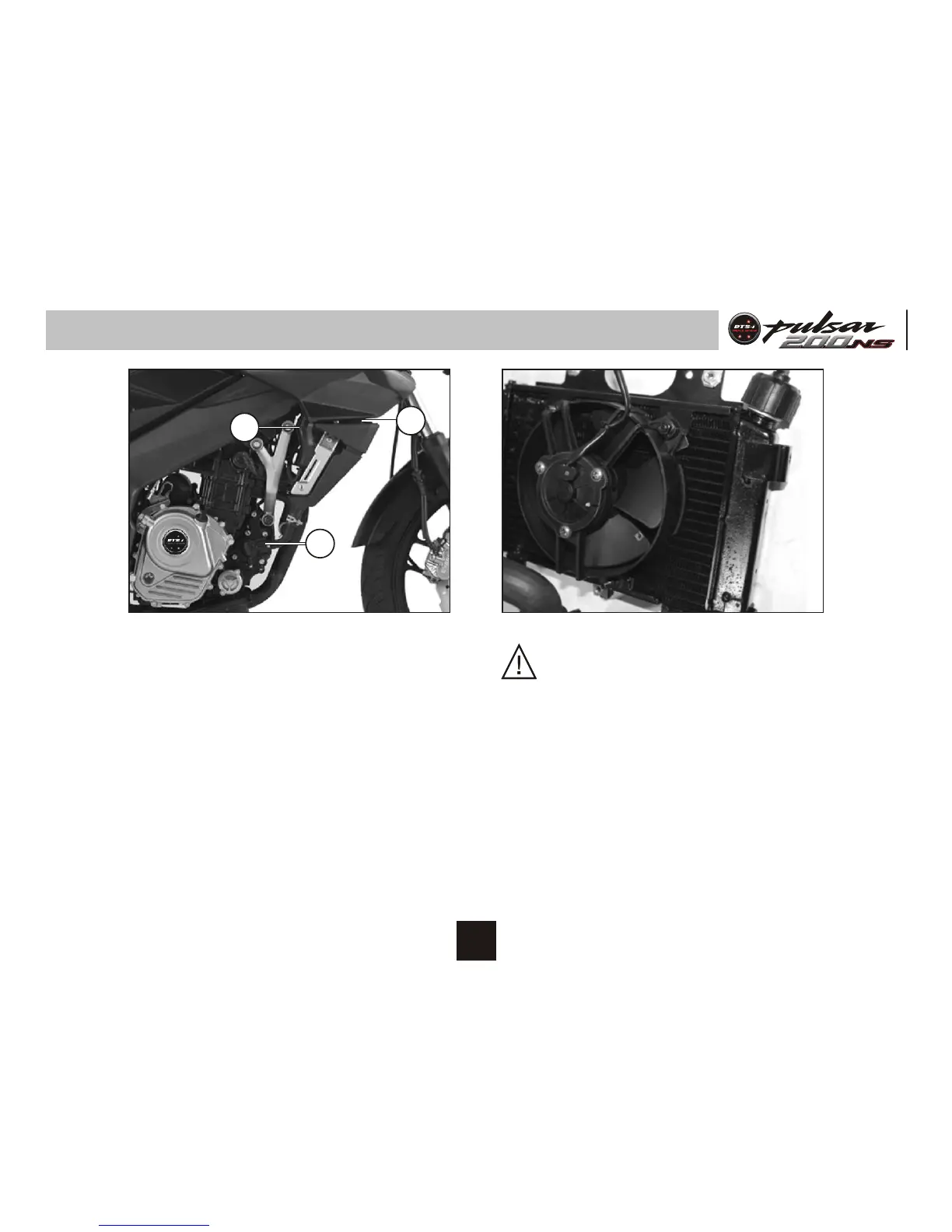

Engine Cooling System
• Coolant is provided for cooling of engine.
• Water pump (A) in the engine circulates
the coolant in cooling system.
• The pressure resulting from the warming of
the cooling system is regulated by a valve
in radiator cap (B).
• Heat expansion causes excess coolant to
flow into compensating tank (C).
• When the temperature falls, this surplus
coolant is sucked back into the cooling
system.
Warning : During motorcycle operation,
the coolant gets very hot & is under
pressure.
Do not remove the radiator cap, radiator
h o s e d o r o t h e r c o o l i n g s y s t e m
components when the engine is hot.
Allow the engine & cooling system to
cool down. In case of scalding, rinse
immediately with lukewarm water.
C
A
B
Radiator
Cooling Fan
Cap
27
