The display is now correct and the gate in the right place measuring the sludge.
IF THE UNIT IS READING TOO HIGH.
The unit will read high when the material in flight in the ‘Settle Zone’ is
sufficiently high so that the echoes returned from this area are bigger than those
coming back from the actual Sludge Blanket.
This is not an uncommon problem in settlement tanks and the unit has service
parameters that can reduce the signal return in this area whilst maintaining the
returns from the true echo.

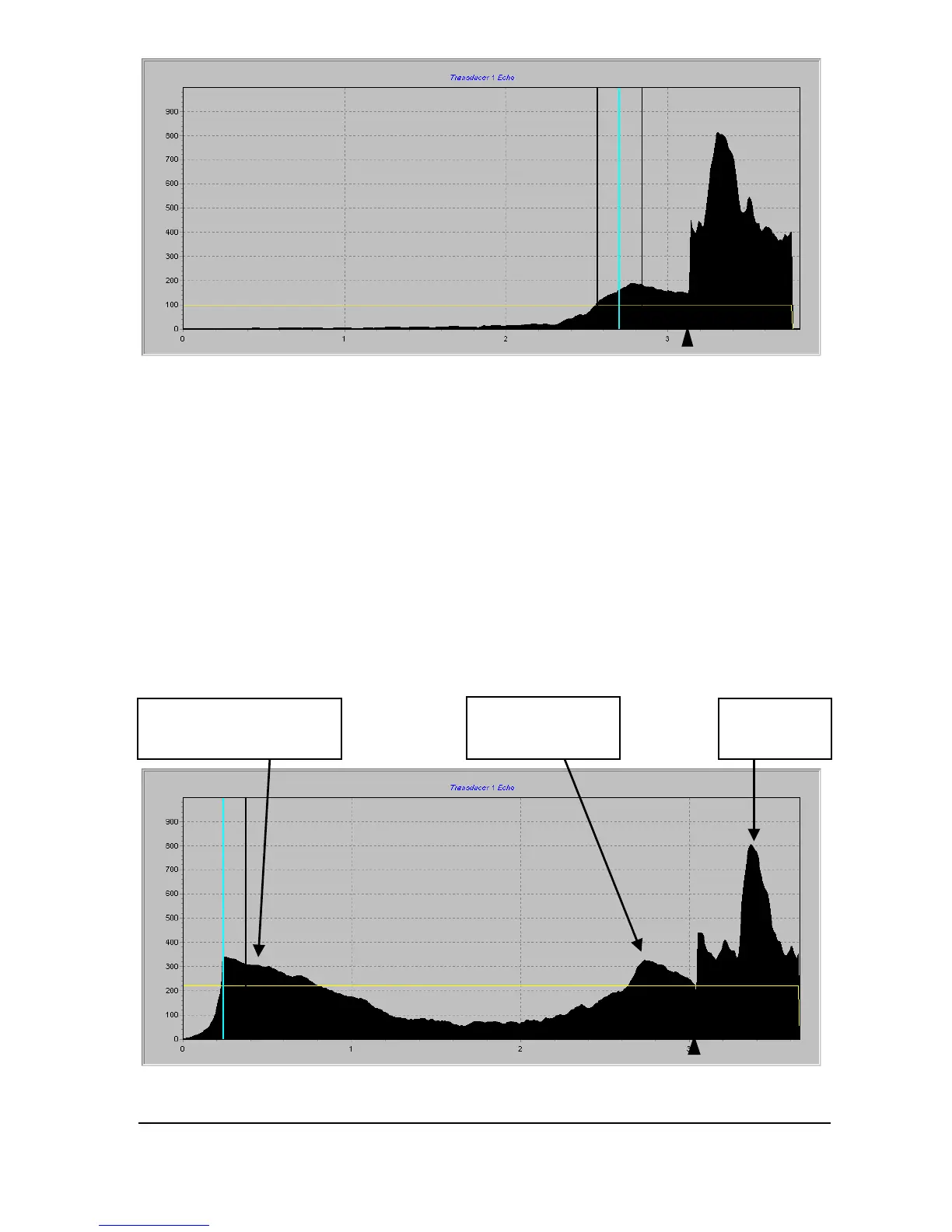

Material in Flight
Echo
Sludge
Blanket Echo
Bottom
Echo

Pulsar ULTRA Series Specifications

General

Power Supply	12-30 V DC
Process Temperature	-40°C to +90°C (-40°F to +194°F)
Output	4-20mA, HART
Protection	IP68
Resolution	1 mm
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Dimensions	120 x 120 x 150 mm (aluminum), 120 x 120 x 150 mm (stainless steel)
