Page 27

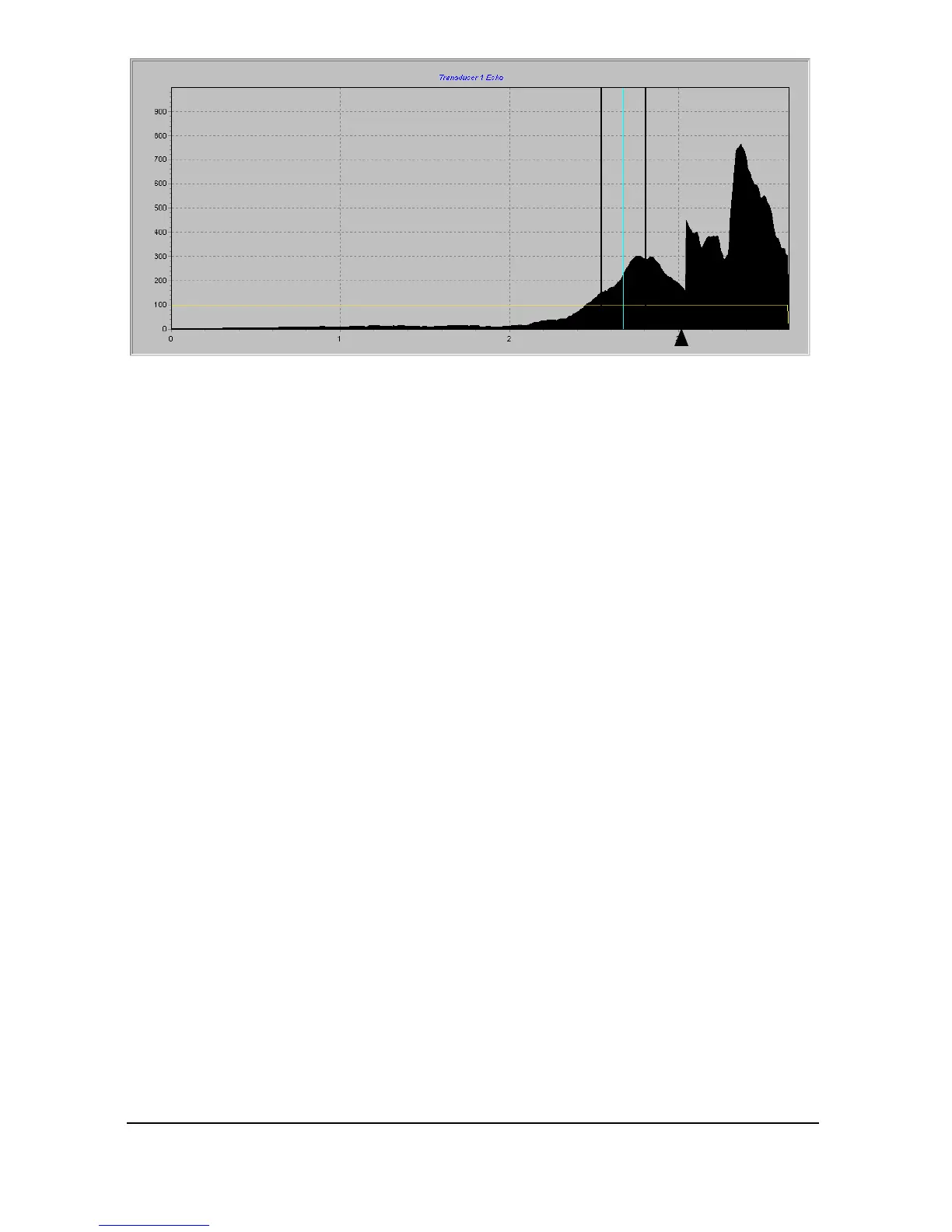

The application is a secondary settlement tank, P43 the Gain Setpoint has been re-

set to 1.5m to increase the negative gain applied to the profile, and a P21 initiated.

The resultant echo profile is now correct.
