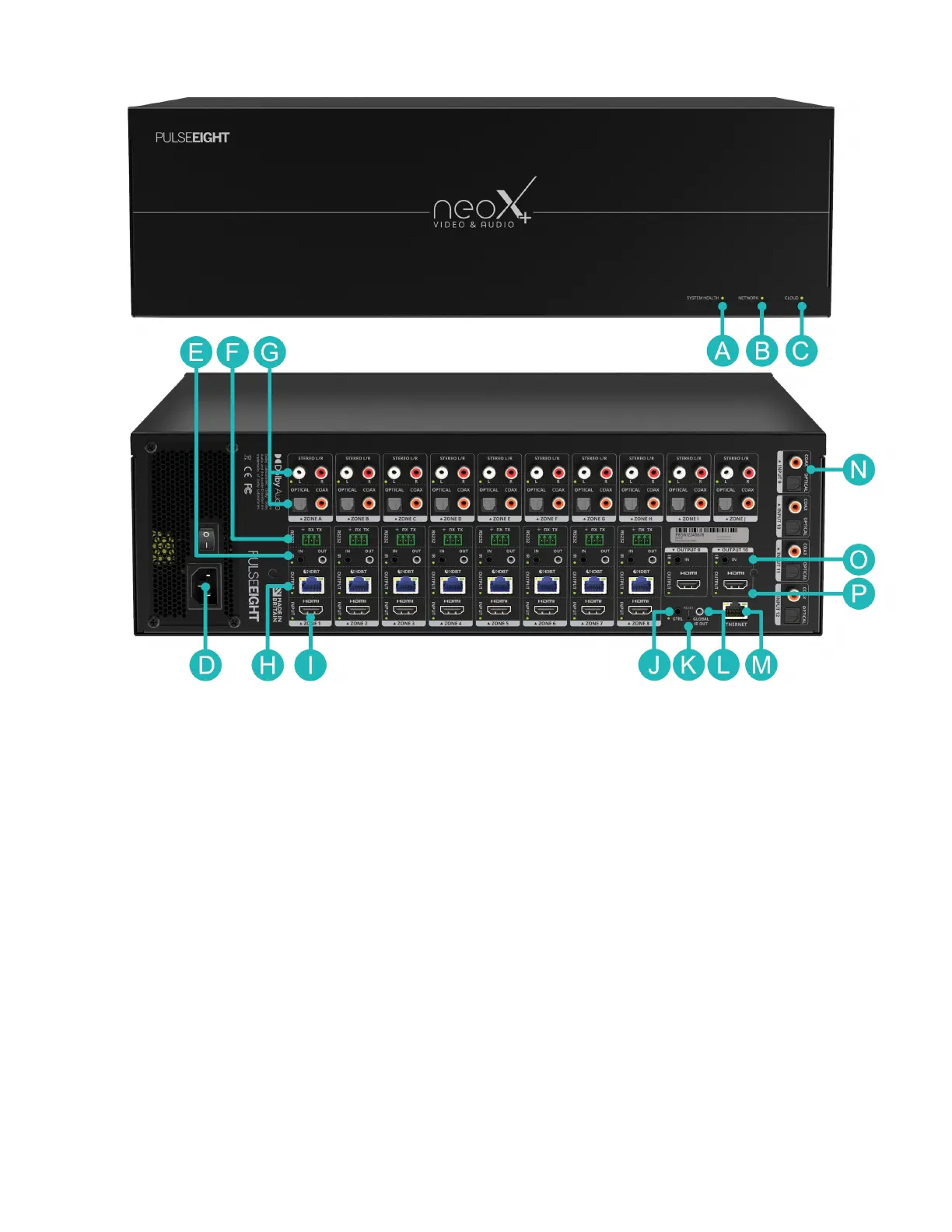

Panel
A. SystemHealthLEDIndicateswhethermatrixisturnedonandhealthy(green),orifthereisan
issuepresent(red).
B. NetworkLEDIndicatesthematrixisconnectedtotheinternetthroughitsnetworklink(green)orif
thereisanissue(red).
C. CloudLEDIndicatesthematrixisabletoconnecttothePulse-EightRemoteMonitoringPortal
(green)ifthereisanissue(red).
D. PowerConnectorPowerconnectorwithOFF/ONswitch.Usesuppliedpowercordtoconnectthe
power.
E. IRReceiverandTransmitterPortsConnectasrequired.TheIROutportistobeusedto
connectinputdevicesusingthesuppliedIREmitters.
F. RS232PhoenixPortsGround=Zerovolts.TXissignalcomingoutofmatrix(fromremote
device)RXissignalgoingintomatrix(toremotedevice).
G. AudioOutputsAnalogue,OpticalandDigitalCoaxoptionsforAudioBreakouts.
H. HDBaseTOutputsConnecttheappropriateCat5eorhighergradecabletoeachoutput.These
cablesshouldthenbeconnectedtoaneoReceiverateachSinkdevice.(TV/Amplifieretc.).
