Pulse-Eight neo:X+ - Page 8

I. HDMIInputsConnecttheappropriatehighspeedHDMIcabletoeachinput.Thesecablesshould
thenbeconnectedtotheSourcedevice.(Blu-Rayplayeretc.)
J. ControlIRInputGeneralIRinputdesignedforlegacycontrolsystemsorwheredirectIRinputis
required(werecommendtheuseofourIPdriverinsteadofthisport,whereapplicable).Please
seefullmanualformoreinformation.
K. ResetFactoryreset-pleaseuseonlywheninstructedbyourcustomerserviceteam.
L. GlobalIRUsedforacontrolsystemtobeabletoseeallIRsignalsfromallzones.Werecommend
usingaP8-IR-Optocableforconnectivityfromthisporttoyourcontrolsystem.Pleaseseefull
manualformoreinformation.
M. EthernetConnecttonetwork-requiredforconnectiontoWebInterface,ThirdPartyControland
CloudRemoteMonitoringPortal.
N. AudioInputsOpticalandDigitalCoaxoptions
O. HDMIIRInConnectasrequired.TheHDMIIRInportsaretobeusedtoreturnIRbacktothe
matrixusinganP8-IR-Optocable.
P. HDMIOutputsConnecttheappropriatehighspeedHDMIcabletoeachoutput.Thesecables
shouldthenbedirectlyconnectedtoeachSinkdevice.(TV/Amplifieretc.)


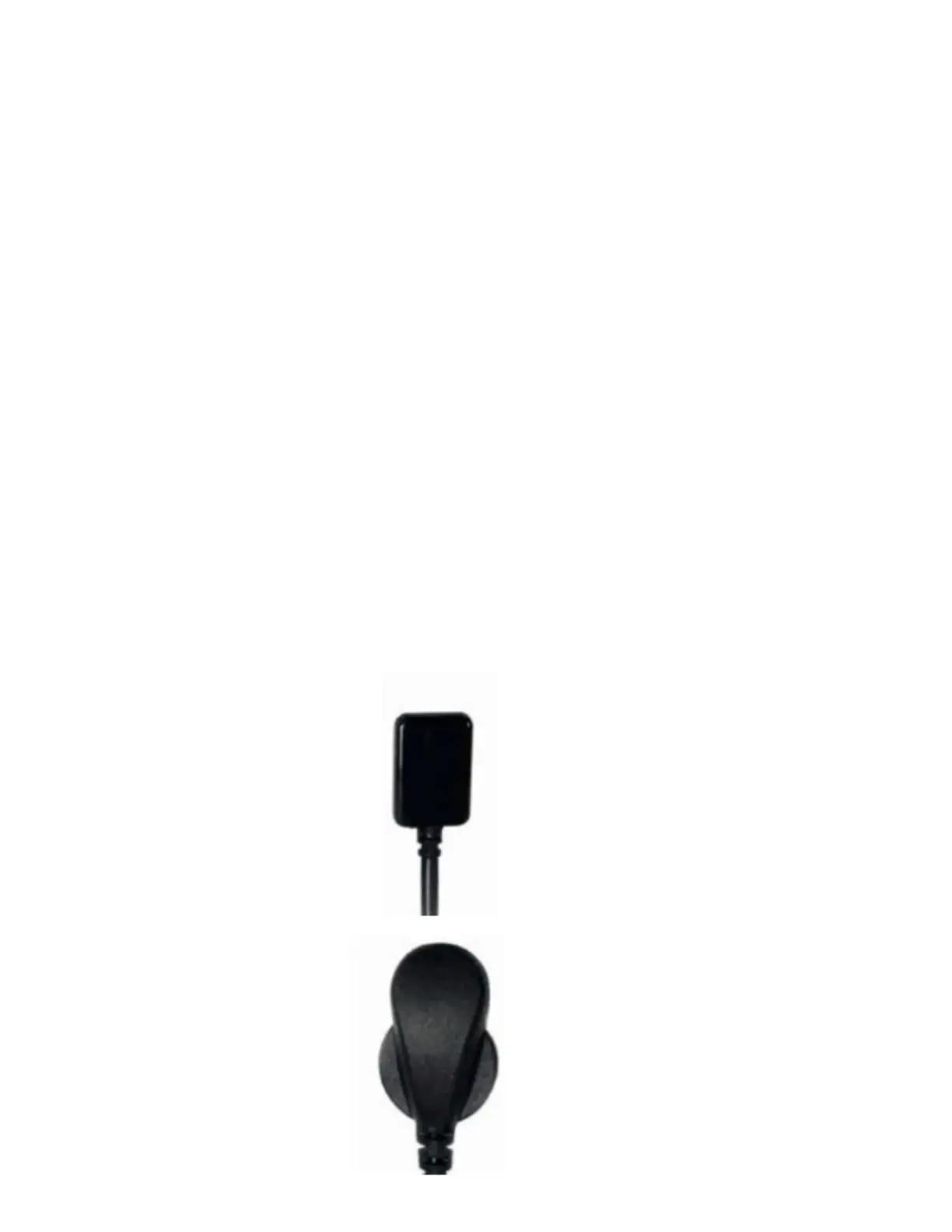

IRBUDS
TheIREmitteristobemountedoverthesource'sIRwindow.TheIRReceiverbudshouldbemounted
underneaththesink(TV)withthesmallestendforwardsandthestickypadaffixedupwards.
Ourvideomatrixesusethestandard3.5mmstereojack,witha5Vtip,SignalRingandGNDsleeve.
IRReceiver
IREmitter
