RS-232PORT:
PhoenixConnectorpassthrough
HDBaseTintoReceiver-shortRX
toTXononeendwhiletheother
endconnectedtoPCtorun
terminalservice.Oncetheterminal
acceptsinputwithecho,that
meanstheconnectorworks.Our

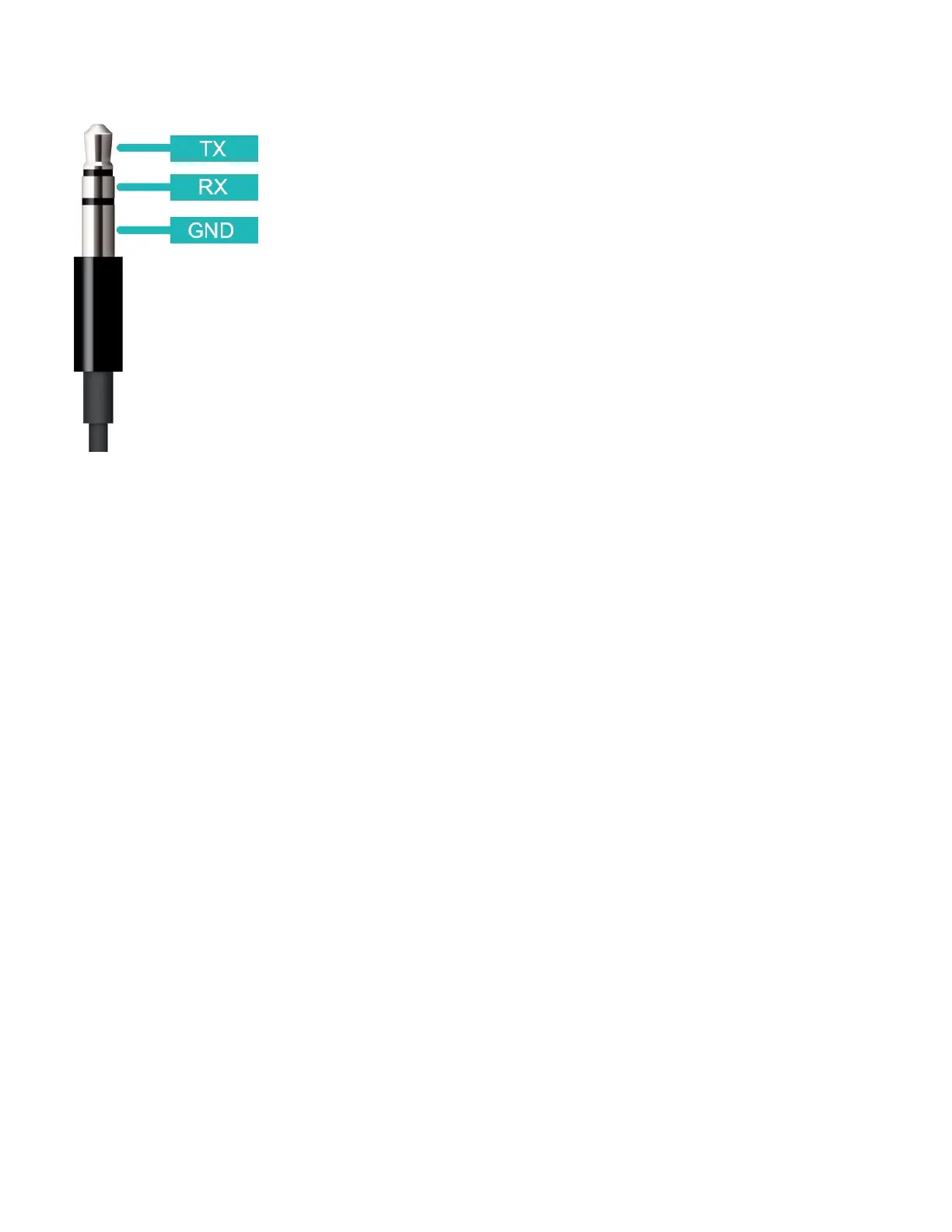

RS232canberewiredinto
standard3.5mmstereojack.
