Pyle PLCD15MR User Manual

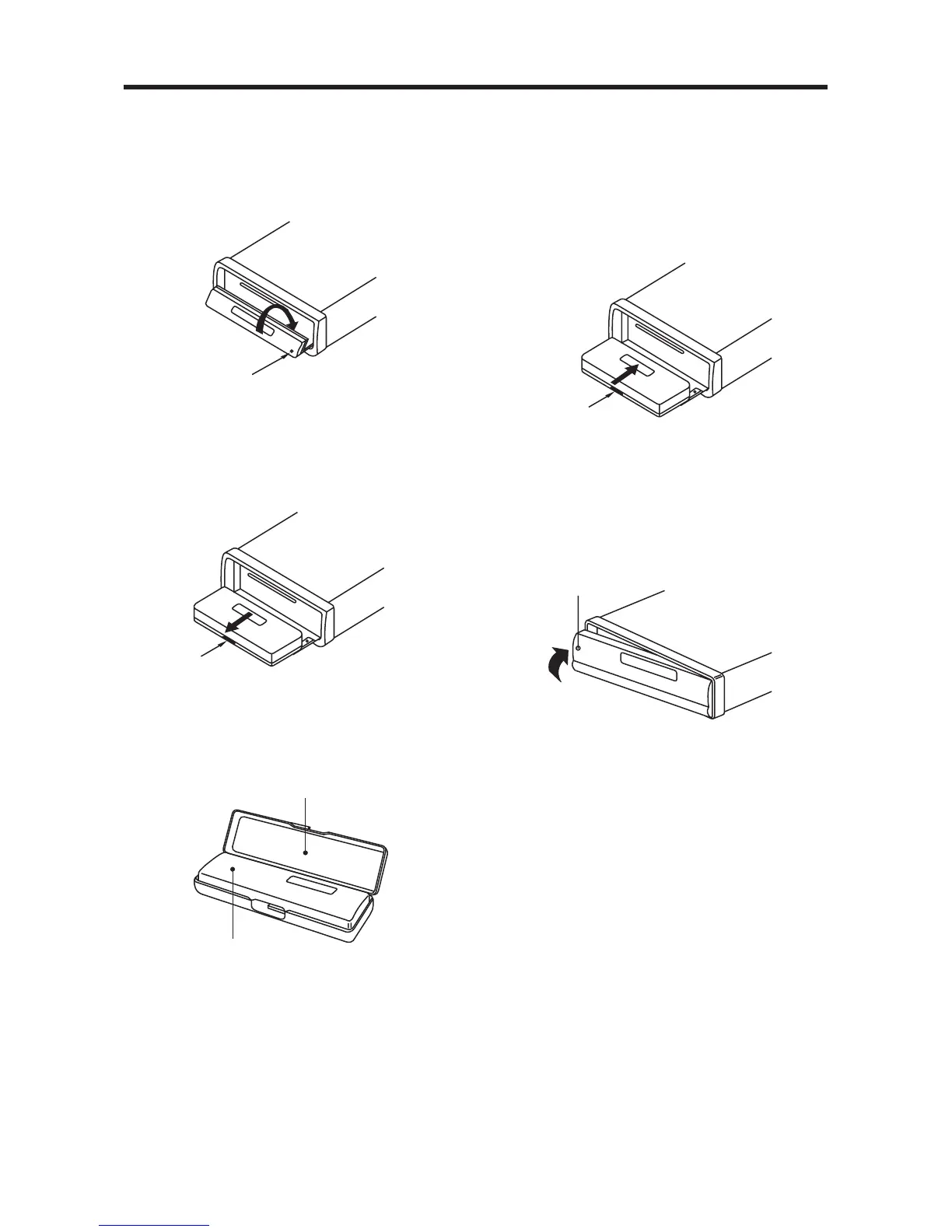

To Detach the Front Panel
1. Press the OPEN button, the front panel
will slide down.
2. When the front panel slides down,
press the bottom button of the front
panel upward and pull it out from the
panel bracket.
3. For safekeeping, store the front panel
in the supplied protective case
immediately after being removed.
To Reinstall the Front Panel
1. When the panel bracket is in slide down
position, insert the front panel into the
panel bracket and push the front panel
from the middle to slide it up.
2. When the panel bracket is in slide up
position, insert a side of the front panel
to its proper position and push another
side into the panel bracket, a ‘click’
sound should be heard.
3. Note that if the front panel fails to lock
in position properly, pressing control
button may not function and LCD
display may be missing some
segments. Press the OPEN button and
then re-install the front panel again.
5
Open
Bottom
Button
Bottom
Button
Protective Case
Front Panel
Front Panel
USING THE DETACHABLE FRONT PANEL

Pyle PLCD15MR Specifications

General

MP3 playback	Yes
USB direct playback	No
Supported radio bands	AM, FM
Preset stations quantity	30
Line outputs (RCA)	2
Output power	240 W
Product color	-
Volume control	Digital

Weight and Dimensions

Depth	177.79 mm
Height	49.78 mm
