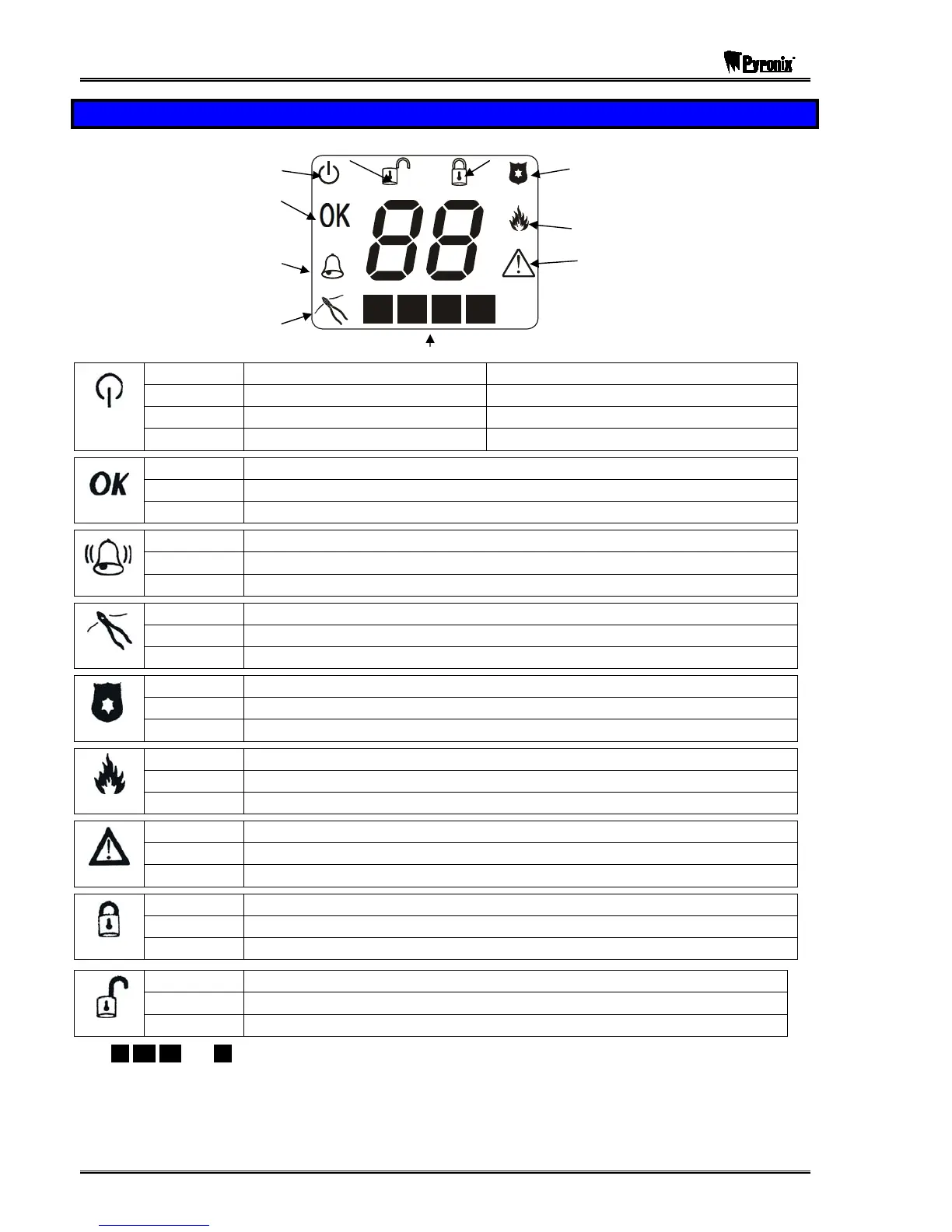

3.2 Icon Symbol Meanings
Disarmed Armed
Supply Personal Attack
Ready
Fire
Alarm Fault
Tamper
P1 P2
P3
P4
(( ))
Partitions
Rest of World Denmark, Norway, Finland & Sweden
Illuminated Correct AC & DC power sources AC power is OK
Blinking
DC source (battery) fault An AC fault
Extinguished
No AC power supplied to the panel No power to panel
Illuminated
OK to Arm, no open zones
Blinking
Select partitions to arm or disarm / Programming function is active
Extinguished
One or more open zones or all assigned partitions are already armed
Illuminated
Used in the Display Log function to qualify log information
Blinking
Active alarm in FTA mode. Digit display shows active zone
Extinguished
No alarm active
Illuminated
Indicates a tamper condition (used in log display)
Blinking
Indicates a tamper condition
Extinguished
No tamper alarm active
Illuminated
Indicates a PA alarm condition (used in log display)
Blinking
Indicates a PA alarm condition
Extinguished
No PA active
Illuminated
Indicates a Fire alarm condition (used in log display)
Blinking
Indicates a Fire alarm condition
Extinguished
No Fire alarm active
Illuminated
Indicates a system Fault
Blinking
Extinguished
No Fault active
Illuminated
The panel is armed
Blinking
The panel is arming with omitted zones
Extinguished
The panel is not armed
Illuminated
The panel is disarmed
Blinking
Extinguished
The panel is not disarmed
The P1, P2, P3 and P4 icons are used to show partition information as well as the partition segments.
