Pyronix PCX 46 - Tag Reader Operations; Tag Reader Status Indicators; Entry Control Operations; External Reader Arming;Disarming

8
F: Arming / disarming with the tag reader
G: Open doors / Arm and Disarm (Entry Control)
Ifyouhaveatagreaderinstalled,thenitwillbepossibletoarmanddisarmthealarmsystemusingatag.
A tag reader can also be used to unlock entry doors.
External Reader Instructions:

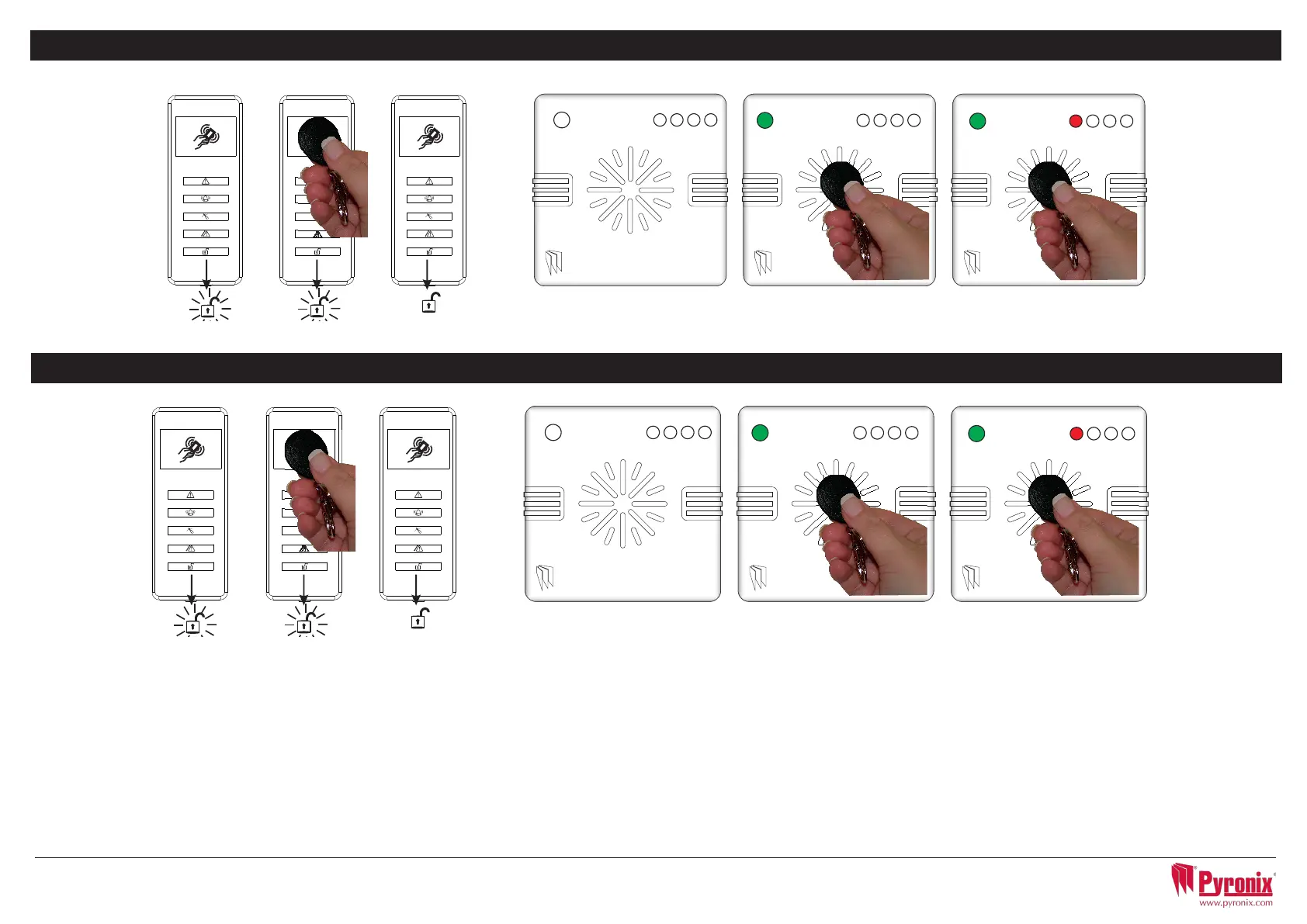

Arming:Presentavalidtagtothereader,theGREENLEDwillilluminateontheexternalreader,removethetag,thedoorwillunlock,thenpresentthe
same tag within 10 seconds and the system will arm and the door will lock.
Disarming:Presentavalidtagtothereaderandthenremoveit,thestatuswillbeshown(thealarmsymbolwillilluminateindicatingthesystemis
armedontheinternalreaderandtheREDLEDontheexternalreader),presentthesametagwihthin10secondsagainandthesystemwillbedisarmed,
and the door will unlock.
Access Control/Entry Control:Thereaderscanbeusedalsoforopeningdoorsonlywithouttheabilitytoarmanddisarm.Pleasecontactyour
installer for more information on this feature.
Disarmed Locked Armed
Disarmed Armed
Disarmed Armed
NOTE:IfthePCX46hasfailedtoset,afaultwillbedisplayedontheinternaltagreader
or a fail to set sound will activate on the external tag reader buzzer.
NOTE:IfthePCX46hasfailedtoset,afaultwillbedisplayedontheinternaltagreader
or a fail to set sound will activate on the external tag reader buzzer.
Disarmed Locked Armed
