QNAP TS-h 90FU Series User Manual

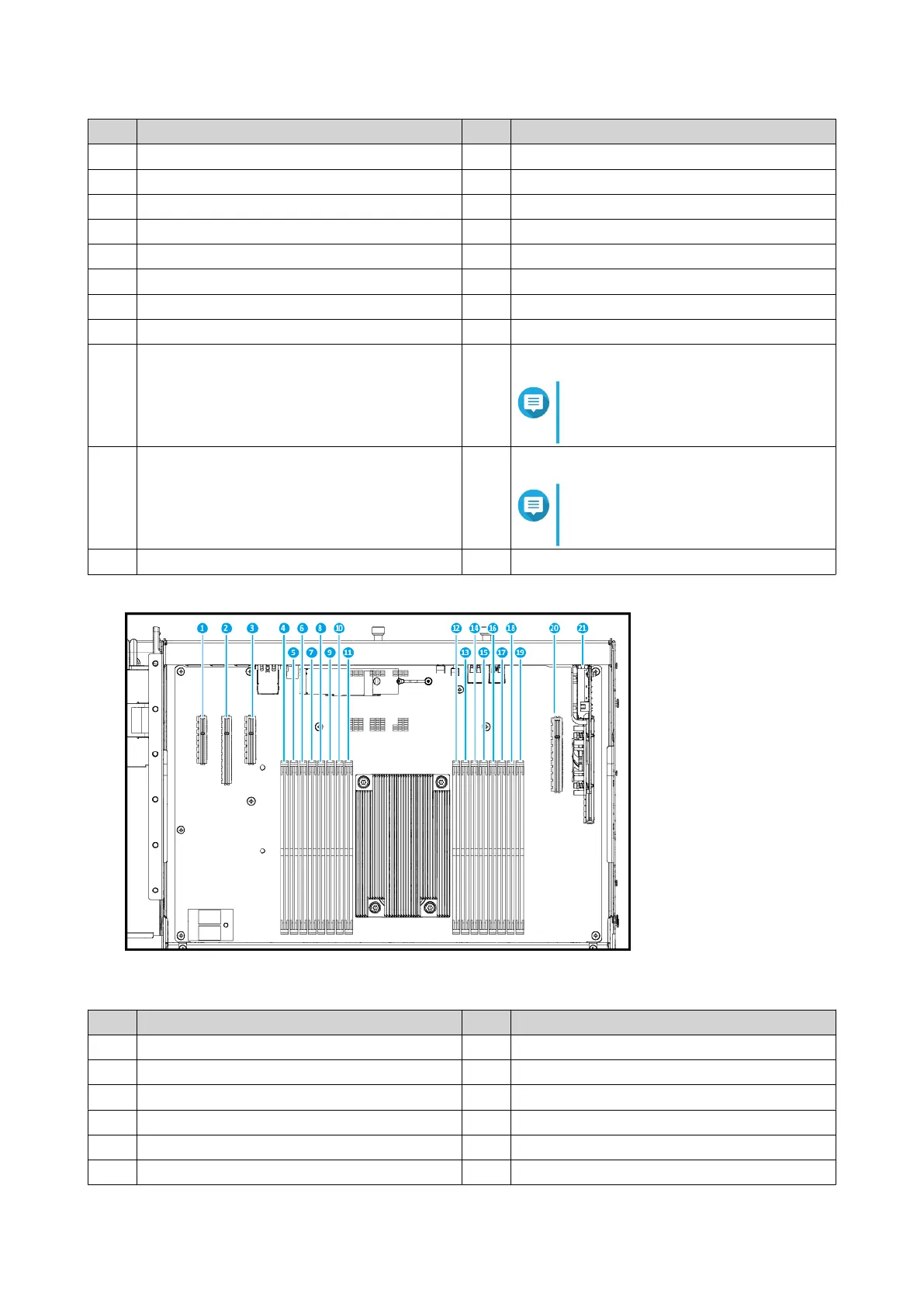

No. Component No. Component
1 PCIe slot 1 (PCIe 4.0 x4) 12 Memory slot 9 (Channel E, DIMM 1)
2 PCIe slot 2 (PCIe 4.0 x8) 13 Memory slot 10 (Channel E, DIMM 2)
3 PCIe slot 3 (PCIe 4.0 x4) 14 Memory slot 11 (Channel F, DIMM 1)
4 Memory slot 1 (Channel D, DIMM 2) 15 Memory slot 12 (Channel F, DIMM 2)
5 Memory slot 2 (Channel D, DIMM 1) 16 Memory slot 13 (Channel G, DIMM 1)
6 Memory slot 3 (Channel C, DIMM 2) 17 Memory slot 14 (Channel G, DIMM 2)
7 Memory slot 4 (Channel C, DIMM 1) 18 Memory slot 15 (Channel H, DIMM 1)
8 Memory slot 5 (Channel B, DIMM 2) 19 Memory slot 16 (Channel H, DIMM 2)
9 Memory slot 6 (Channel B, DIMM 1) 20 PCIe slot 4 (PCIe 4.0 x8)
Note
This slot is preinstalled with a 25
GbE SFP28 network card.
10 Memory slot 7 (Channel A, DIMM 2) 21 PCIe slot 5 (PCIe 4.0 x16)
Note
This slot is preinstalled with a 25
GbE SFP28 network card.
11 Memory slot 8 (Channel A, DIMM 1) - -
TS-h2490FU-7232P-64G
No. Component No. Component
1 PCIe slot 1 (PCIe 4.0 x4) 12 Memory slot 9 (Channel E, DIMM 1)
2 PCIe slot 2 (PCIe 4.0 x8) 13 Memory slot 10 (Channel E, DIMM 2)
3 PCIe slot 3 (PCIe 4.0 x4) 14 Memory slot 11 (Channel F, DIMM 1)
4 Memory slot 1 (Channel D, DIMM 2) 15 Memory slot 12 (Channel F, DIMM 2)
5 Memory slot 2 (Channel D, DIMM 1) 16 Memory slot 13 (Channel G, DIMM 1)
6 Memory slot 3 (Channel C, DIMM 2) 17 Memory slot 14 (Channel G, DIMM 2)
TS-hx90FU User Guide
Product Overview 11
