QNAP TS-h 90FU Series User Manual

No. Component No. Component
7 Memory slot 4 (Channel C, DIMM 1) 18 Memory slot 15 (Channel H, DIMM 1)
8 Memory slot 5 (Channel B, DIMM 2) 19 Memory slot 16 (Channel H, DIMM 2)
9 Memory slot 6 (Channel B, DIMM 1) 20 PCIe slot 4 (PCIe 4.0 x8)
10 Memory slot 7 (Channel A, DIMM 2) 21 PCIe slot 5 (PCIe 4.0 x16)
Note
This slot is preinstalled with a 25
GbE SFP28 network card.
11 Memory slot 8 (Channel A, DIMM 1) - -

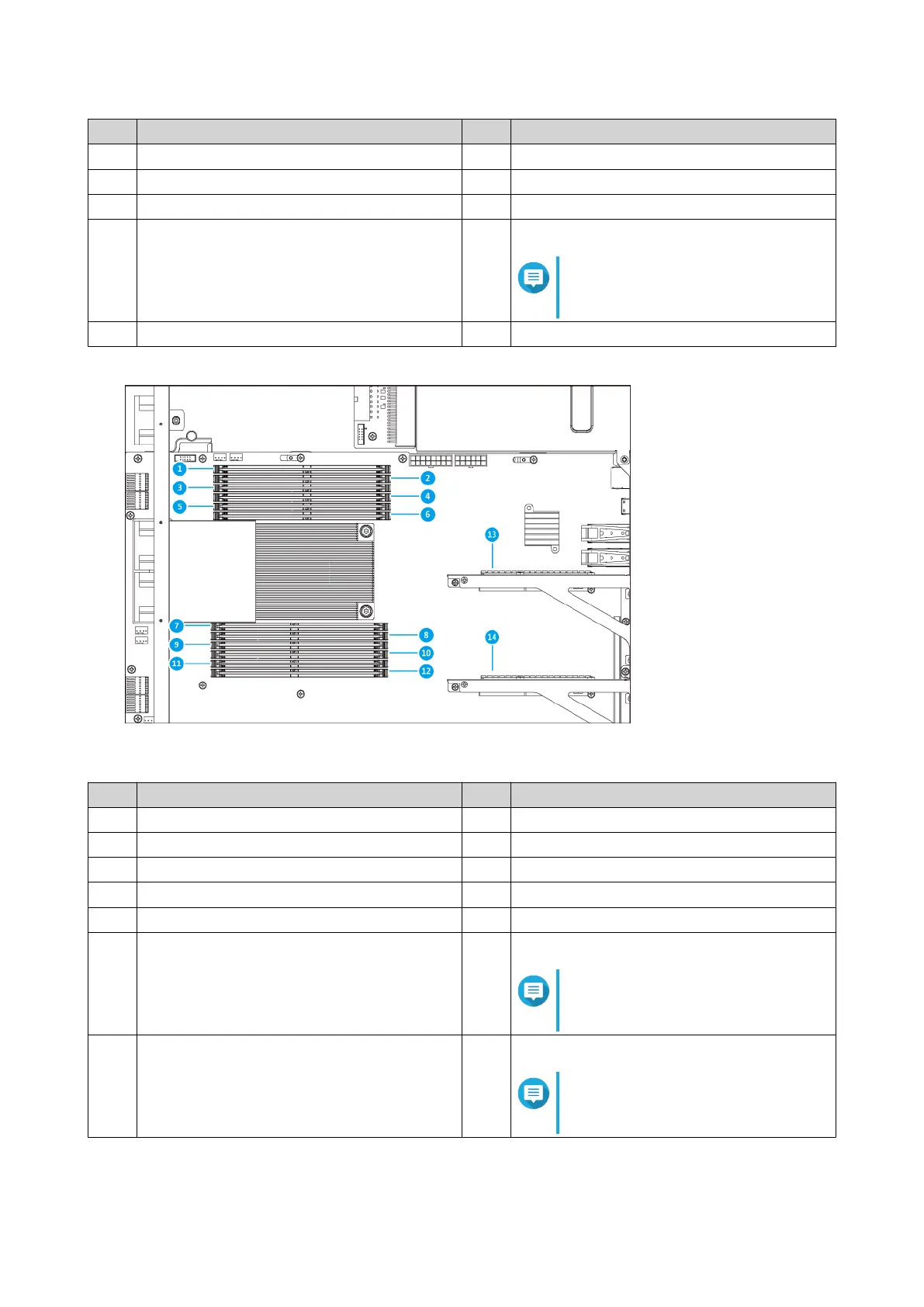

TS-h1090FU
No. Component No. Component
1 Memory slot 1 DIMM 1 (H1) 8 Memory slot 8 DIMM 8 (B1)
2 Memory slot 2 DIMM 2 (G2) 9 Memory slot 9 DIMM 9 (B2)
3 Memory slot 3 DIMM 3 (G1) 10 Memory slot 10 DIMM 10 (C1)
4 Memory slot 4 DIMM 4 (F1) 11 Memory slot 11 DIMM 11 (D1)
5 Memory slot 5 DIMM 5 (E2) 12 Memory slot 12 DIMM 12 (D2)
6 Memory slot 6 DIMM 6 (E1) 13 PCIe slot 2 (PCIe 4.0 x16)
Note
This slot is preinstalled with a riser
card.
7 Memory slot 7 DIMM 7 (A1) 14 PCIe slot 1 (PCIe 4.0 x16)
Note
This slot is preinstalled with a riser
card.
TS-hx90FU User Guide
Product Overview 12

QNAP TS-h 90FU Series Specifications
