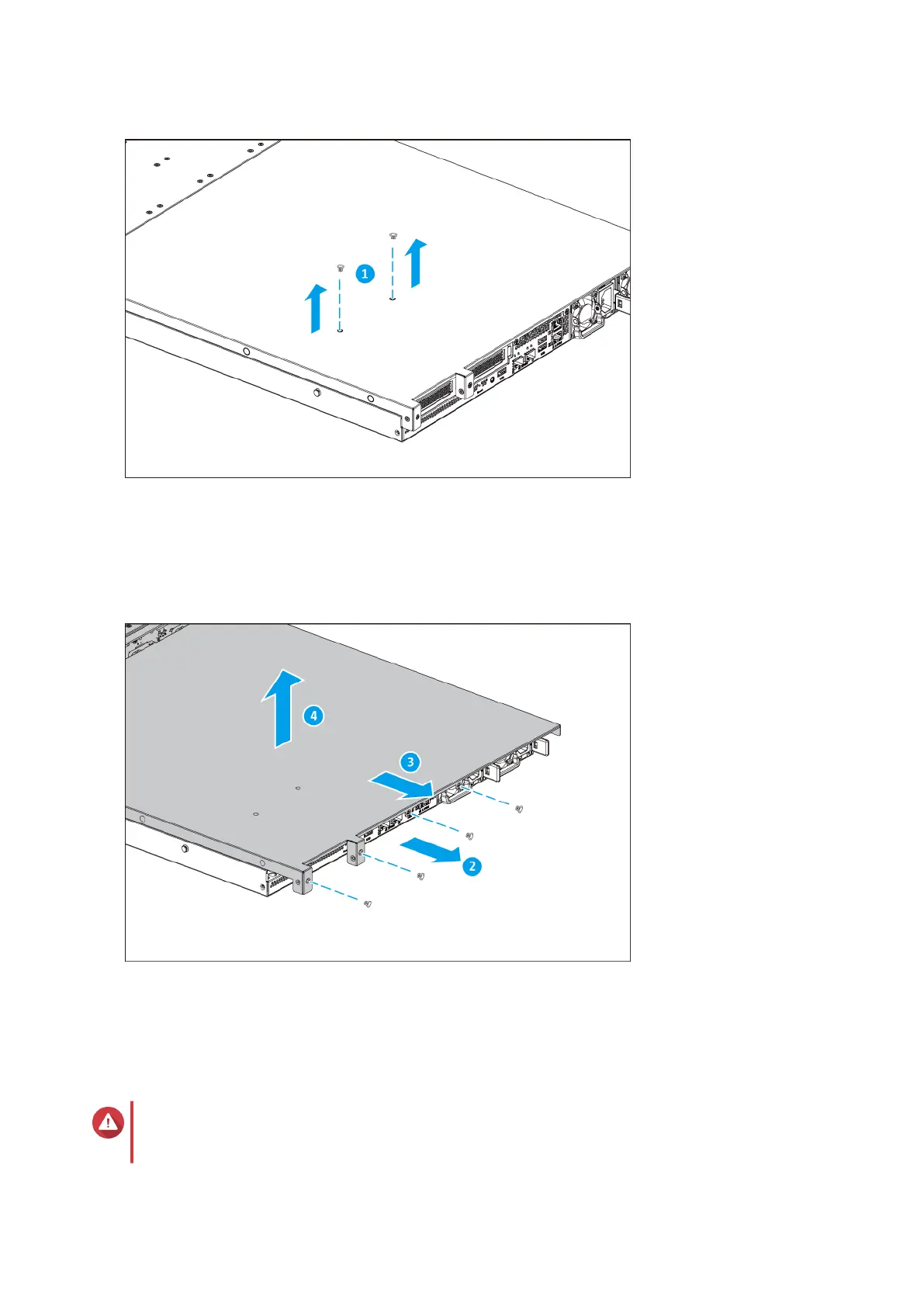

b. Remove the screws on the rear panel.
c. Slide the cover back.
d. Lift the cover o the device.
5. Remove an existing module.
a. Push the retention clips outward simultaneously to release the module.
b. Verify that the module has tilted upward and is completely released from the slot.
Warning
Attempting to remove a module that is not completely released may damage the module and
the system board.
TS-hx90FU User Guide
Installation and Conguration 27
