4. Disconnect all cables and external attachments.

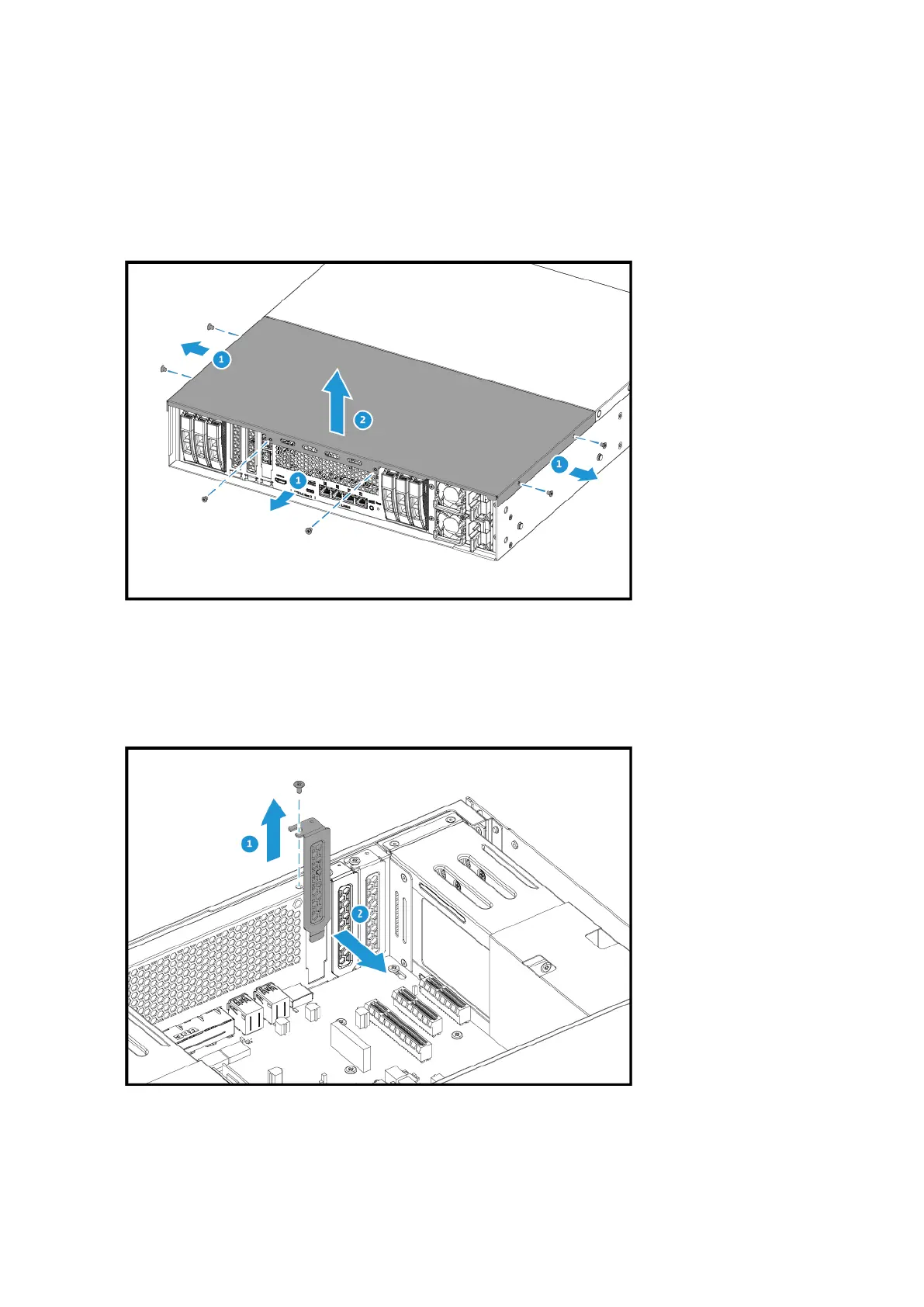

5. Remove the case cover from the rear half of the device.
a. Loosen the screws.
b. Lift the cover off the device.
6. Remove the PCIe cover.
a. Remove the screw that secures the cover to the bracket.
b. Pull the cover away from the slot.
7. Optional: Attach the QNAP bracket to the expansion card.
a. Remove all screws of the existing bracket.
TS-h3088XU-RP User Guide
Installation and Configuration 20
