1. Power off the device.

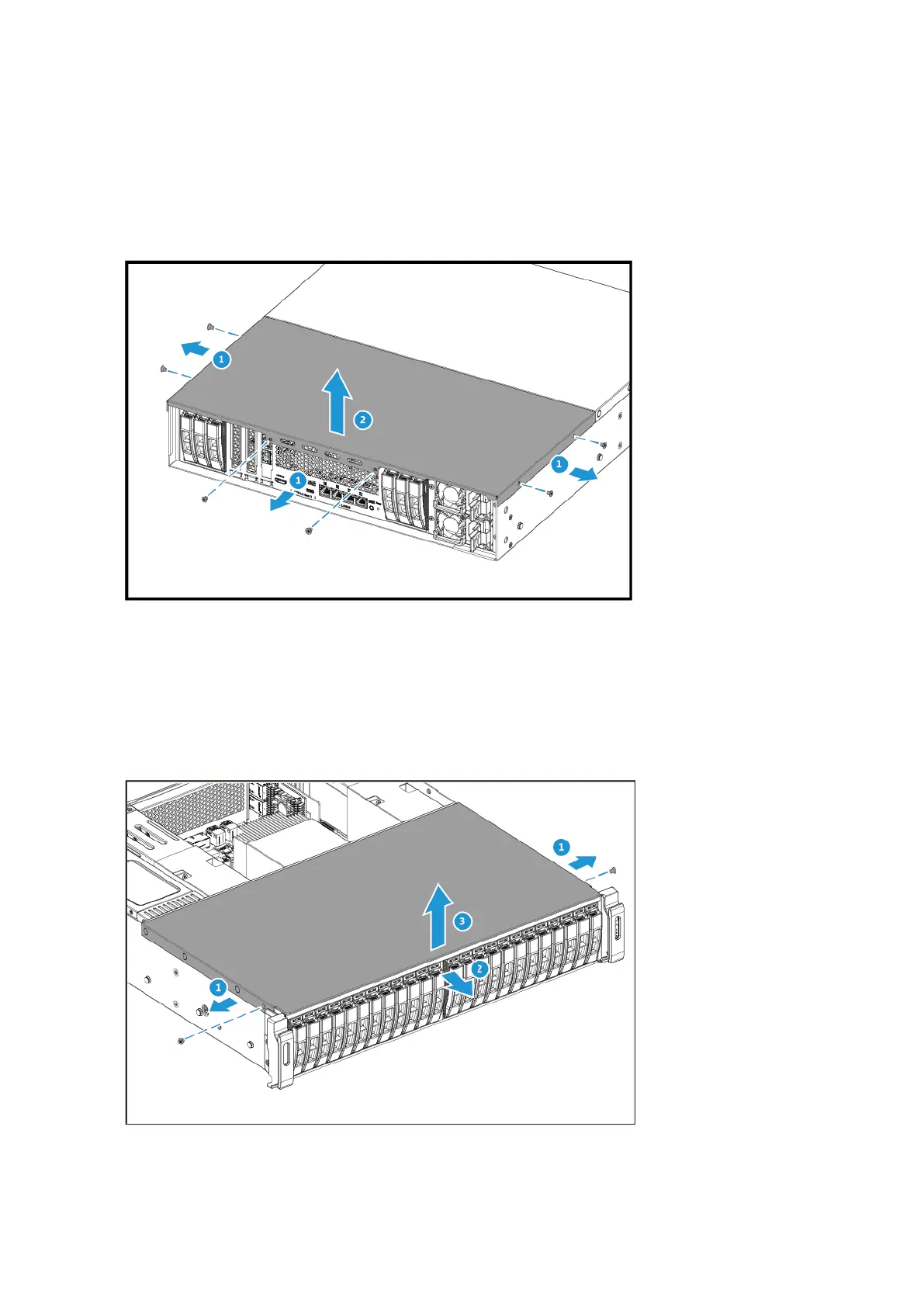

2. Remove the case cover from the rear half of the device.
a. Loosen the screws.
b. Lift the cover off the device.
3. Remove the case cover from the front half of the device.
a. Loosen the screws.
b. Slide the cover slightly forward.
c. Lift the cover off the device.
4. Remove the fan unit.
TS-h3088XU-RP User Guide
Installation and Configuration 25
