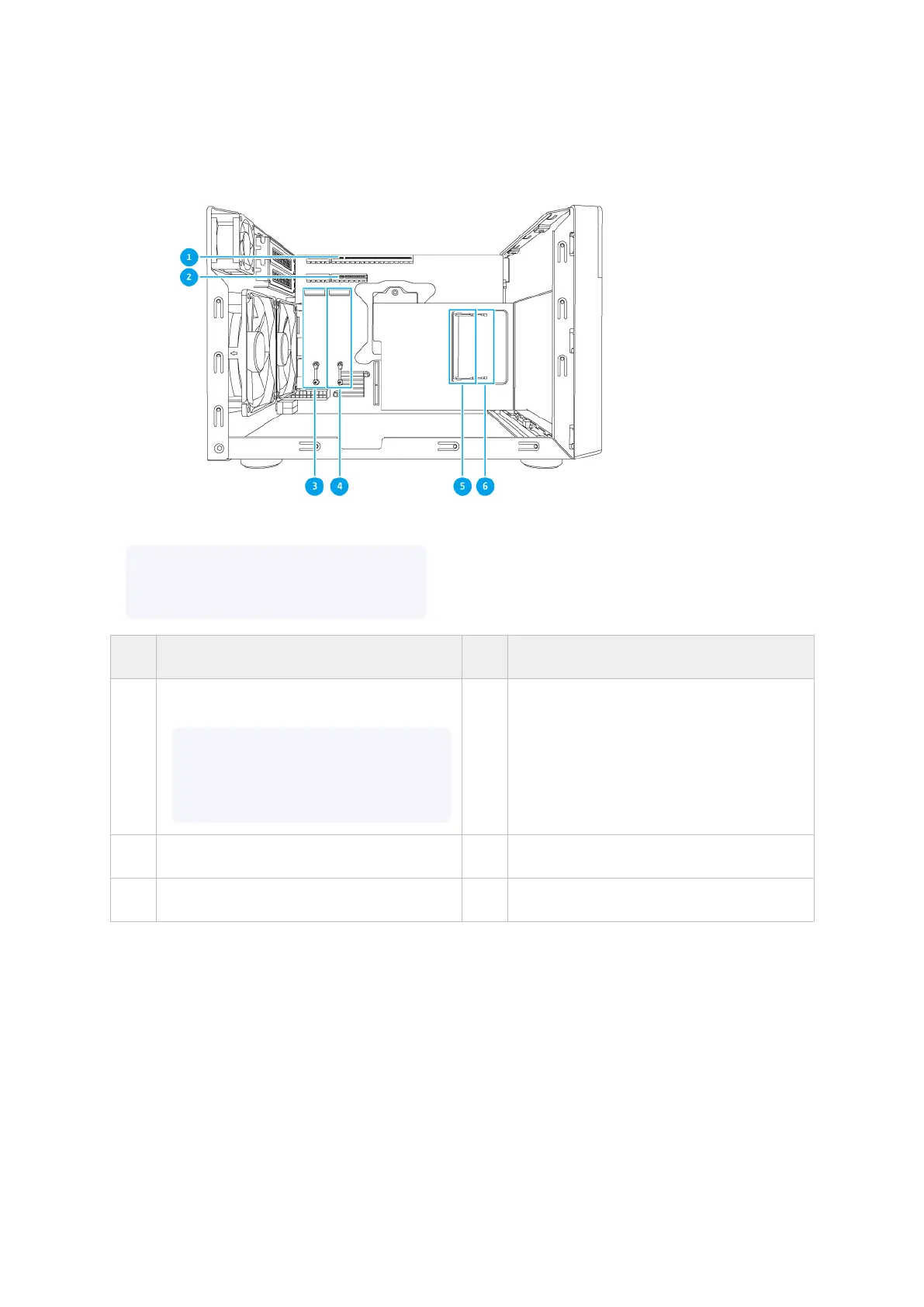

System Boar
d
Note
This image does not show the chassis.
No.
Component
No.
Component
1
PCIe slot 1 (PCIe 3.0 x16)
Note
A Thunderbolt™ 3 expansion card
is preinstalled in this slot.
4
M.2 SSD slot 2
2
PCIe slot 1 (PCIe 3.0 x4)
5
Memory slot 1
3
M.2 SSD slot 1
6
Memory slot 2
TVS-x72XT User Guide
Product Overview
17
17
19
Table of Contents
Contents
2
1. Important Information
4
Safety information
4
2. Product Overview
7
About the TVS-x72XT
7
Hardware Specifications
7
Package Contents
12
Components
13
Front Panel
13
Rear Panel
15
System Board
18
Drive Numbering
19
Installation Requirements
20
Setting Up the NAS
20
3. Installation and Configuration
22
Hardware Installation
22
Drive Installation
22
Installing 3.5-inch Drives on 3.5-inch Trays
22
Installing 2.5-inch Drives on 3.5-inch Trays
25
Installing M.2 Solid-state Drives
27
Expansion Card Installation
32
Installing Expansion Cards on the TVS-472XT
32
Installing Expansion Cards on the TVS-672XT and TVS-872XT
37
Replacing Memory Modules
40
QTS Installation
43
Installing QTS Using Qfinder Pro
45
Installing QTS Using the Cloud Key
47
Installing QTS Using an HDMI Connection
50
4. Basic Operations
53
Power Button
53
Reset Button
53
USB One Touch Copy Button
54
LCD Panel
54
Viewing TCP/IP Settings
54
Configuring TCP/IP Settings
55
Viewing Drive Information
55
Viewing Volume Information
56
Viewing System Information
56
Powering Off the NAS
57
Restarting the NAS
57
Changing the LCD Password
57
LCD Error Messages
58
LEDs
59
Audio Alert
60
5. NAS Migration
62
NAS Migration Requirements
62
Status and Setting Changes after NAS Migration
62
Migrating a NAS
64
Migrating NAS Data Using HBS 3
64
Preparing the Destination NAS
64
Creating a One-Way Sync Job
65
Importing Local Users or Group Settings to the Destination NAS
67
6. Troubleshooting
69
Forcing Qfinder Pro or myQNAPcloud to Locate the NAS
69
Hot-swapping Failed Drives
69
Support and Other Resources
70
7. Glossary
71
CloudKey
71
CloudLink
71
myQNAPcloud
71
myQNAPcloud ID
71
Qfinder Pro
71
QTS
71
8. Notices
72
Limited warranty
72
Disclaimer
72
Copyright and trademarks
72
GNU General Public License
73
CE notice
82
UKCA notice
82
FCC notice
82
VCCI notice
83
BSMI notice
83
SJ/T 11364-2006
84
