Quadra-Fire EXCURSION-I Installation Manual

14
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

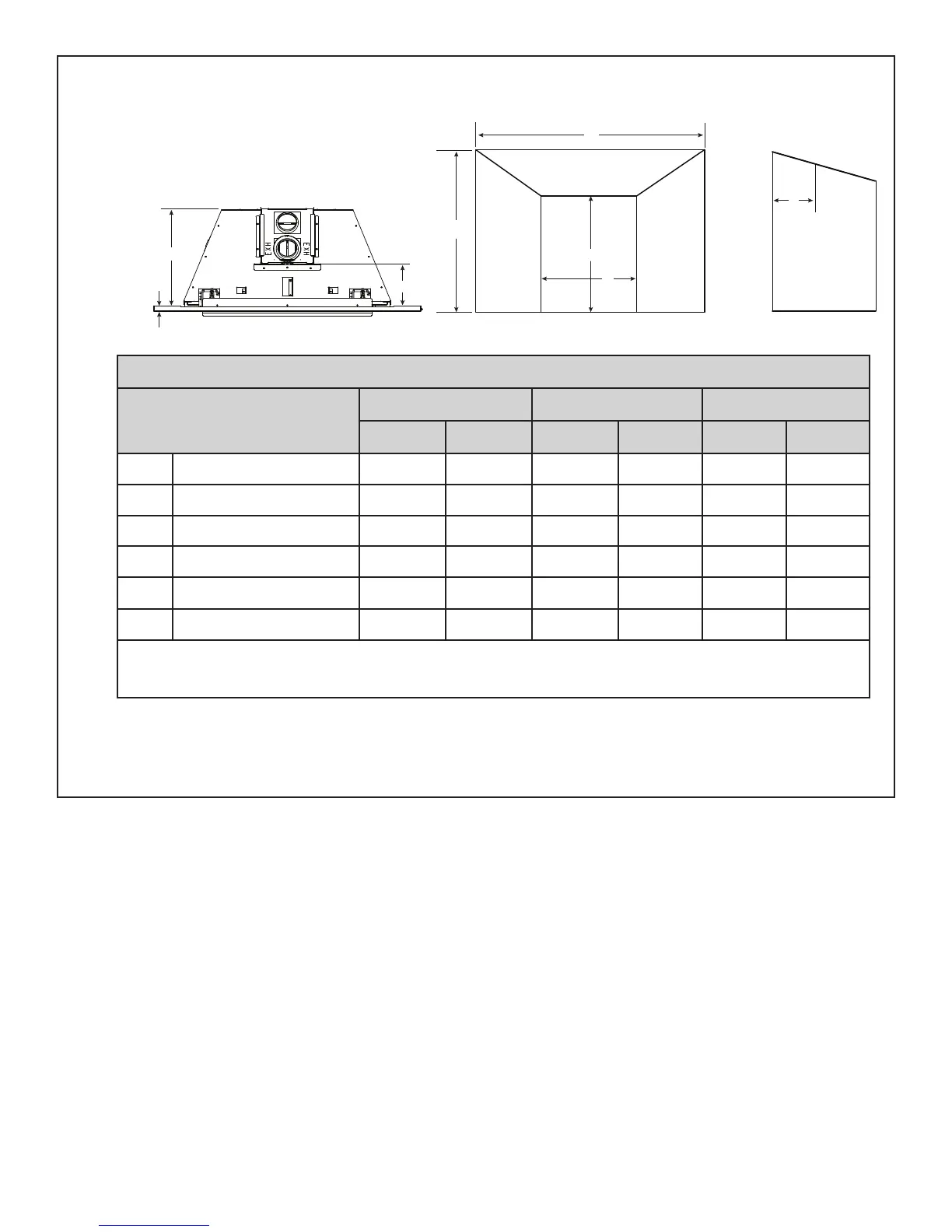

Figure 3.8 Firebox Opening - Standard Surround - 3/4 in.
In addition to these dimensions, also reference Section 3.D and 3.E.
TOP VIEW
FRONT VIEW SIDE VIEW
*Unit depth is measured to the back of the surround to give the depth needed for installation.
F
D
C
A
B
F
E
3/4 in.
MINIMUM FIREBOX OPENING
Location
25 inch 30 inch 35 inch
Inches Millimeters Inches Millimeters Inches Millimeters
A Opening Width - Rear 15-1/8 384 20-1/8 511 25-1/8 638
B Opening Width - Front 26-5/8 676 31-5/8 803 36-5/8 930
C Opening Height - Front 17-5/16 439 21 533 24-1/4 616
D Opening Height - Rear 15-1/4 387 19-3/16 487 21-11/16 551
E* Unit Opening Depth 15 381 15 381 15 381
F Venting Depth - Front 7-5/8 194 7-5/8 194 7-5/8 194
Note: Dimensions assume 1/4 inch clearance on all sides.
Note: If exhaust collar on insert and replace damper do not line up, add 4 inches (102 mm) to minimum replace
height for bends in vent pipe.
Custom Surrounds
Custom surrounds are available. See your dealer for information. Standard surrounds are 3/4 inches deep. Custom
surrounds are available up to 3 inches deep. A 3 inch deep surround would reduce the unit opening depth (E*) by 2-1/4
inches (3 in. - 3/4 in. = 2-1/4 in).
On Site Custom Surrounds
On site custom surrounds are available. See your dealer for information. On site custom surrounds are ush and have
no depth. A ush surround would increase the unit opening depth (E*) by 3/4 inch.
