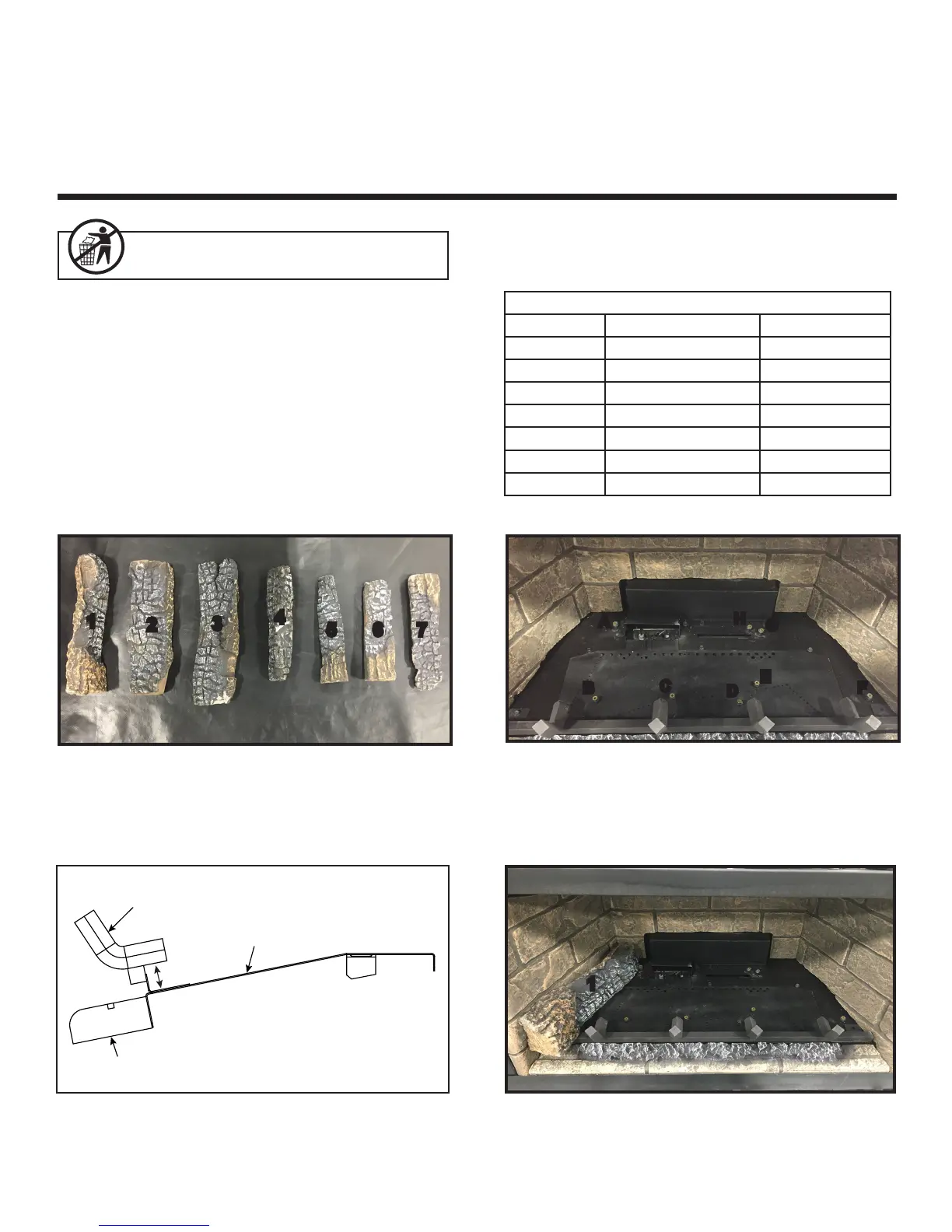

I. Install the Log Assembly
Log Set Assembly: LOGS-2537, LOGS-2538, LOGS-2539
Models: EXCURSION-I, EXCURSION-II, EXCURSION-III
LOG PLACEMENT INSTRUCTIONS
Figure 1. Log Identication - Excursion-I
Figure 4. Log #1 Installed
CAUTION: Logs are fragile, handle with care.
NOTICE: To simplify the installation process, use
Figure 1 to positively identify each individual log
before beginning installation.
Figure 2. Empty Firebox with Front Hearth Installed
LOG #1: Set log #1 against left refractory and slide back until the burnout end touches the back refractory. Rotate log so
the burnout end touches pin A and bark end touches left refractory. See Figure 4.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
Leave this manual with party responsible for use
and operation.
MODEL: EXCURSION-I
1
A
B
1
2
3
4
5 6
C
D
E
F
G
A
7
EXCURSION-I SRV LOGS
LOG ID SRV PART # MOLDED LOG #
1 SRV2537-711 37-1
2 SRV2537-712 37-2
3 SRV2537-713 37-3
4 SRV2538-714 37-4
5 SRV2537-716 37-6
6 SRV2537-717 37-7
7 SRV2537-715 37-5
H
GRATE
7/8 in.
BASE REFRACTORY
BASEPAN
Figure 3. Side Prole Grate Location Reference
