Quadra-Fire EXCURSION-I - 7 Gas Information; Fuel Conversion

31
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
A. Fuel Conversion
• Make sure the appliance is compatible with available gas
types.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specied
and approved parts.
• Reference the following diagrams for gas shut off detail
and component access.
• Reference Section 9.A to remove xed glass assembly.
7
Gas Information

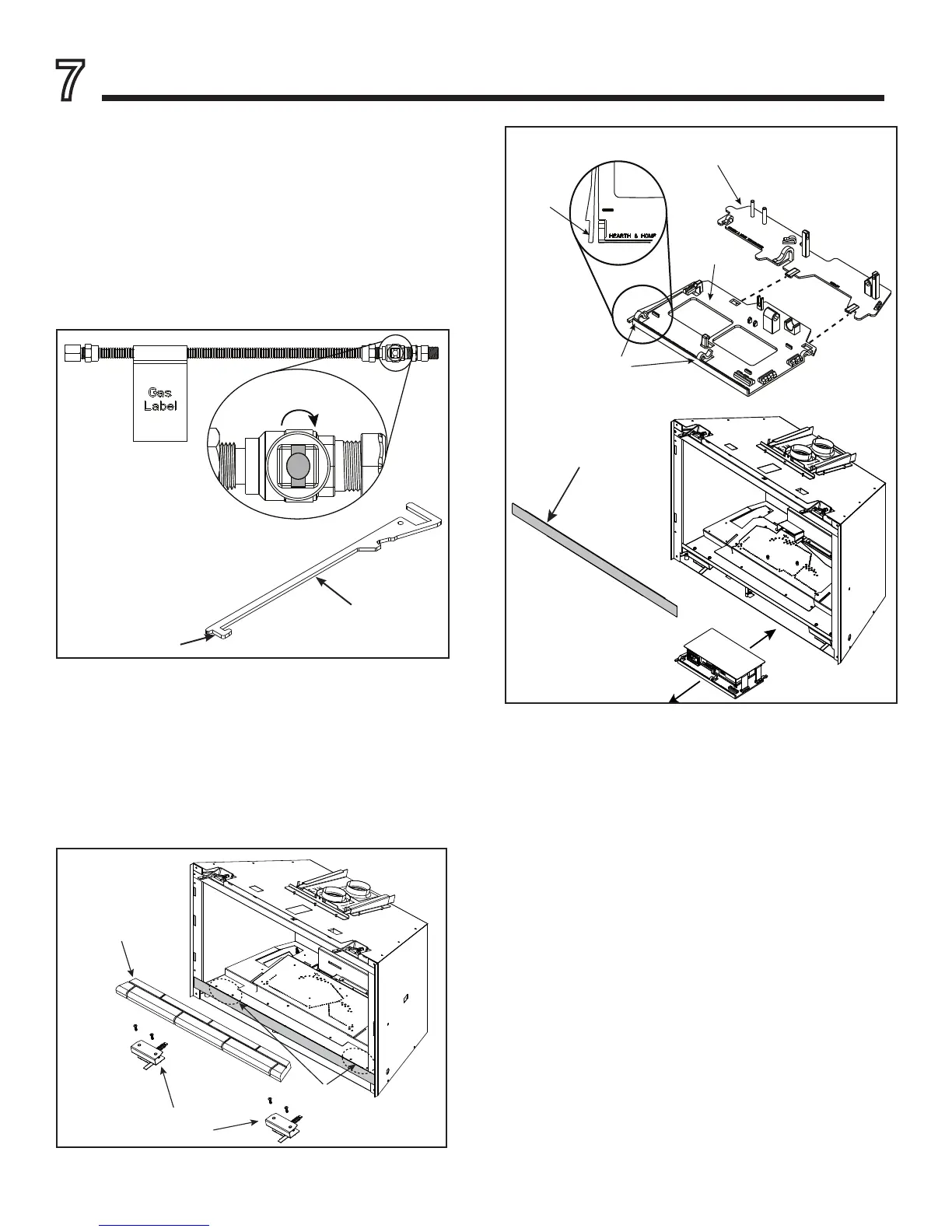

Figure 7.2 Glass Clip Assembly Removal
BASE REFRACTORY
GLASS CLIP
ASSEMBLIES
GLASS
CLIP ASSEMBY
SCREW ACCESS
Figure 7.1 Gas Shut-off
Figure 7.3 Component Tray
• Glass clip assemblies can be removed for additional
component accessibility.
• Use multi-purpose tool to assist with gas shutoff. See
Figure 7.1. The gas ball valve is in the “OFF” position
from manufacturer.
WARNING! Glass seal plate must be properly installed.
Risk of elevated component temps and carbon monoxide
exposure.
NOTE: Bottom right glass clip on 25 inch models must
be removed to gain access to controls.
OFF POSITION
(TURN KNOB CLOCKWISE)
NOTE: Use the Multi-Purpose
Tool to assist with gas shut-off.
MULTI-PURPOSE TOOL
GAS SHUT OFF
GLASS SEAL PLATE
PRESS
TAB TO
RELEASE
UNCLIP
WIRES
COMPONENT
TRAY
COMPONENT
TRAY RECEIVER
CAUTION: Be sure to reinstall the component heat shield
before ring the appliance. Components will overheat.
NOTE: The gas ball
valve is in the “OFF
position from
manufacturer.
