Appliance / Fireplace Requirements and Clearances
A. Appliance/Decorative Front Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For addditional clearances refer to Sections 3.D and 3.E.

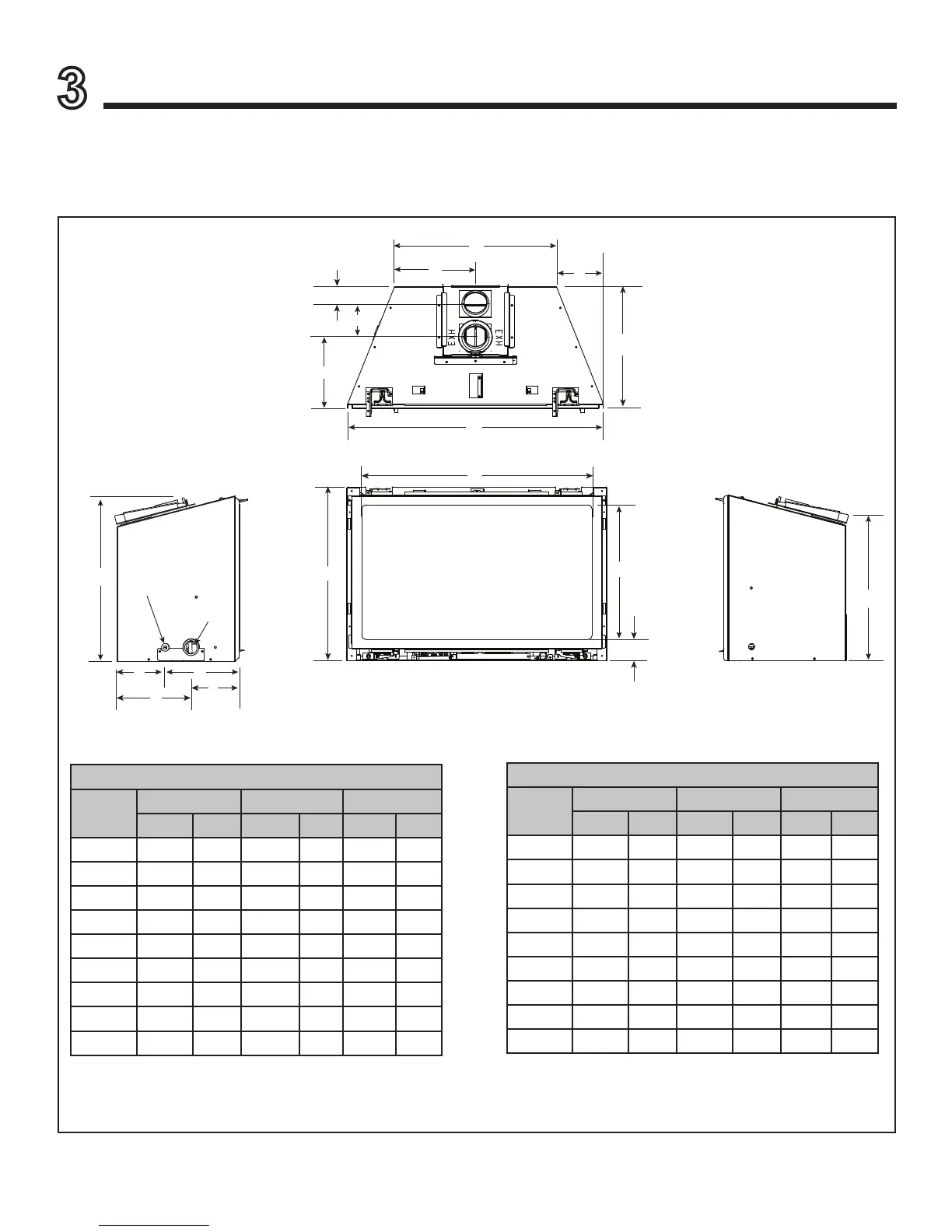

Figure 3.1 Appliance Dimensions
*Note: Location G is the appliance depth measurement, for installation depth reference Location E on
Figure 3.8.
MODEL DIMENSIONS
Location
25 in. 30 in. 35 in.
IN MM IN MM IN MM
A 14-5/8 372 19-5/8 499 24-5/8 626
B 26-1/8 664 31-1/8 791 36-1/8 918
C 22-1/2 572 27-1/2 699 32-1/2 826
D 12-7/16 316 15-15/16 405 19-3/8 492
E 17-1/16 433 20-3/4 527 24 610
F 16-5/8 422 20-1/8 511 23-5/8 600
G* 14-1/2 368 14-1/2 369 14-1/2 368
H 7-5/16 186 9-13/16 249 12-5/16 313
I 15 381 18-15/16 481 21-7/16 545
F
K
J
GAS LINE
ACCESS
C
D
E
R
I
A
H
B
G
O
N
P
Q
ELECTRICAL
ACCESS
L
M
MODEL DIMENSIONS
Location
25 in. 30 in. 35 in.
IN MM IN MM IN MM
J 5-11/16 144 5-11/16 144 5-11/16 144
K 5-7/8 149 5-7/8 149 5-7/8 149
L 9 229 9 229 9 229
M 8-3/4 222 8-3/4 222 8-3/4 222
N 2-1/8 54 2-1/8 54 2-1/8 54
O 4-1/16 103 4-1/16 103 4-1/16 103
P 5-3/4 146 5-3/4 146 5-3/4 146
Q 8-3/4 222 8-3/4 222 8-3/4 222
R 2-7/16 62 2-7/16 62 2-7/16 62
TOP VIEW
LEFT SIDE
RIGHT SIDE
FRONT VIEW
