Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

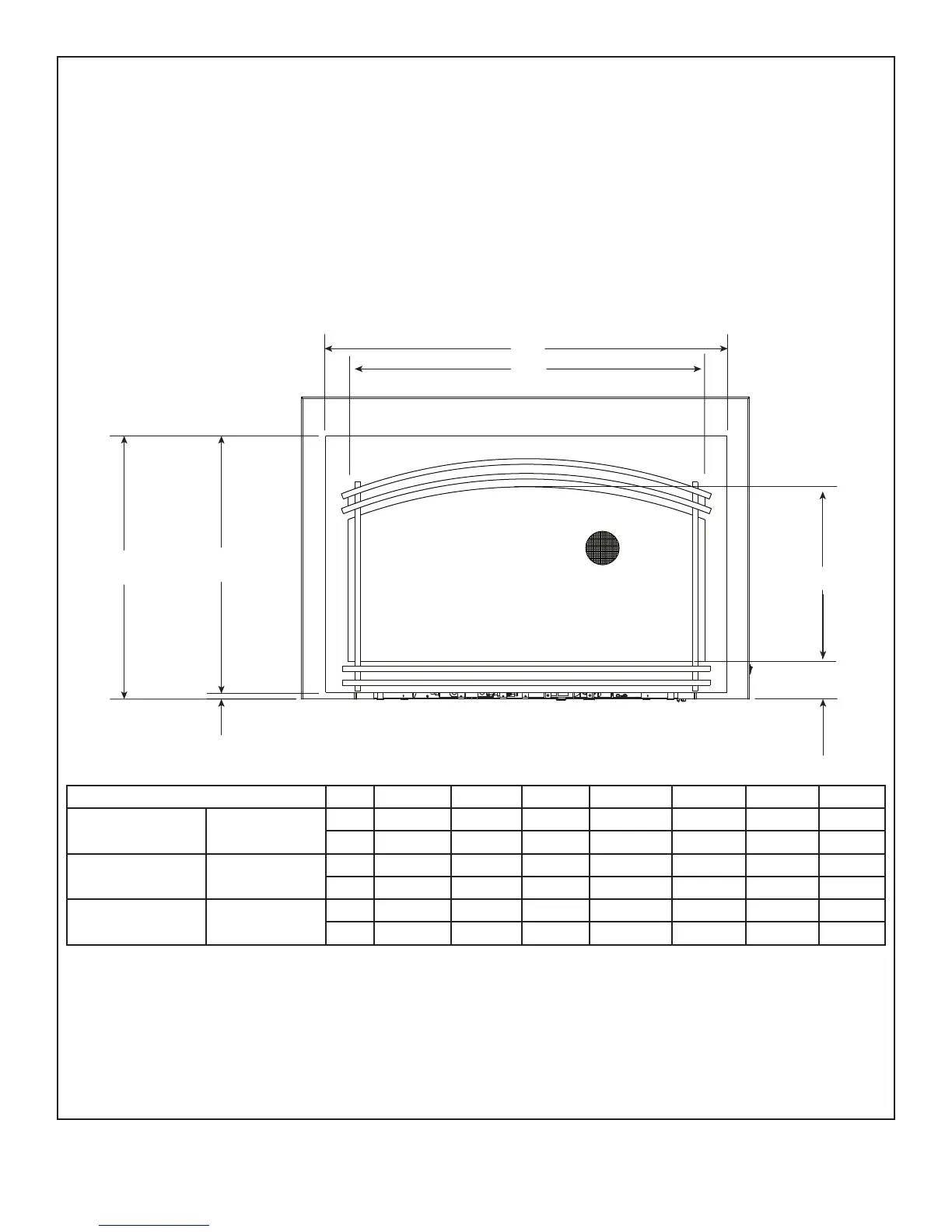

Figure 3.2 Decorative Front Dimensions - Forge Arch
DECORATIVE FRONT - FORGE ARCH
A B C D E F G
EXCURSION-I FA-EXC25
in. 27 14-3/4 3-1/4 31 20 19-1/2 1/2
mm 686 375 83 787 508 495 13
EXCURSION-II FA-EXC30
in. 32 15-3/16 3-1/4 36 23-1/2 23 1/2
mm 813 386 83 914 597 584 13
EXCURSION-III FA-EXC35
in. 37 19-3/16 3-1/4 41 27 26-1/2 1/2
mm 940 487 83 1041 686 673 13
F
D
A
B
C
G
E
*
* NOTICE: 1/2 inch gap must be maintained
or components will overheat.
