Quadra-Fire EXCURSION-I Installation Manual

10
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

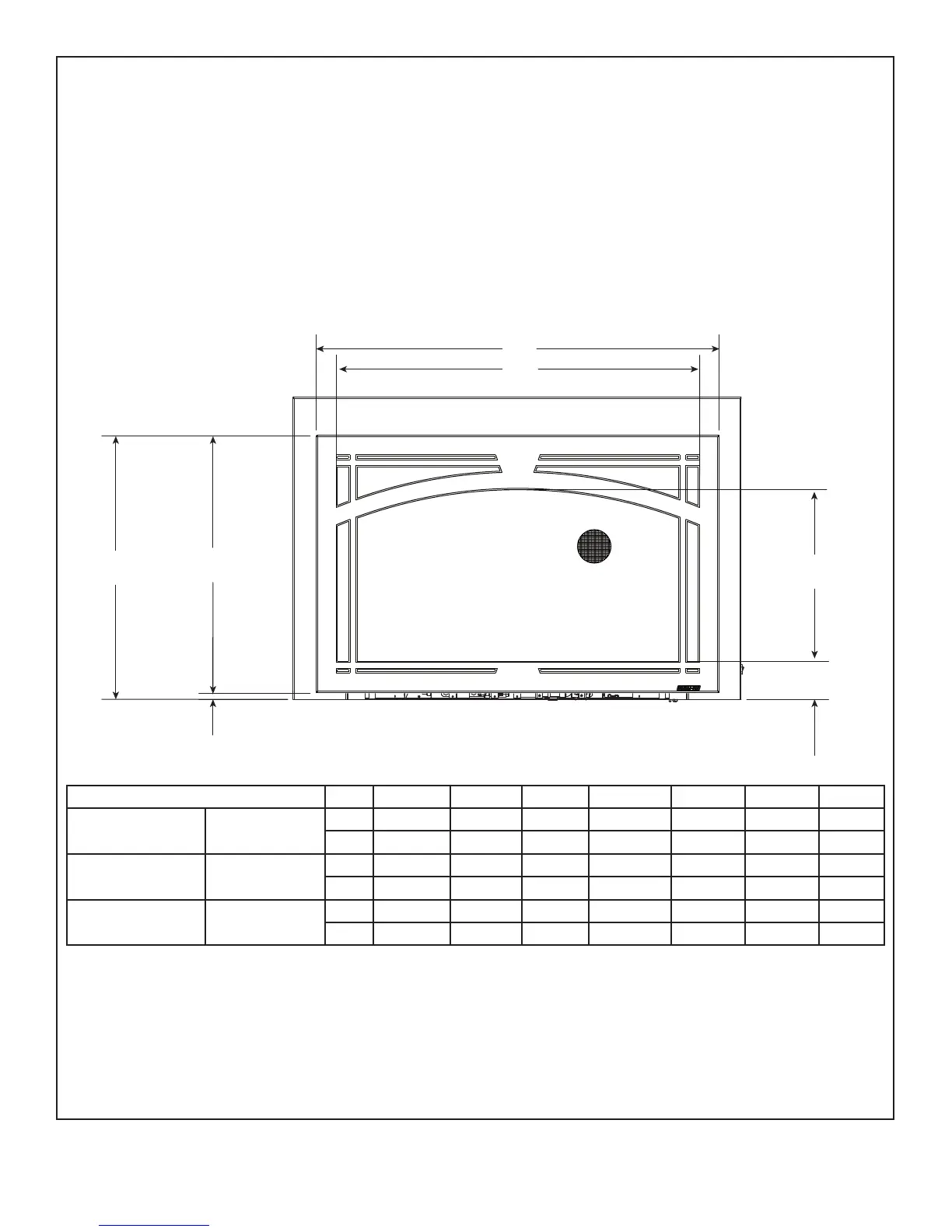

Figure 3.3 Decorative Front Dimensions - Tuscan Arch
DECORATIVE FRONT - TUSCAN ARCH
A B C D E F G
EXCURSION-I TA-EXC25
in. 27-5/16 12-1/16 3-1/4 31 20 19-1/2 1/2
mm 694 306 83 787 508 495 13
EXCURSION-II TA-EXC30
in. 32-5/16 15-9/16 3-1/4 36 23-1/2 23 1/2
mm 821 395 83 914 597 584 13
EXCURSION-III TA-EXC35
in. 33-9/16 18-13/16 3-1/4 41 27 26-1/2 1/2
mm 852 478 83 1041 686 673 13
F
D
A
B
C
G
E
*
* NOTICE: 1/2 inch gap must be maintained
or components will overheat.

Quadra-Fire EXCURSION-I Specifications

General

Brand	Quadra-Fire
Model	EXCURSION-I
Category	Indoor Fireplace
Language	English
