Quadra-Fire EXCURSION-I Installation Manual

11
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

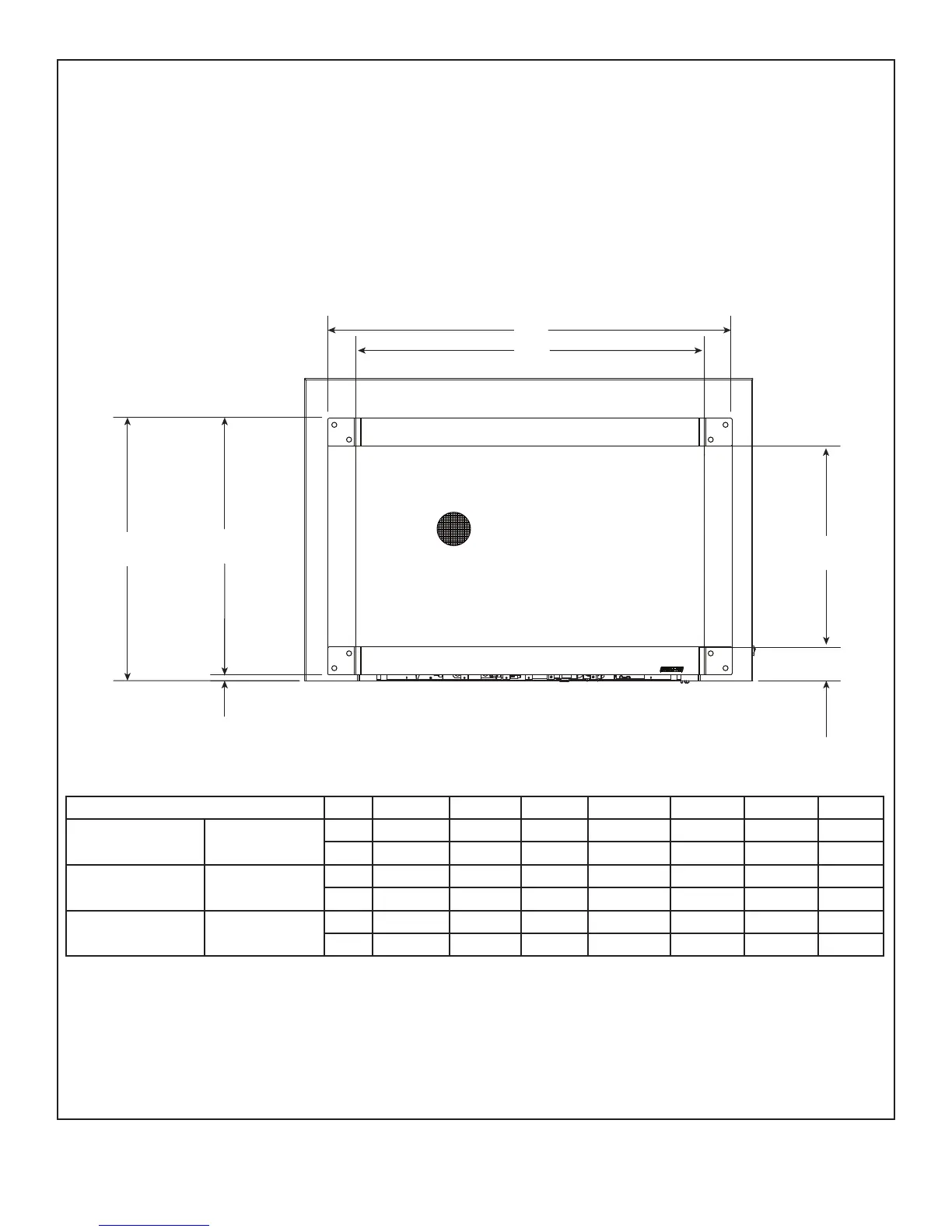

Figure 3.4 Decorative Front Dimensions - Mission Full View
DECORATIVE FRONT - MISSION FULL VIEW
A B C D E F G
EXCURSION-I MFV-EXC25
in. 26-1/4 14-1/2 3 31-1/4 20 19-1/2 1/2
mm 667 368 76 794 508 495 13
EXCURSION-II MFV-EXC30
in. 31-1/4 18 3 36-1/4 23-1/2 23 1/2
mm 794 457 76 921 597 584 13
EXCURSION-III MFV-EXC35
in. 36-1/4 21-1/2 3 41-1/4 27 26-1/2 1/2
mm 921 546 76 1048 686 673 13
F
D
A
B
C
G
E
*
* NOTICE: 1/2 inch gap must be maintained
or components will overheat.
