Quadra-Fire EXCURSION-I Installation Manual

12
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19

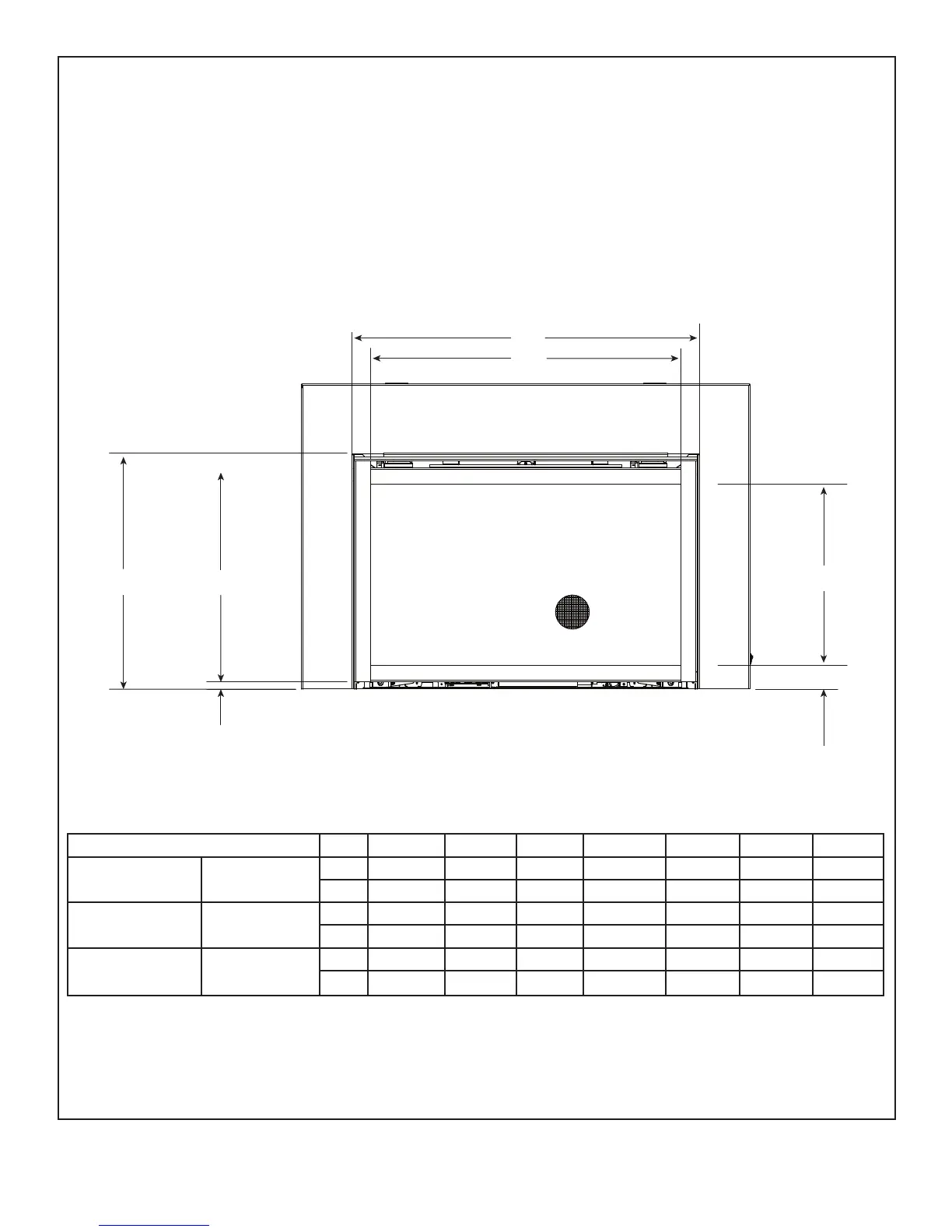

Figure 3.5 Decorative Front Dimensions - Inside Fit
DECORATIVE FRONTS - INSIDE FIT
A B C D E F G
EXCURSION-I INFIT-25
in. 22-5/8 12-9/16 1-7/8 25-5/8 17 16-1/2 1/2
mm 575 319 48 651 432 420 13
EXCURSION-II INFIT-30
in. 27-5/8 16-1/16 1-7/8 30-5/8 20-1/2 20 1/2
mm 702 408 48 778 521 508 13
EXCURSION-III INFIT-35
in. 32-5/8 19-9/16 1-7/8 35-5/8 24 23-1/2 1/2
mm 829 497 48 905 610 597 13
F
D
A
B
C
G
E
*
* NOTICE: 1/2 inch gap must be maintained
or components will overheat.
