Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
2532-936

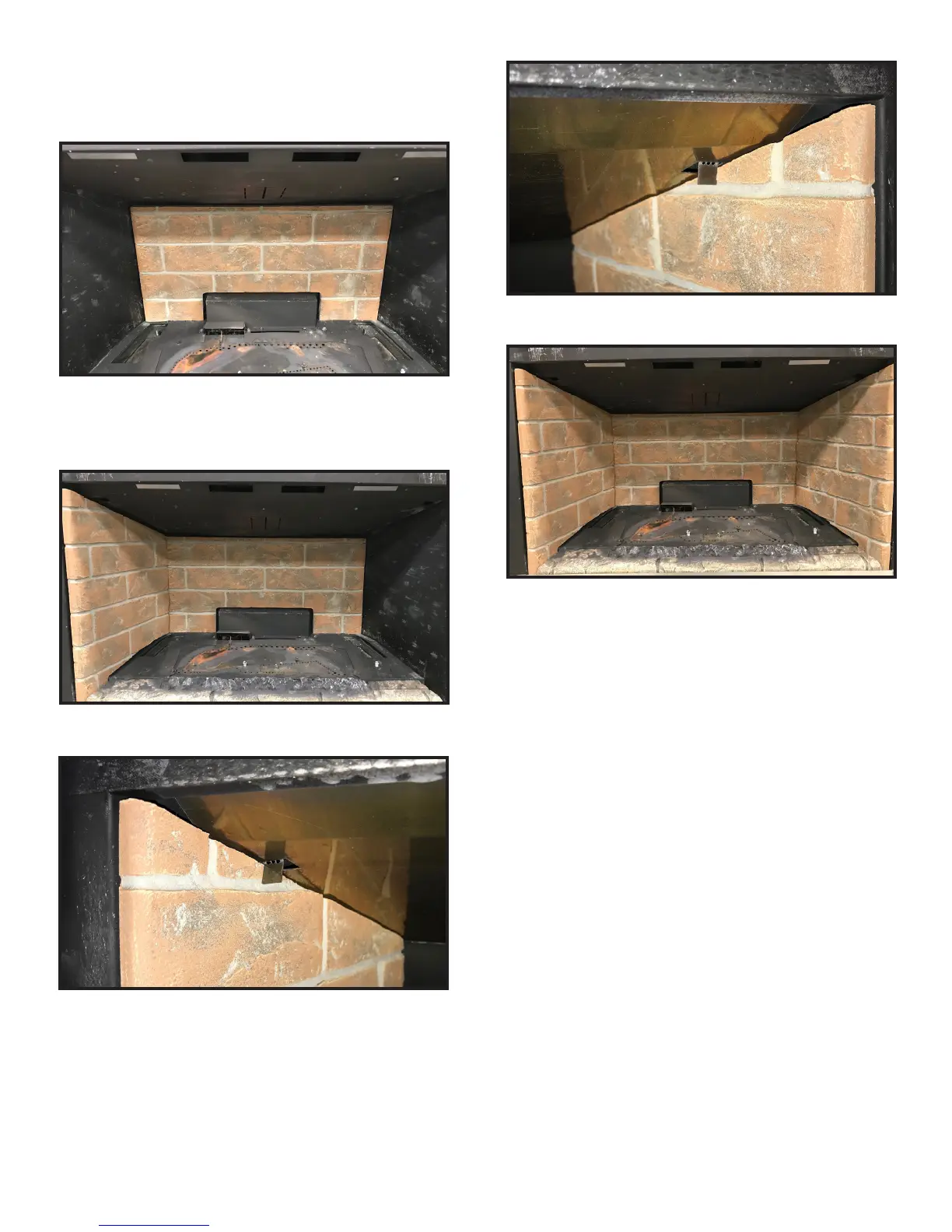

Figure 4 Back Refractory Installed
Figure 5 Left Refractory Installed
Figure 6 Left Refractory Handbend Tab
Figure 7 Right Refractory Handbend Tab
Figure 8 Refractory Kit Installed
3. Install left and right refractory, bend down tabs to hold
in place. See Figures 5, 6 & 7.
2. Install back refractory. See Figure 4.
Be sure to hold back refractory in upright position until
side panels get installed.
