Target IP Mapping List
The TargetIPMapping list displays the following information for all mapped IP addresses:
l TargetDataIP - The mapped target data IP address.
l TargetReplicationIP - The replication IP address to which the data IP address is mapped.
By default, items in the list are grouped by target replication IP address. To turn off grouping, click the arrow
to the right of a column heading and clear the Showingroups check box.
Note:To update the list with the latest information, click Refresh.
Mapping a Target IP Address
Add mapping for a target data IP address to route all network traffic sent to the address to the specified
replication IP address instead.
To map a target IP address:
1. Click Add.
The AddTargetDataIPMappingwindow displays (see Figure 164 below).

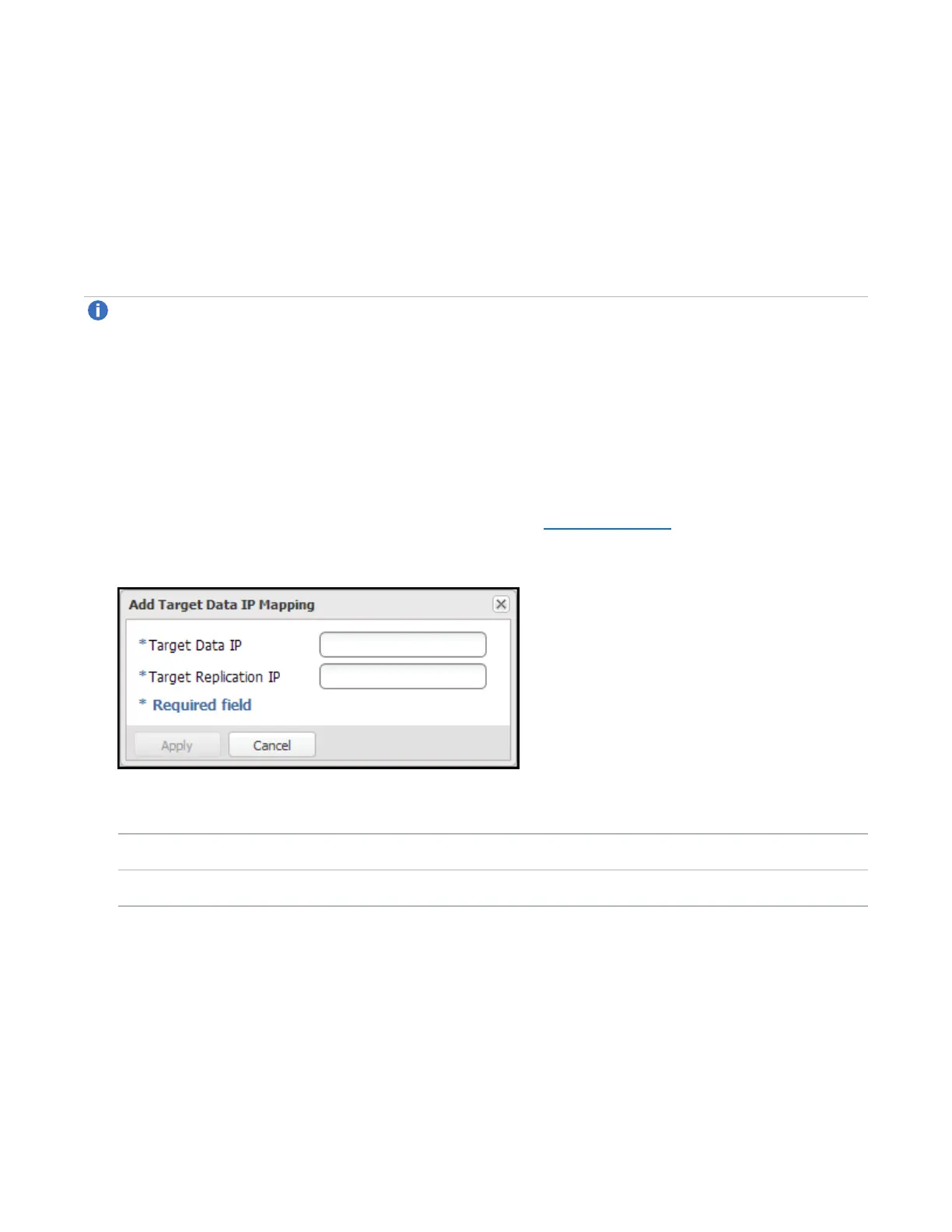

Figure164:Add Target Data IP Mapping
2. Enter information about the mapping:
TargetDataIP The target data IP address to map.
TargetReplicationIP The replication IP address to map the data IP address to.
3. Click Apply.
Editing a Mapped IP Address
Edit a mapped IP address to route traffic sent to the target data IP address to a different replication IP
address.
To edit a mapped IP address:
