Quantum QX Series

Chapter 2: Installing the Chassis
Install Drives Into the QXS-456 Drive Chassis
QX and QXS Setup Guide 64

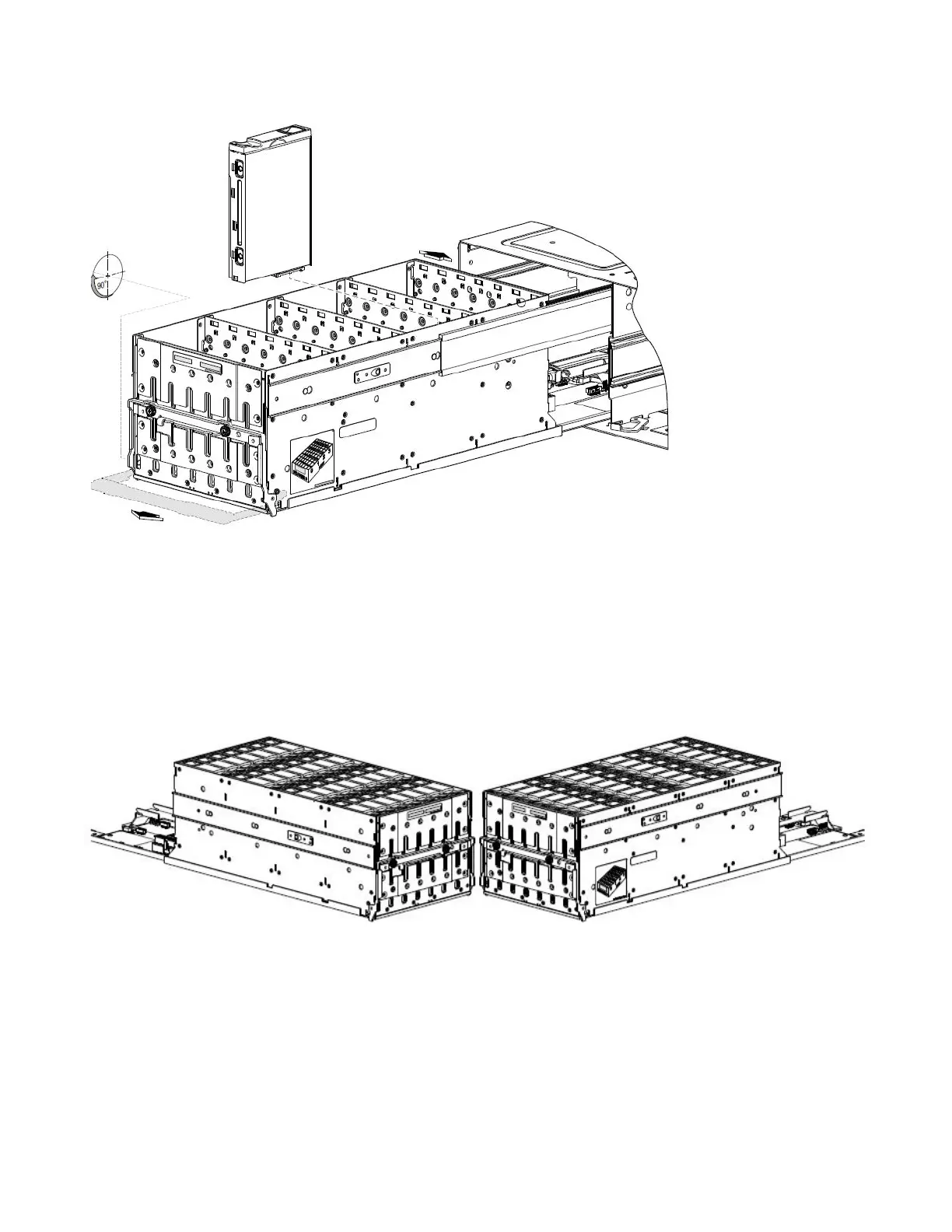

Theaboveimageillustratestheinstallationofdrivesintoadrawer.Whenorientingthedrivemodulefor
insertionintothetargetdrawer,notethefollowing:
l Thedriveinstallationprocedureappliestotheleftdrawer(Drawer0)andtherightdrawer(Drawer1).
l Driverowandslotnumberingforeachdrawerisprovidedonthestickerlaminatedtotheexteriorwallof
eachdrawer.
Diagram3:Drawer0FullyPopulated
TheaboveimageillustratesDrawer0fullypopulatedwithdrives.Notethefollowing:
l Staggeredelevationofsliderails
l Locationsoflaminateddrawerrow/slot-numberingreferencediagrams
l Orientationofinstalleddrives
