Queclink GV320 User Manual

GV320 User manual
TRACGV320UM001 - 11 -

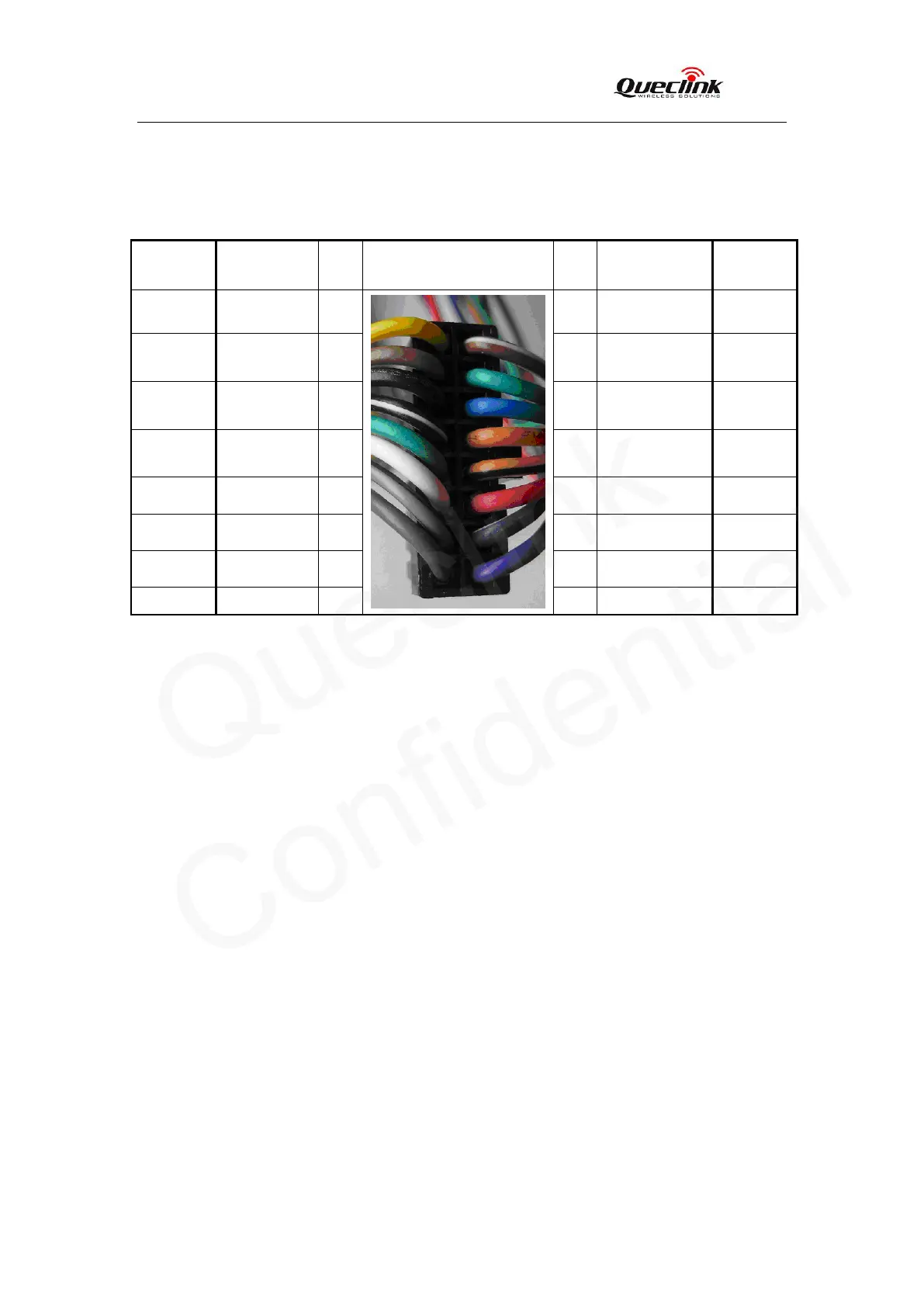

Table 5. GV320 User Cable Colour definition
Definition
Color
PIN
No
Cable
PIN
No
Color
Definition
OUT2 Yellow 8 16 Brown/White AD2
OUT3 Brown 7 15 Green AD1/IN3
GND Black 6 14 Blue OUT1
TXD White/Black 5 13 Orange IN1
RXD Green 4 12 Orange/Black IN2
IGN White 3 11 Red PWR
AGND Gray/ Black 2 10 Purple/White EARN
MICP Gray 1 9 Purple EARP
2.4. GV320 User Cable Colou
r
Queclink
Confidential

Queclink GV320 Specifications

General

Brand	Queclink
Model	GV320
Category	GPS
Language	English
