There are three digital outputs on GV320. All are of open drain type and the maximum
drain current is 150 mA. Each output has the built-in over current and recovery PTC fuse

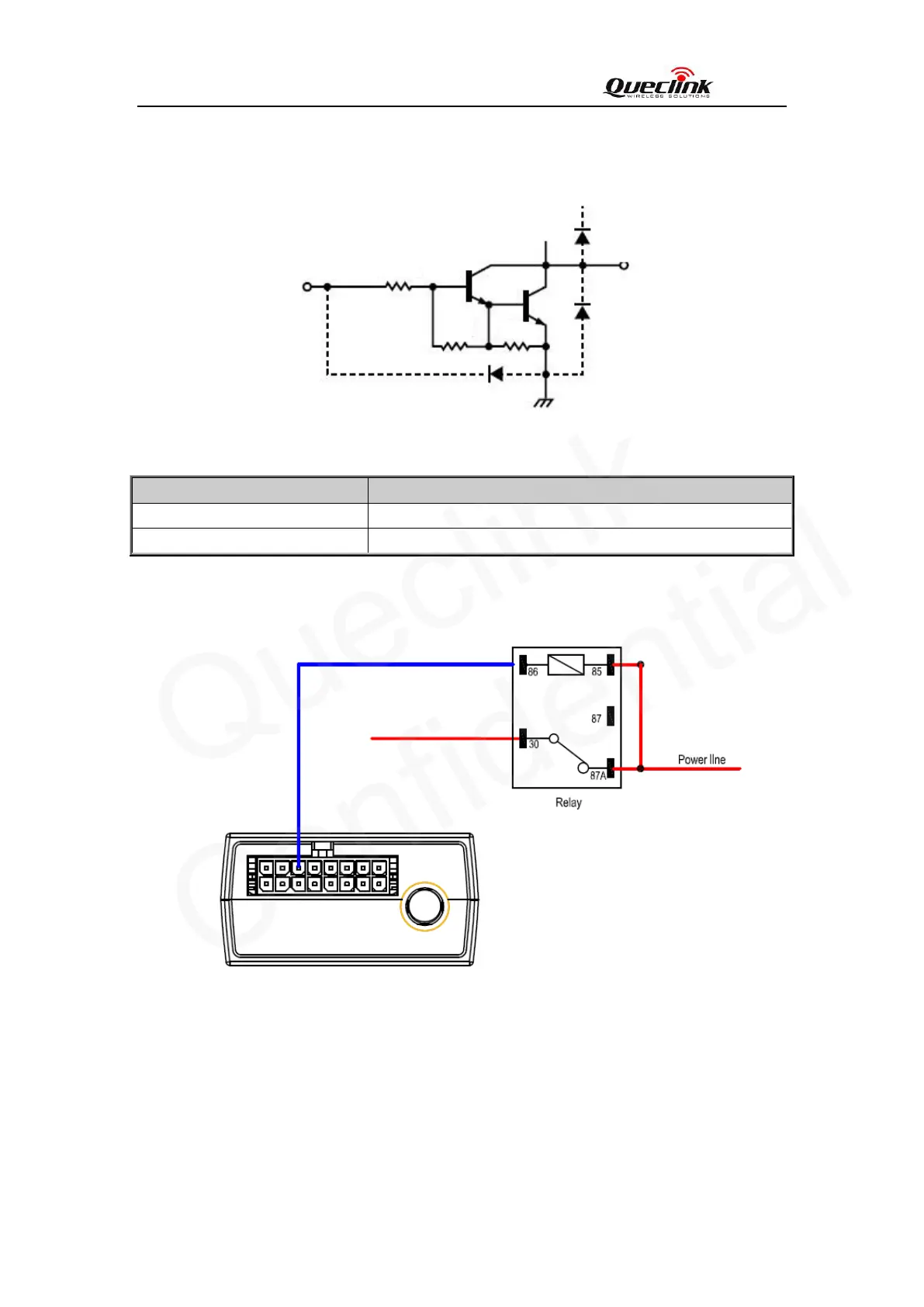

Figure 13. Digital Output Internal Drive Circuit
Table 9. Electrical Characteristics of Ddigital Outputs
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain
Figure 14. Typical Connection with Relay
