GV320 User manual
TRACGV320UM001 - 17 -

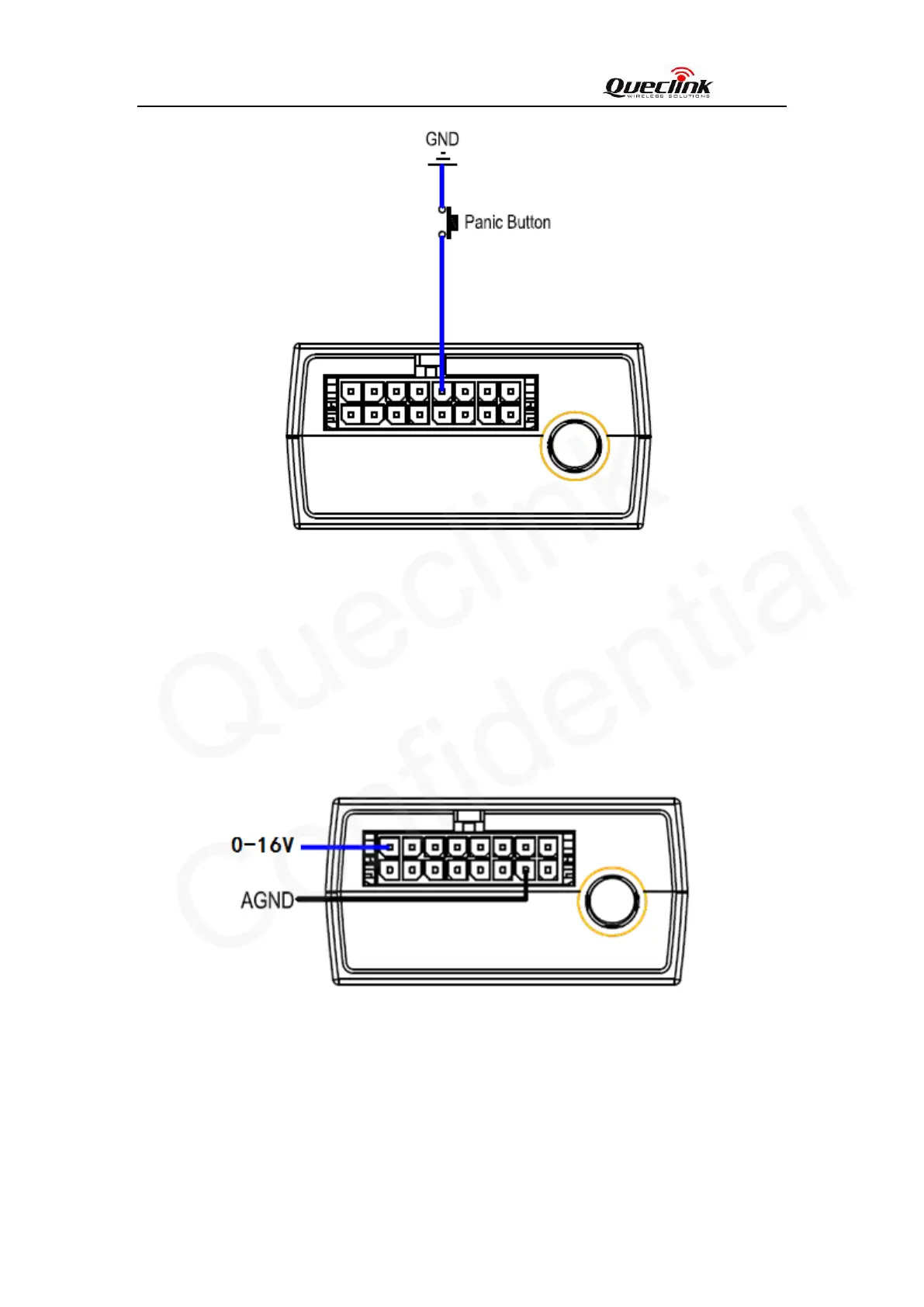

Figure 11. Typical Digital Input Connection
There are two analog inputs on GV320, the analog input voltage range is from 0 to 16V.
The following diagram shows the recommended connection.
Figure 12. Typical Analog Input Connection
Note:
PIN 15 is an multifunction pin: it can be configured as a digital input or an analog input.
3.10. Analog Inputs
3.11. Digital Output
