Queclink GV320 - 3.3. Installing a SIM Card; 3.4. Installing the Internal Backup Battery

GV320 User manual
TRACGV320UM001 - 13 -
Open the case and ensure the unit is not powered (unplug the 16Pin cable and switch the
internal battery to off position). Slide the holder right to open the SIM card. Insert the SIM
card into the holder as shown below with the gold-colored contact area facing down taking
care to align the cut mark. Close the SIM card holder. Close the case.

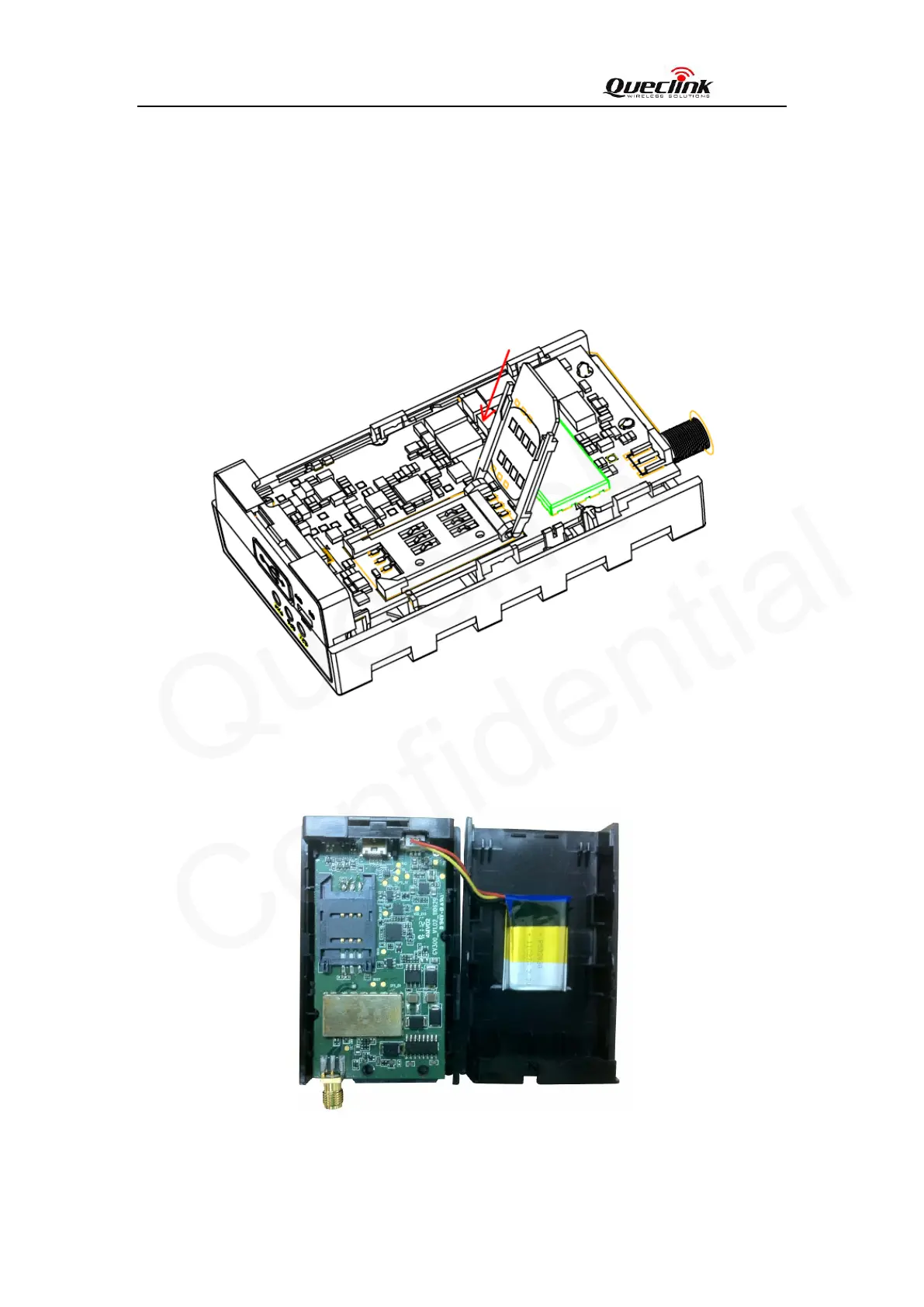

Figure 5. SIM Card Installation
Figure 6. Backup Battery Installation
There is an internal backup Li-ion battery,
3.3. Installing a SIM C
ard
3.4. Installing the Internal Backup Battery
