LTE Standard Module Series

EG91 Series Hardware Design

EG91_Series_Hardware_Design 49 / 106

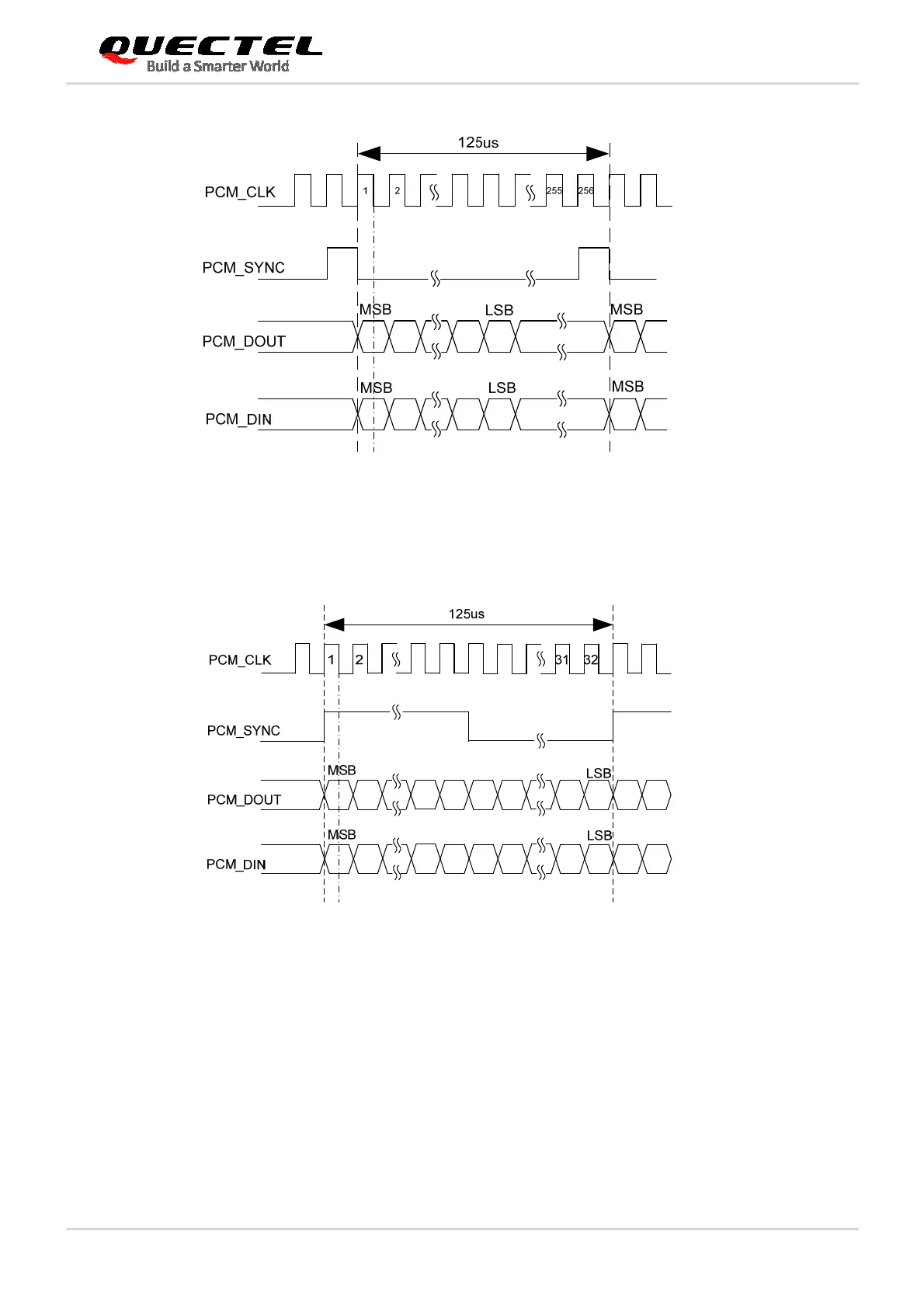

Figure 22: Primary Mode Timing

Figure 23: Auxiliary Mode Timing

The following table shows the pin definition of PCM and I2C interfaces which can be applied on audio

codec design.
