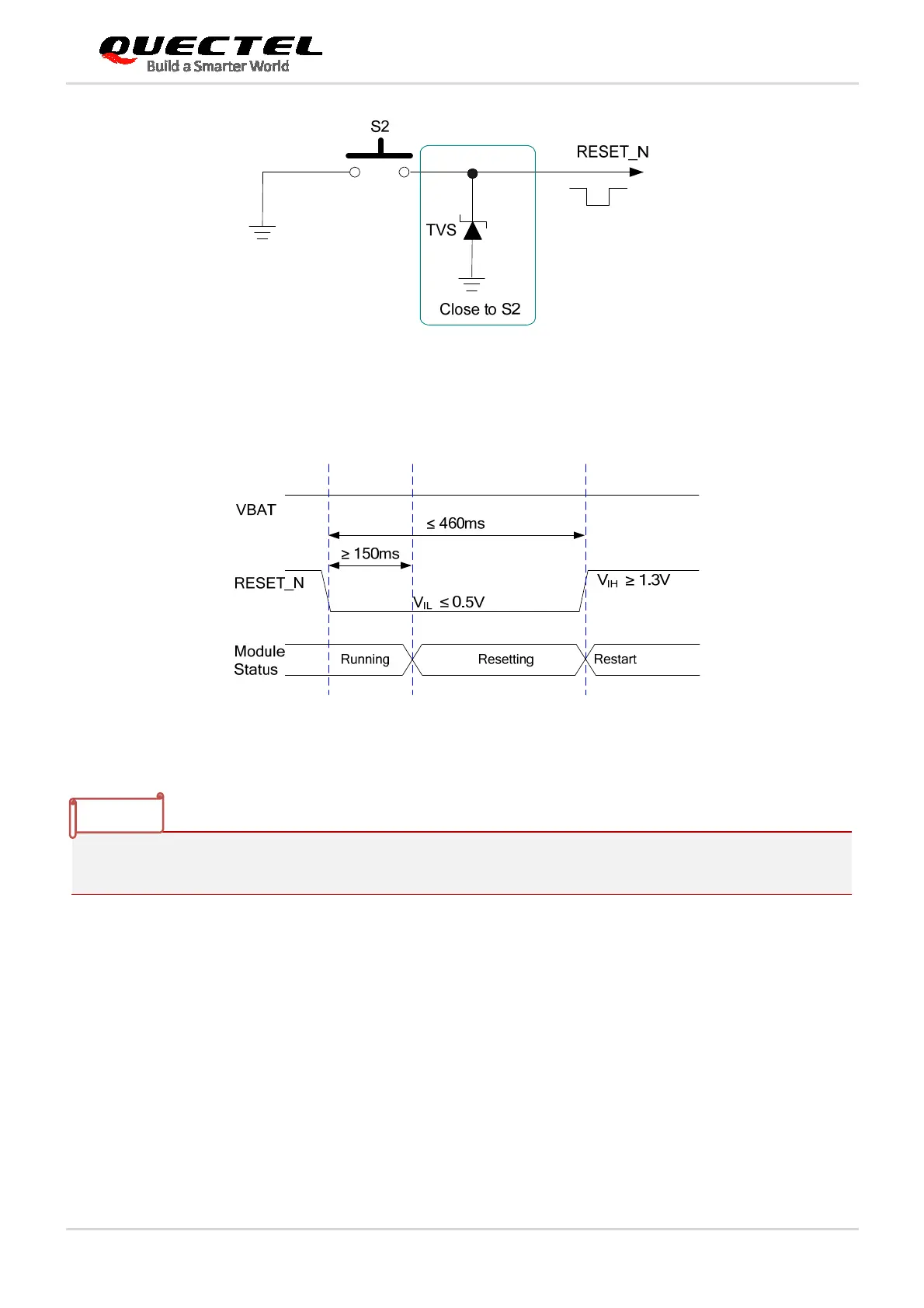

Figure 15: Reference Circuit of RESET_N by Using Button
The reset scenario is illustrated in the following figure.
Figure 16: Timing of Resetting Module
1. Use RESET_N only when turning off the module by AT+QPOWD command and PWRKEY pin failed.
2. Ensure that there is no large capacitance on PWRKEY and RESET_N pins.
3.9. (U)SIM Interfaces
EG91 series module provides two (U)SIM interfaces, and only one (U)SIM card can work at a time. The
(U)SIM1 and (U)SIM2 cards can be switched by AT+QDSIM command. For more details, please refer to
document [2].
The (U)SIM interfaces circuitry meet ETSI and IMT-2000 requirements. Both 1.8V and 3.0V (U)SIM cards
are supported.
