Quectel EG91 Series User Manual

LTE Standard Module Series
EG91 Series Hardware Design
EG91_Series_Hardware_Design 66 / 106

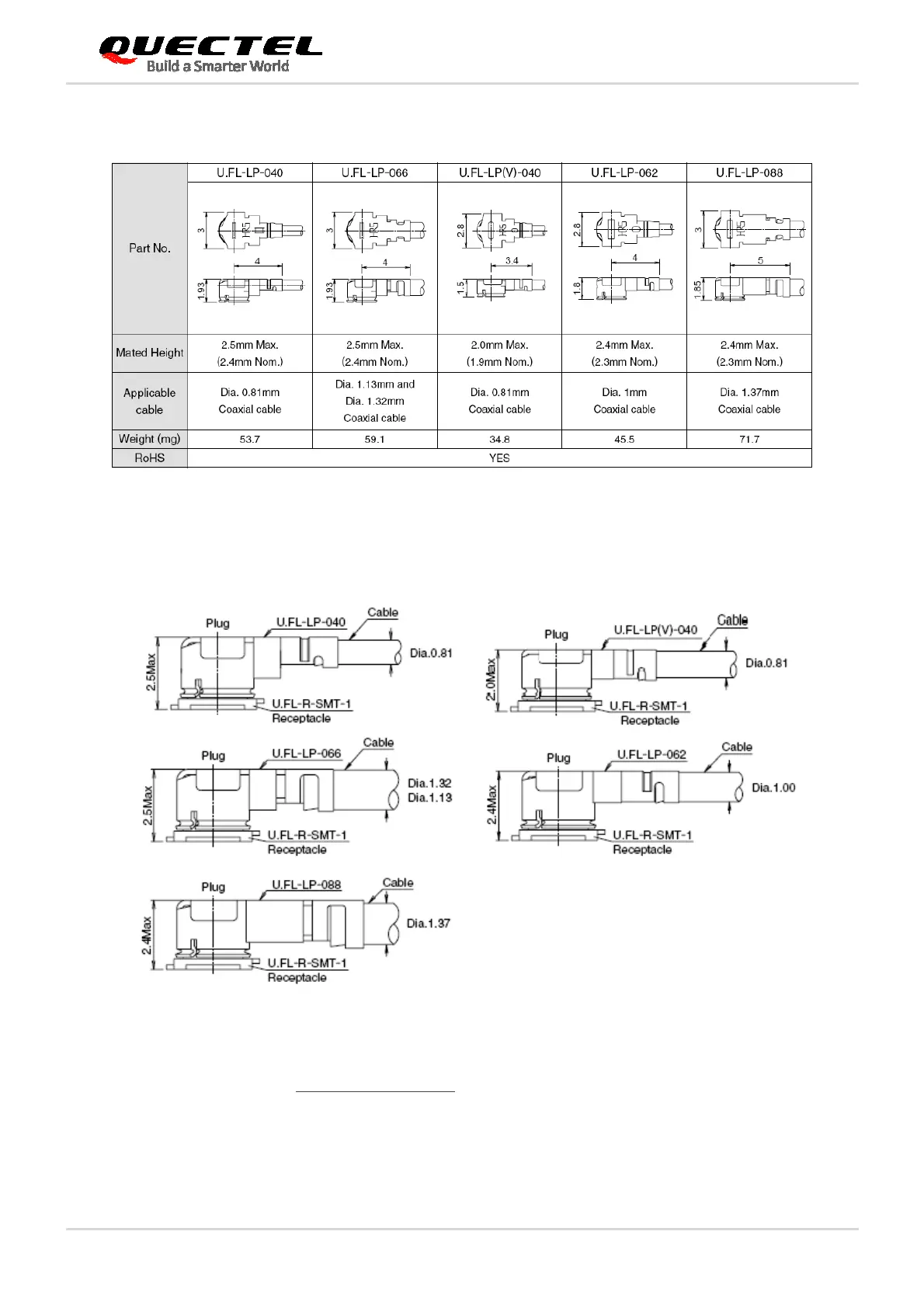

U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 37: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connector.
Figure 38: Space Factor of Mated Connector (Unit: mm)
For more details, please visit http://www.hirose.com
.
