Quectel M10 Hardware Design

M10 Hardware Design
M10_HD_V3.0 - 55 -
Table 15: Pin description of Amphenol SIM card holder
Name Pin Function
SIM_VDD C1 SIM Card Power supply
SIM_RST C2 SIM Card Reset
SIM_CLK C3 SIM Card Clock
GND C5 Ground
VPP C6 Not Connect
SIM_DATA C7 SIM Card data I/O
For 8-pin SIM card holder, it is recommended to use Molex 91228. Please visit
http://www.molex.com for more information.

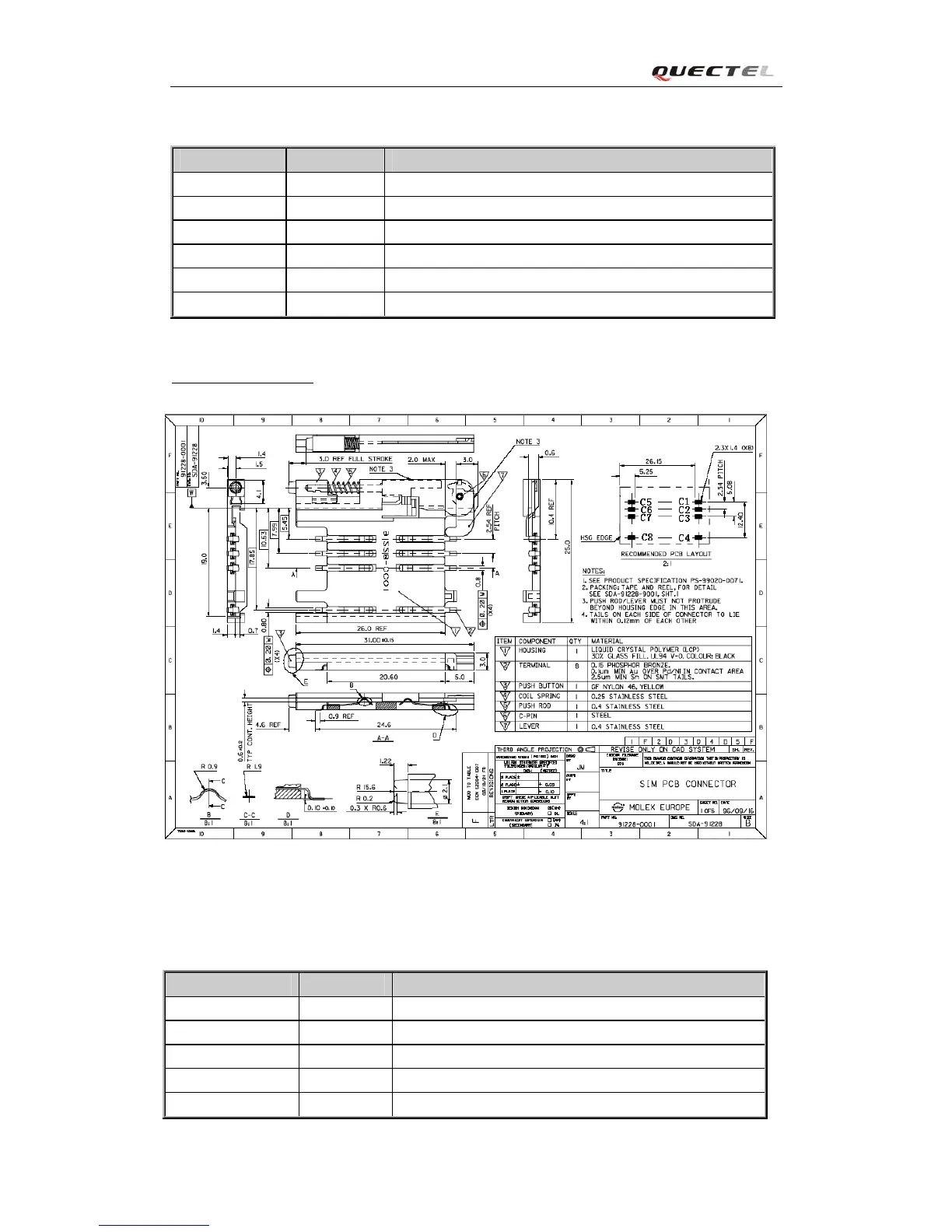

Figure 36: Molex 91228 SIM card holder
Table 16: Pin description of Molex SIM card holder
Name Pin Function
SIM_VDD C1 SIM Card Power supply
SIM_RST C2 SIM Card Reset
SIM_CLK C3 SIM Card Clock
SIM_PRESENCE C4 SIM Card Presence Detection
GND C5 Ground
