Quectel RG255C-GL User Manual

5G Module Series
RG255C-GL_Mini_PCIe_Hardware_Design 30 / 57
4.5.1. RI
The RI signal can be used to wake up the host. When a URC returns, there will be the following behaviors
on the RI pin after executing AT+QCFG="risignaltype","physical".
High
Low
120 ms
URC return

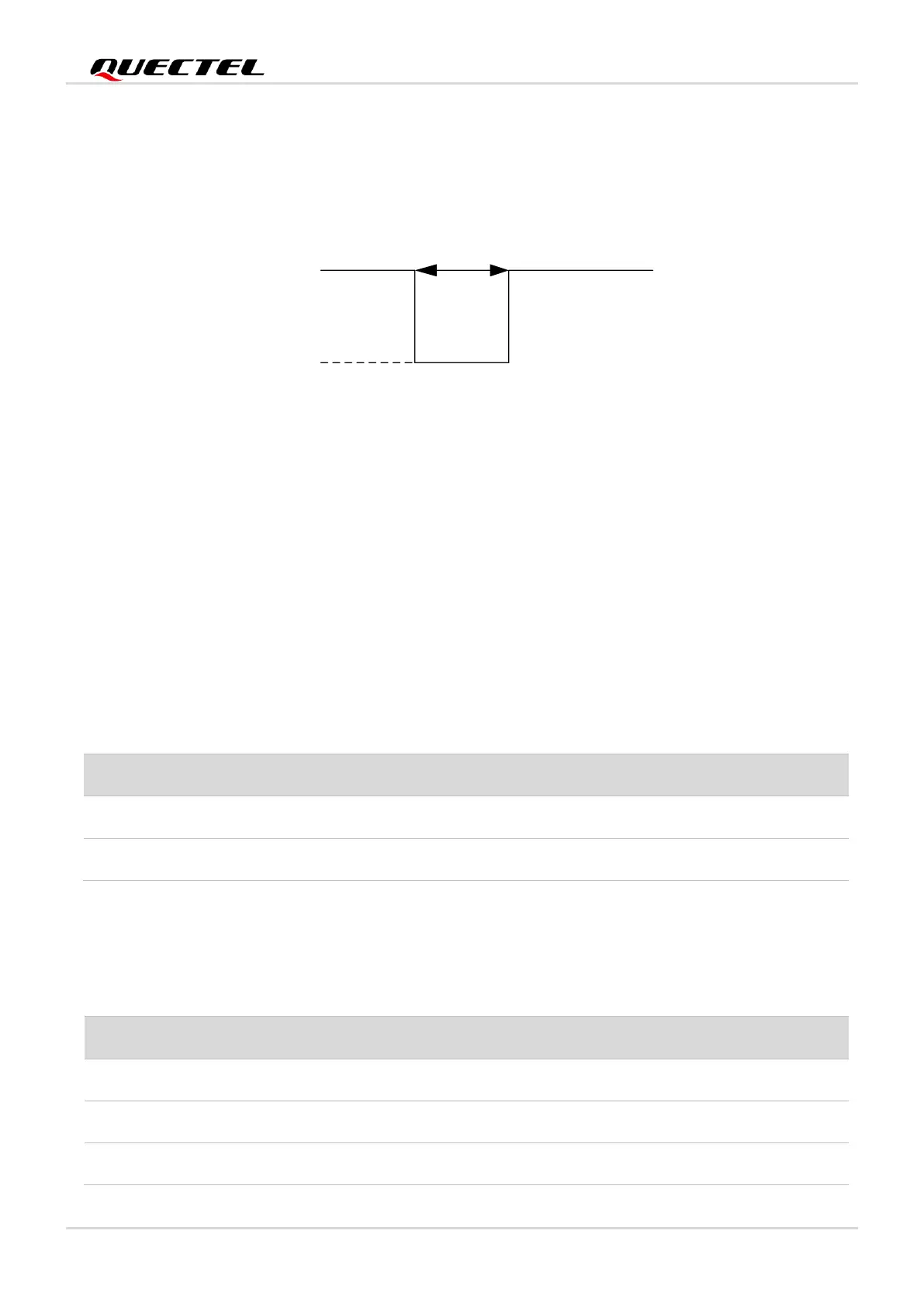

Figure 12: RI Behaviors
4.5.2. W_DISABLE#
The module provides a W_DISABLE# signal to disable or enable the RF function (excluding GNSS). The
W_DISABLE# pin is pulled up by default. Its control function for airplane mode is disabled by default, and
AT+QCFG=“airplanecontrol”,1 can be used to enable the function. Driving the pin low after its control
function for airplane mode is enabled by AT command, which can make the module enter the airplane
mode.
Table 13: Airplane Mode Controlled by Hardware Method
The RF function can also be enabled or disabled through AT+CFUN, and the details are as follows.
Table 14: Airplane Mode Controlled by Software Method
W_DISABLE#
RF Function Status
Module Operating Mode
High level
RF enabled
Normal operation
Low level
RF disabled
Airplane mode
AT+CFUN=?
RF Function Status
Module Operating Mode
0
RF and (U)SIM disabled
Minimum functionality mode
1
RF enabled
Normal operation
4
RF disabled
Airplane mode
