5G Module Series
RG255C-GL_Mini_PCIe_Hardware_Design 41 / 57
5.3.1. Recommended RF Connector for Installation
5.3.1.1. Assemble Coaxial Cable Plug Manually

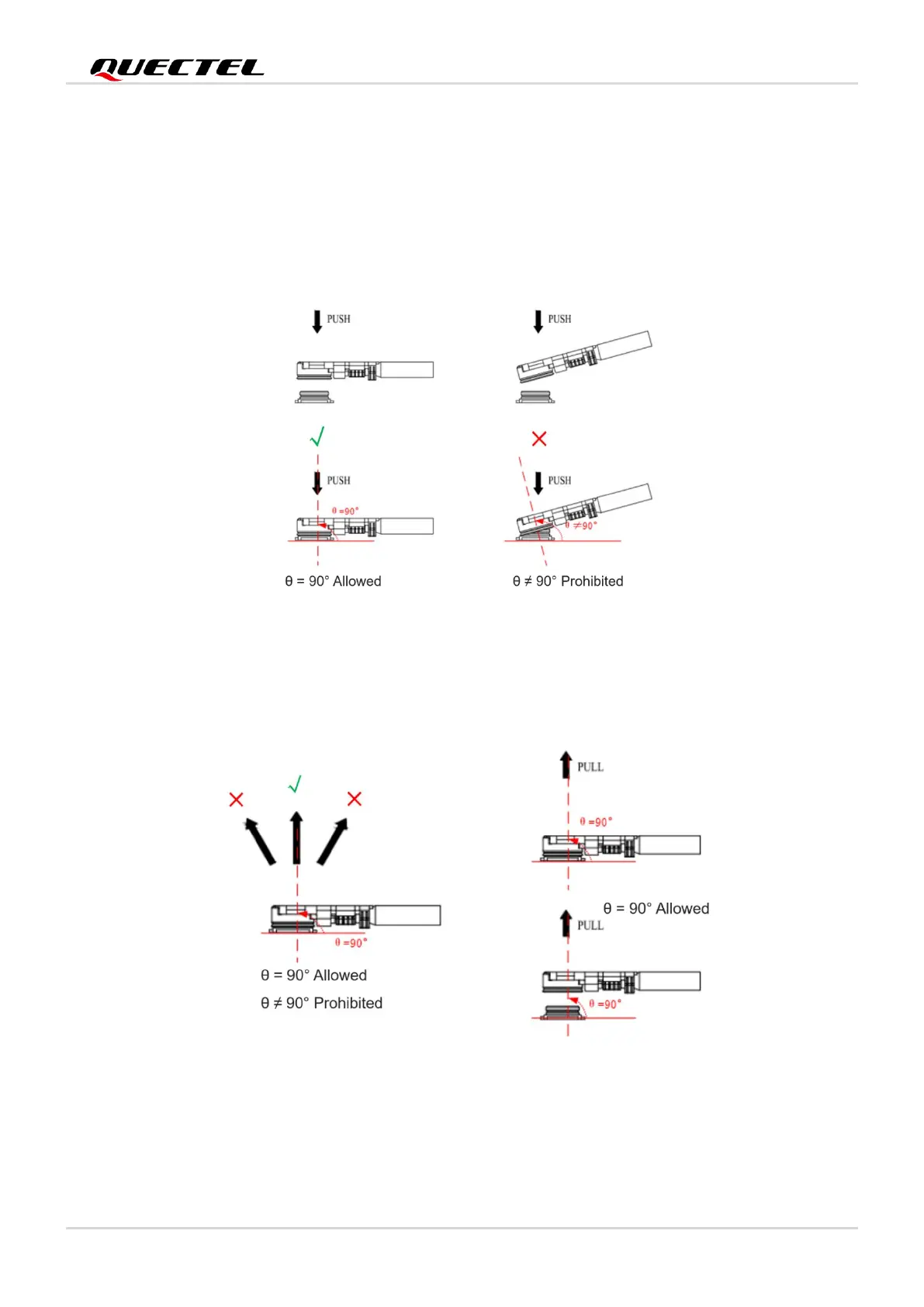

The illustration for plugging in a coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90°
is not.
Figure 41: Plug in a Coaxial Cable Plug
The illustration of pulling out the coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is
not.
Figure 42: Pull out a Coaxial Cable Plug
