5G Module Series
RG255C-GL_Mini_PCIe_Hardware_Design 50 / 57
7.2. Standard Dimensions of Mini PCI Express
RG255C-GL Mini PCIe adopts a standard Mini PCI Express connector which compiles with the
directives and standards listed in the PCI Express Mini Card Electromechanical Specification
Revision 1.2. The following figure takes the Molex 679105700 as an example.

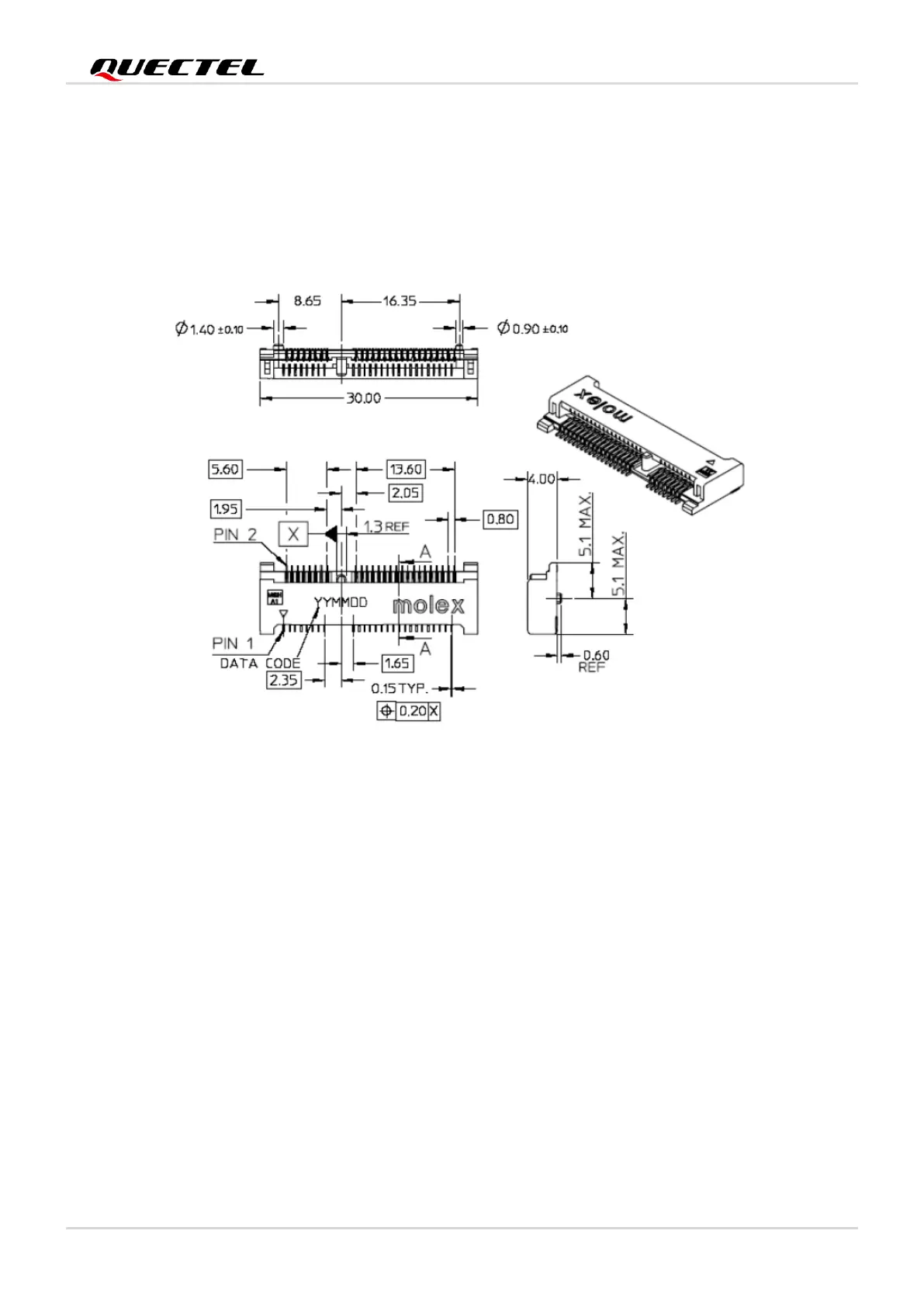

Figure 22: Standard Dimensions of Mini PCI Express Connector (Molex 679105700)
