Quectel RM520N-GL User Manual

5G Module Series
RM520N-GL_Hardware_Design 52 / 84
4.4.3. LED_WWAN#
The LED_WWAN# signal is used to indicate RF status of the module, and its sink current is up to 10 mA.
To reduce current consumption of the LED, a current-limited resistor must be placed in series with the
LED, as illustrated in the figure below. The LED is ON when the LED_WWAN# signal is at low level.
Module
LED_WWAN #
PMIC
10
VCC(Typ. 3.7V)
R1
330 Ω
LED1
2, 4
70,72,74
VCC

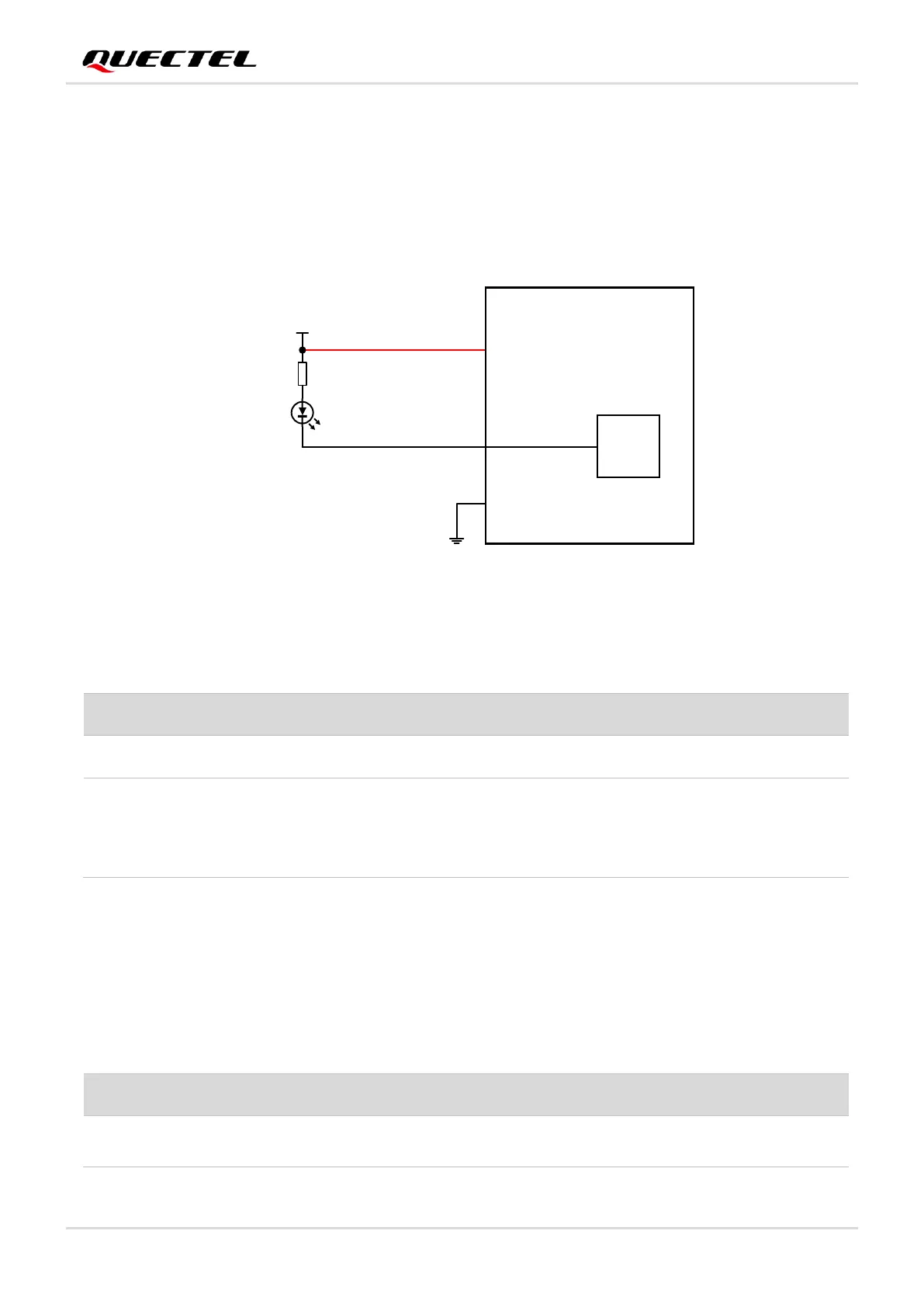

Figure 22: LED_WWAN# Reference Circuit
Table 22: Network Status Indications of LED_WWAN#
4.4.4. WAKE_ON_WAN#
The WAKE_ON_WAN# is an open drain pin, which requires a pull-up resistor on the host. When a URC
returns, a 1 s low level pulse signal will be outputted to wake up the host.
Table 23: State of the WAKE_ON_WAN#
LED_WWAN# Level
Description
Low Level (LED ON)
RF function is turned on
High Level (LED OFF)
RF function is turned off if any of the following occurs:
⚫ The (U)SIM card is not powered.
⚫ W_DISABLE1# is at low level (airplane mode enabled).
⚫ AT+CFUN=4 (RF function disabled).
WAKE_ON_WAN# State
Module Operation Status
Outputs a one-second pulse signal at low
level
Call/SMS/Data is incoming (to wake up the host)
