5G Module Series
RM520N-GL_Hardware_Design 65 / 84

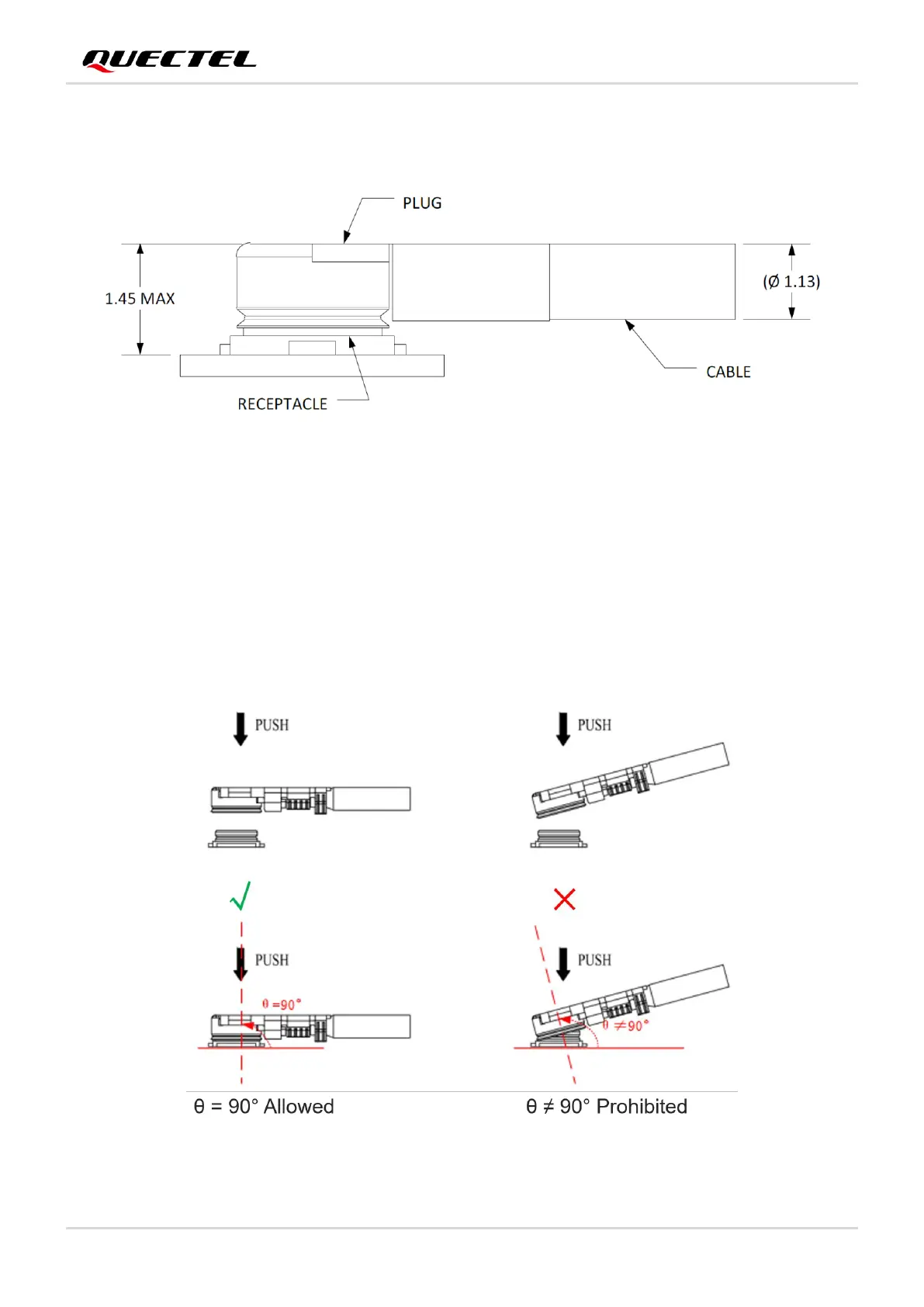

The following figure illustrates the connection between the receptacle RF connector on the module and
the mating plug using a Ø 1.13 mm coaxial cable.
Figure 29: Connection Between RF Connector and Mating Plug Using Ø 1.13 mm Coaxial Cable
5.3.4. Recommended RF Connector Installation
5.3.4.1. Assemble Coaxial Cable Plug Manually
The illustration for plugging in a coaxial cable plug is shown below, θ = 90° is acceptable, while θ 90° is
not.
Figure 30: Plug in a Coaxial Cable Plug
