5G Module Series
RM520N-GL_Hardware_Design 63 / 84

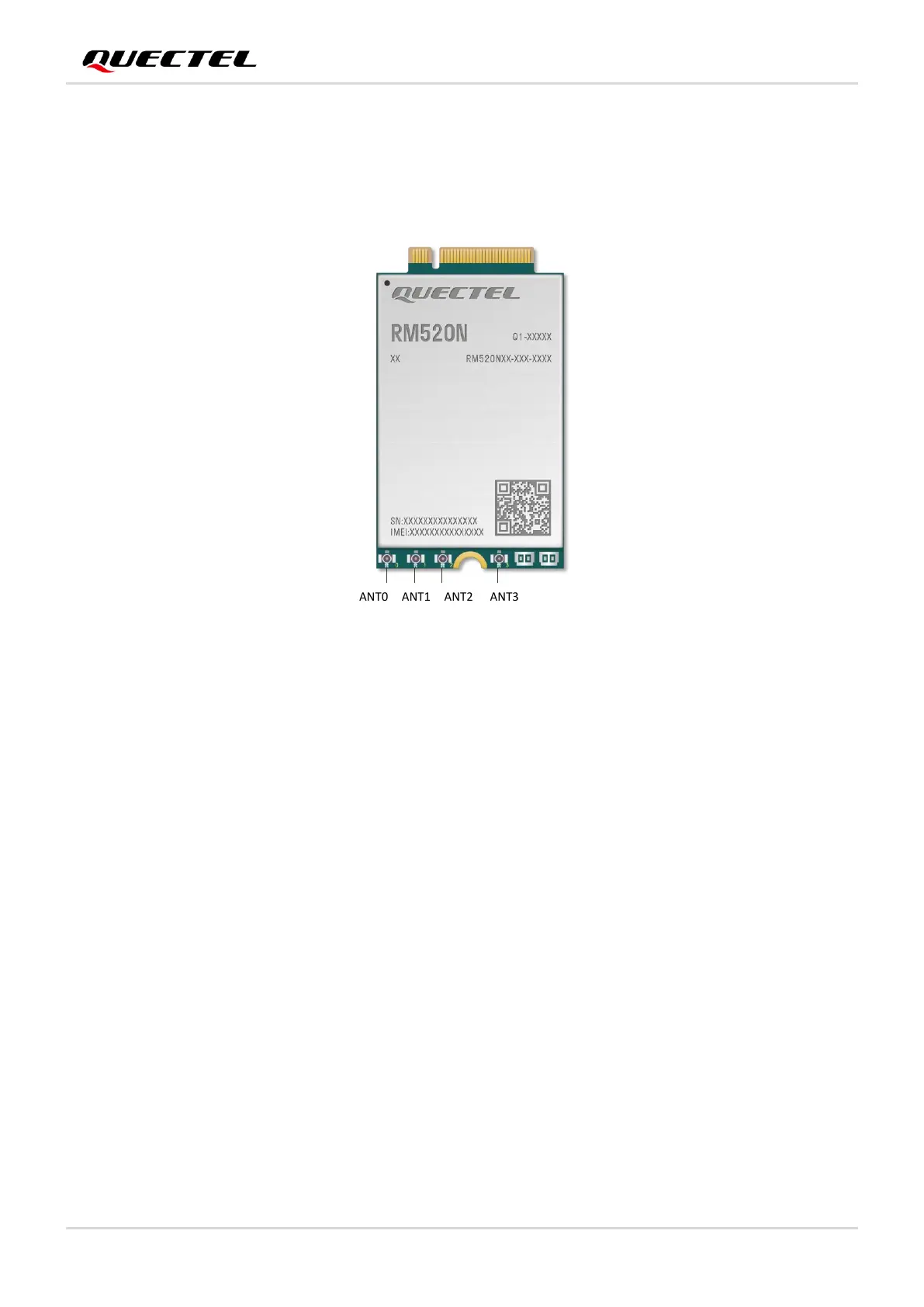

5.3.2. Antenna Connector Location
RM520N-GL has four antenna connectors each: ANT0, ANT1, ANT2 and ANT3, which are shown as
below.
Figure 26: RM520N-GL Antenna Connectors
5.3.3. Antenna Connector Installation
The receptacle RF connector used in conjunction with the module will accept two types of mating plugs
that will meet a maximum height of 1.2 mm using a Ø 0.81 mm coaxial cable or a maximum height of 1.45
mm utilizing a Ø 1.13 mm coaxial cable.
The following figure shows the specifications of mating plugs using Ø 0.81 mm coaxial cables.
