Quickie Rhythm - R-net Power Troubleshooting (Battery Voltage)

RHYTHM SERVICE MANUAL
PAGE 4.3
2009SUNRISE MEDICAL
Section 4
10. If battery voltage is not present, use a
Multimeter and measure for continuity across the
fusible links connected to positive (+) terminal of
each battery (fi g. 4.3.2). Normal resistance is
less than 1 ohm. If open, replace the defective
battery harness. Retest as necessary.
.
R-net Troubleshooting Procedures

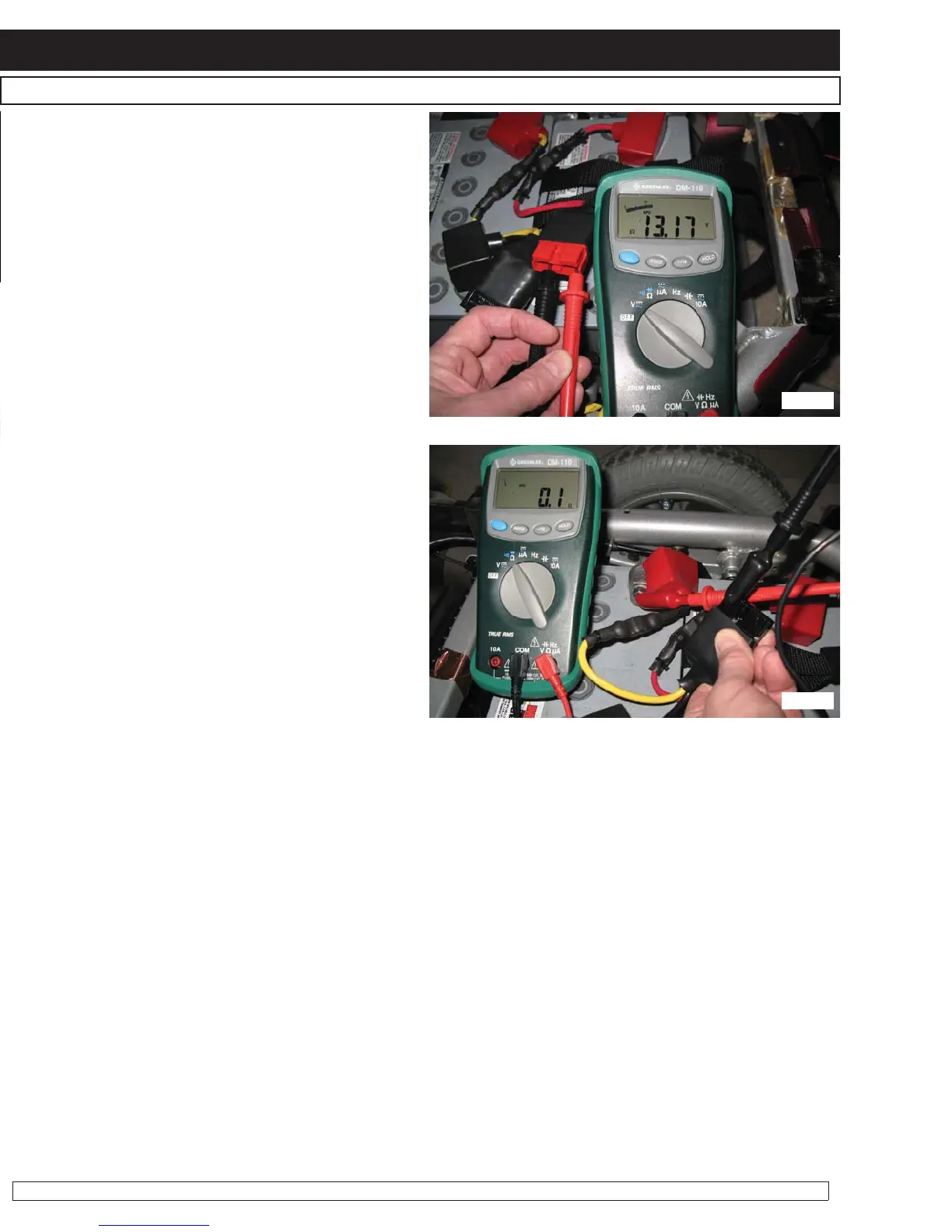

9. Verify that battery voltage is present at
each connector leading to the batteries (fi g. 4.3.1).
(Each battery should be approximately 12 volts.)
fig. 4.3.1
fig. 4.3.2
