Disconnect the 2-pin connector and measure for 7.

battery voltage on the cable leading to the base.

If battery voltage is not present at the 2-pin 8.

connector, verify that the 15-amp fuse in the

base of the wheelchair is not defective and that

the 2-pin connector near the batteries is mated

correctly. Reconnect the connectors or replace

the fuse if defective and retest.

9. If battery voltage is present at the base, check 9.

for continuity from the 2-pin connector on the

seating system leading to the 2-pin connector at

the QR-MAC.

If the 2-pin cable leading through the seating 10.

system to the QR-MAC does not indicate continuity,

trace the cable through the seating system to

locate a second 2-pin connector. Verify that this

connector is mated correctly. If not, reconnect

and retest.

If the 2-pin connector is mated correctly, disconnect 11.

it and verify continuity from the appropriate half of

the connector to the QR-MAC, and to the base

2-pin connector. Replace the cable assembly that

does not test correctly and retest.

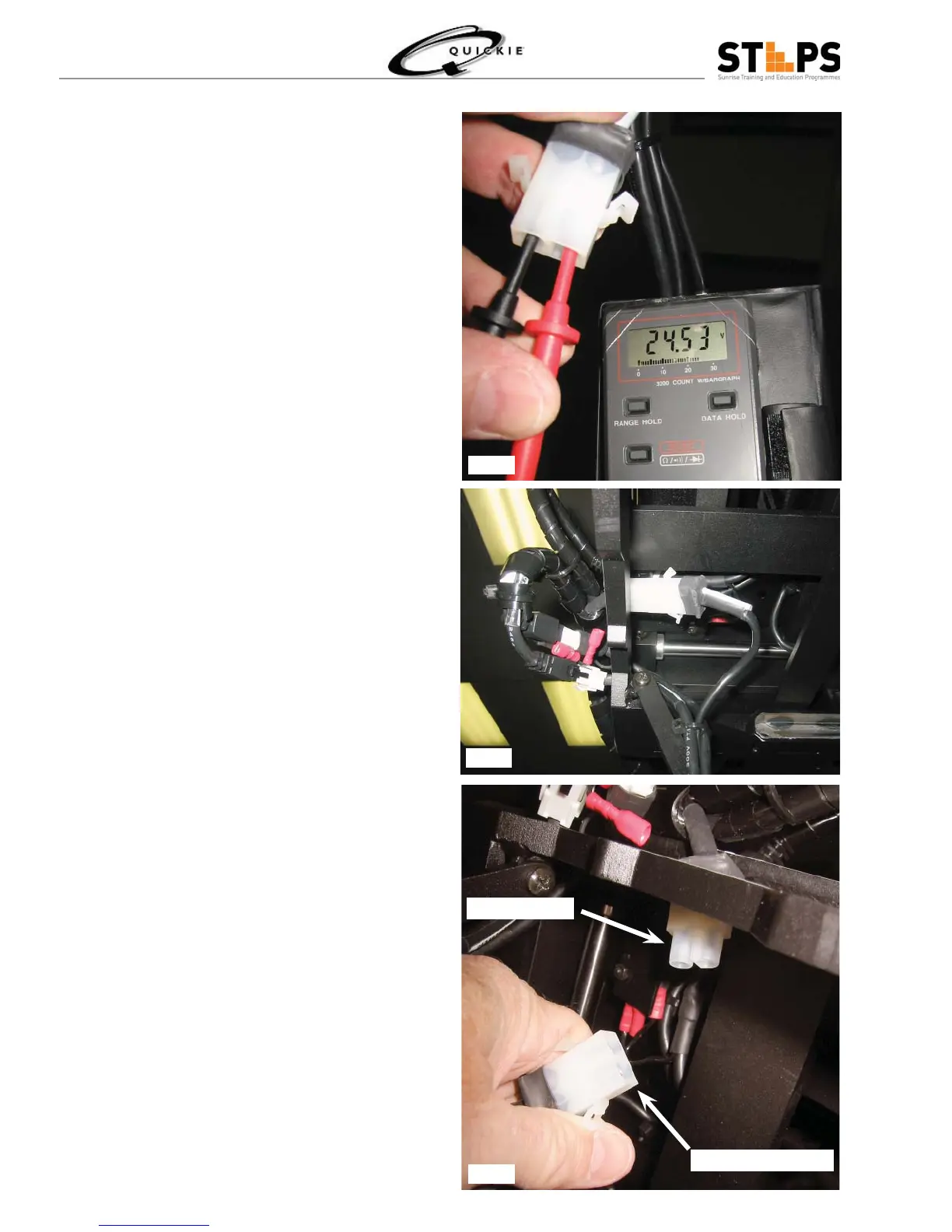

Measure to QR-MAC

Measure to Base Connector

Fig 3.67

Fig 3.68

Fig 3.69
